Seattle KOMO PoP
Evocative at KOMO Plaza
140 4th Ave North, Suite 200
Seattle WA 98109
support@evocative.com
+1 888 365-2656 (opt 3 is NOC)
+1 206 290-9206 (on-site tech)
Rack SEF.A.0F.012
Fiber Patch
SIX 10G to r2,sea.rg.net
A.OF.12.01
OCSX2.A05
MR5A.04.A05
MR5D-09.M06
SIX 1G to r1.sea.rg.net
A.OF.12.02
OCSX1.M05
MR5A.02.M05
MR5d.09.C06
SIX 1G to peering.usc.edu
A.OF.12.03
OCSX1.M06
MR5A.02.M07
MR5d.09.D06

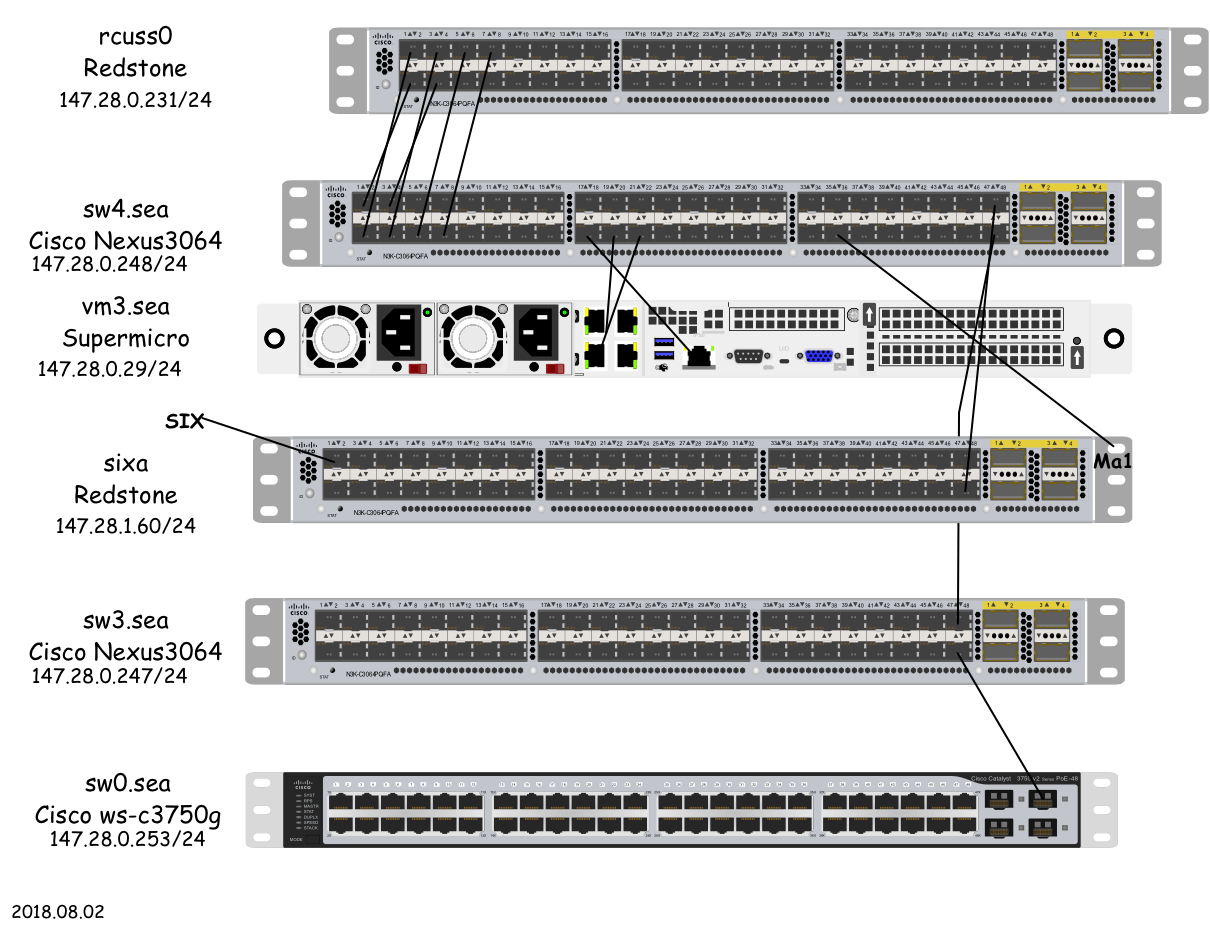

KOMO Rack
Rack SEF.A.0F.012 Physical Hosts and Wiring
| hostname | switch | ipmi | oob | oobname | pwr | rack | Model |
|---|---|---|---|---|---|---|---|
| sw4.sea.rg.net | s3.47 | 0.08 | sw4 | 3L 3R | 41 | Cisco Nexus-3064 | |
| rcuss0.rg.net | s0.23 | N/A | 0.01 | rcuss0 | 4L 4R | 40 | Redstone |
| vm3.sea.rg.net | s4.20/s4.22 | s4.18 | ???? | vm3 | 5L 5R | 39 | SuperMicro SuperServer 6019U-TRT |
| r2.sea.rg.net | s0.14 s4.36 | 0.09 | r2 | 6L 6R | 37-38 | Arrcus S9600-72XC-R q2c | |
| vm4.sea.rg.net | s4.45/s4.46 | s3.5 | 0.13 | NOOP | 9L 9R | 36 | Dell 630 |
| vm2.sea.rg.net | s0.41/s0.31 | s0.41 | 0.05 | vm2 | 10L 10R | 34-35 | SuperMicro AS-2022G-URF 2RU Chassis |
| psg.com | s0.13 | s0.19 | 0.02 | psg | 7L | 33 | (see below) |
| seattle01.mux.peering.usc.edu | s0.11 s0.38 | 0.20 | 11R | 31 | Supermicro Ethan Katz-Bassett <ethanbkb@gmail.com | ||
| vm5.sea.rg.net | s4.45/s4.46 | s0.8 | 0.13 | vm5 | 19L 19R | 30 | Dell 640 |
| sw3.sea.rg.net | s0.47 | 0.07 | sw3 | 12L 12R | 27 | Cisco Nexus-3064 | |
| sw0.sea.rg.net | s3.48 | 0.06 | sw0 | 13L | 26 | Cisco WS-C3750G-POE-48 | |
| atlas0.sea.rg.net | s0.25 | 20.5 | Atlas v0 Probe | ||||
| raid0.sea.rg.net | s0.27 | s0.03 | 0.12 | raid0 | 17L 17R | 19 | SuperMicro 5018R-WR |
| o0.sea.rg.net | s0.06 | 13R | 18 | Cyclades ACS-48 | |||
| vm0.sea.rg.net | s0.26/s0.29 | s0.39 | 0.03 | vm0 | 18R | 15 | Supermicro - w/ X7DWU |
| r0.sea.rg.net | s0.35/46 | 0.11 | r0 | 23L 23R | 7 | Cisco ASR1001 commissioned 2018.02.02 | |
| r1.sea.rg.net | s0.17 | 0.10 | r1 | 24L 24R | 5-6 | Juniper M7i | |
| pwr0.sea.rg.net | s0.12 | L | APC AP7930 | ||||
| pwr1.sea.rg.net | s0.16 | R | APC AP7930 |
Decommissioned:
| vm1.sea.rg.net | s0.34/s3.30 | s0.33 | 0.04 | NOOP | 18L | 16-17 | (see below) |
pwr0 and pwr1 MACs
| name | side | model | MAC |
|---|---|---|---|
| pwr0 | left | AP7930 | 00:C0:B7:C8:49:BC |
| pwr0 | right | AP7930 | 00:C0:B7:30:1C:16 |
100mb interfaces on sw0
- atlas probe
- o0.sea.rg.net
- four power bars
- psg.com ipmi
- peering.usc.edu ipmi
- ipmi.vm1.sea.rg.net
- ipmi.vm0.sea.rg.net
- pwr0.sea.rg.net
- pwr1.sea.rg.net
vm[0-3].sea.rg.net Ganeti Cluster
vm0.sea.rg.net:/root# ./do-stat
Node DTotal DFree MTotal MNode MFree Pinst Sinst
vm0.sea.rg.net 10.9T 7.1T 125.8G 90.4G 87.9G 9 8
vm2.sea.rg.net 5.5T 4.0T 94.4G 25.0G 79.2G 8 8
vm3.sea.rg.net 10.9T 6.9T 503.8G 317.1G 433.5G 3 1
vm4.sea.rg.net 3.6T 2.8T 251.8G 38.6G 234.8G 5 0
vm5.sea.rg.net 7.3T 3.6T 188.5G 93.9G 167.1G 11 10
Instance Primary_node Secondary_Nodes Disk/0 Memory ConfigVCPUs
adrilankha.hactrn.net vm5.sea.rg.net vm0.sea.rg.net 260.0G 4.0G 1
archive.psg.com vm5.sea.rg.net vm0.sea.rg.net 200.0G 2.0G 1
atlas9.sea.rg.net vm5.sea.rg.net 16.0G 2.0G 1
atlasvm.sea.rg.net vm5.sea.rg.net 8.0G 2.0G 1
build-u.rpki.net vm5.sea.rg.net vm2.sea.rg.net 100.0G 1.0G 1
cache0.sea.rpki.net vm2.sea.rg.net vm0.sea.rg.net 100.0G 2.0G 1
chezrandy.x0.dk vm2.sea.rg.net 300.0G 2.0G 1
dataviz.org vm0.sea.rg.net vm5.sea.rg.net 64.0G 8.0G 1
dnsexp.rg.net vm2.sea.rg.net 32.0G 1.0G 1
gogs.rg.net vm3.sea.rg.net vm2.sea.rg.net 65.0G 2.0G 1
hans.rg.net vm4.sea.rg.net vm0.sea.rg.net 251.0G 4.0G 1
hiroshima.bogus.com vm5.sea.rg.net vm0.sea.rg.net 250.0G 2.0G 1
jitsi.rg.net vm5.sea.rg.net vm0.sea.rg.net 32.0G 2.0G 1
mon1.rg.net vm0.sea.rg.net vm5.sea.rg.net 100.0G 4.0G 1
nagasaki.bogus.com vm0.sea.rg.net vm5.sea.rg.net 250.0G 4.0G 1
netsrv.sea.rg.net vm4.sea.rg.net vm5.sea.rg.net 210.0G 1.0G 1
nlring.sea.rg.net vm2.sea.rg.net vm5.sea.rg.net 32.0G 2.0G 1
okui.psg.com vm0.sea.rg.net vm5.sea.rg.net 1001.0G 1.0G 1
pfs.sea.rg.net vm3.sea.rg.net 8.0G 1.0G 1
pws0 vm5.sea.rg.net vm2.sea.rg.net 100.0G 4.0G 1
pws1 vm0.sea.rg.net vm5.sea.rg.net 500.0G 8.0G 1
r1.securerouting.org vm5.sea.rg.net vm2.sea.rg.net 100.0G 2.0G 1
rcuss-build.rg.net vm3.sea.rg.net 316.0G 64.0G 16
rip1.psg.com vm2.sea.rg.net vm5.sea.rg.net 36.0G 4.0G 1
rip.psg.com vm4.sea.rg.net vm5.sea.rg.net 32.0G 8.0G 2
sam2.rg.net vm2.sea.rg.net 100.0G 2.0G 1
shout.rg.net vm5.sea.rg.net vm2.sea.rg.net 16.0G 1.0G 1
tamias.rg.net vm0.sea.rg.net vm2.sea.rg.net 17.0G 2.0G 1
turing.sr-ix.com vm2.sea.rg.net vm3.sea.rg.net 256.0G 2.0G 1
valid.rg.net vm0.sea.rg.net vm2.sea.rg.net 200.0G 8.0G 1
vault.sea.rg.net vm4.sea.rg.net vm2.sea.rg.net 8.0G 1.0G 1
work0.psg.com vm0.sea.rg.net 200.0G 4.0G 1
xmpp.rg.net vm5.sea.rg.net vm0.sea.rg.net 33.0G 1.0G 1
zoe.dns.gh vm4.sea.rg.net vm0.sea.rg.net 32.0G 1.0G 1
zzyzx.sigpipe.org vm0.sea.rg.net vm5.sea.rg.net 100.0G 2.0G 1
BackChannel
net 10, drdb Ports for vm[0-4]
| Switch | Port | Host | Ether | IP Address |
|---|---|---|---|---|
| sw0 | 29 | vm0.sea | eth1 | 10.0.0.100 |
| sw0 | 30 | vm1.sea | eth5 | 10.0.0.101 |
| sw0 | 31 | vm2.sea | eth1 | 10.0.0.102 |
| sw4 | 22 | vm3.sea | eth1 | 10.0.0.103 |
| sw4 | 46 | vm4.sea | enp130s0f1 | 10.0.0.104 |
| sw4 | 45 | vm5.sea | enp216s0f1 | 10.0.0.105 |
Guest VMs on vm0/1/2/3.sea.rg.net / 147.28.0.14/15/16/29
gnt-instance list -o "name,pnode,snodes,be/memory,disk.size/0"
| Instance | Primary_node | Secondary_Node | MaxMem | DiskUsage | IP_Address | SysAdmin |
|---|---|---|---|---|---|---|
| adrilankha.hactrn.net | vm5.sea.rg.net | vm0.sea.rg.net | 4G | 260G | 147.28.0.19 | Rob Austein sra@hactrn.net |
| archive.psg.com | vm5.sea.rg.net | vm0.sea.rg.net | 1G | 100G | 147.28.0.8 | Randy Bush randy@psg.com |
| atlas9.sea.rg.net | vm5.sea.rg.net | 2G | 16G | 147.28.0.36 | Randy Bush randy@psg.com | |
| atlasvm.sea.rg.net | vm5.sea.rg.net | 2G | 8G | 147.28.0.33 | Randy Bush randy@psg.com | |
| bbgp.rg.net | vm2.sea.rg.net | 2G | 32G | 147.28.0.60 | Randy Bush randy@psg.com | |
| build-u.rpki.net | vm5.sea.rg.net | vm2.sea.rg.net | 1G | 100G | 147.28.0.28 | Rob Austein sra@hactrn.net |
| cache0.sea.rpki.net | vm2.sea.rg.net | vm0.sea.rg.net | 1G | 100G | 147.28.0.84 | Randy Bush randy@psg.com |
| chezrandy.x0.dk | vm2.sea.rg.net | 2G | 200G | 147.28.0.56 | Phil Regnauld pr@x0.dk | |
| dataviz.org | vm0.sea.rg.net | vm5.sea.rg.net | 8G | 64G | 147.28.0.22 | Randy Bush randy@psg.com |
| gogs.rg.net | vm3.sea.rg.net | vm2.sea.rg.net | 2G | 64G | 147.28.0.10 | Randy Bush randy@psg.com |
| hans.rg.net | vm4.sea.rg.net | vm0.sea.rg.net | 3G | 250G | 147.28.0.42 | Hans Kuhn hak@flyingpoodle.com |
| hiroshima.bogus.com | vm5.sea.rg.net | vm0.sea.rg.net | 3G | 250G | 147.28.0.82 | Hans Kuhn <hak@flyingpoodle.com |
| jitsi.rg.net | vm5.sea.rg.net | vm0.sea.rg.net | 2G | 32G | 147.28.0.50 | Randy Bush randy@psg.com |
| mon1.rg.net | vm0.sea.rg.net | vm5.sea.rg.net | 4G | 100G | 147.28.0.35 | Randy Bush randy@psg.com |
| nagasaki.bogus.com | vm0.sea.rg.net | vm5.sea.rg.net | 4G | 250G | 147.28.0.81 | Joel Jaeggli joelja@bogus.com |
| netsrv.sea.rg.net | vm4.sea.rg.net | vm5.sea.rg.net | 4G | 200G | 147.28.0.7 | Randy Bush randy@psg.com |
| nlring.sea.rg.net | vm2.sea.rg.net | vm5.sea.rg.net | 2G | 32G | 147.28.0.89 | Randy Bush randy@psg.com |
| okui.psg.com | vm0.sea.rg.net | vm5.sea.rg.net | 1G | 1001G | 147.28.0.25 | Patrick Okui pokui@psg.com |
| pfs.sea.rg.net | vm3.sea.rg.net | 1G | 8G | 147.28.0.32 | Randy Bush randy@psg.com | |
| pws0 | vm5.sea.rg.net | vm2.sea.rg.net | 4G | 100G | 147.28.0.52 | Paul Southworth pwsouth@gmail.com |
| pws1 | vm0.sea.rg.net | vm5.sea.rg.net | 8G | 500G | 147.28.0.53 | Paul Southworth pwsouth@gmail.com |
| r1.securerouting.org | vm5.sea.rg.net | vm2.sea.rg.net | 2G | 100G | 147.28.0.131 | Sam Weiler weiler@watson.org |
| rcuss-build.rg.net | vm3.sea.rg.net | 64G | 128G | 147.28.0.170 | Rob Austein sra@hactrn.net | |
| rip.psg.com | vm4.sea.rg.net | vm5.sea.rg.net | 4.0G | 32.1G | 147.28.0.39 | Randy Bush randy@psg.com |
| rip1.psg.com | vm2.sea.rg.net | vm5.sea.rg.net | 1G | 36G | 147.28.0.31 | Randy Bush randy@psg.com |
| shout.rg.net | vm5.sea.rg.net | vm2.sea.rg.net | 1G | 16G | 147.28.0.38 | Randy Bush randy@psg.com |
| tamias.rg.net | vm0.sea.rg.net | vm2.sea.rg.net | 2.0G | 17.0G | 147.28.0.80 | Randy Bush randy@psg.com |
| turing.sr-ix.com | vm2.sea.rg.net | vm3.sea.rg.net | 2G | 256G | 147.28.0.17 | Tom Jennings tom@sr-ix.com |
| valid.rg.net | vm0.sea.rg.net | vm2.sea.rg.net | 8G | 200G | 147.28.0.30 | Matthias Wählisch m.waehlisch@fu-berlin.de |
| vault.sea.rg.net | vm4.sea.rg.net | vm2.sea.rg.net | 1G | 8G | 147.28.0.2 | Randy Bush randy@psg.com |
| work0.psg.com | vm0.sea.rg.net | 4G | 100G | 147.28.0.11 | Randy Bush randy@psg.com | |
| xmpp.rg.net | vm5.sea.rg.net | vm0.sea.rg.net | 1G | 34G | 147.28.0.6 | Randy Bush randy@psg.com |
| zoe.dns.gh | vm4.sea.rg.net | vm0.sea.rg.net | 1G | 200G | 147.28.0.23 | Joel Jaeggli joelja@bogus.com |
| zzyzx.sigpipe.org | vm0.sea.rg.net | vm5.sea.rg.net | 2G | 100G | 147.28.0.13 | Michael Elkins melkins@sigpipe.org |
vm0.sea.rg.net Hardware
-
2 Intel Xeon E5-2630 V4 2.2 GHz LGA 2011 85W
-
128G Kingston ValueRAM 64GB (4 x 16GB) 288-Pin DDR4 SDRAM ECC Registered DDR4 2133 (PC4 17000) Server Memory Model KVR21R15D4K4/64
vm0.sea drives, numbered left to right
From for i in a b c d; do smartctl -a /dev/sd$i | egrep 'Model|Serial|Capacity'; done
| Bay | Model | Serial | |
|---|---|---|---|
| 0 | WD6002FFWX-68TZ4N0 | NCGW1TVV | 2016.09.24 |
| 1 | WD6002FFWX-68TZ4N0 | NCGWP5SV | 2016.09.24 |
| 2 | WD6002FFWX-68TZ4N0 | NCGWD6NV | 2016.09.24 |
| 3 | WD6002FFWX-68TZ4N0 | NCGX7MTV | 2016.09.24 |
vm2.sea.rg.net Hardware
SuperMicro AS-2022G-URF 2RU Chassis
- H8DGU-F Motherboard
- Two AMD Opteron 6320 Abu Dhabi 2.8GHz
- 64GB RAMM as two sets of Kingston 32GB (4 x 8GB) 240-Pin DDR3 SDRAM ECC Unbuffered
- 32G, two sets of two DIMMs of Crucial Crucial 16GB (2 x 8GB) 240-Pin DDR3 SDRAM ECC Unbuffered DDR3L 1600 (PC3L 12800) Server Memory Model CT2KIT102472BD160B
- LSI MegaRAID SATA/SAS 9260-8i
- Five HGST Ultrastar 7K3000 HUA723020ALA640 (0F12455) 2TB 7200 RPM 64MB Cache SATA 6.0Gb/s
vm2.sea.rg.net Disk Drives
vm2.sea.rg.net:/home/randy# megacli -PDList -aALL | egrep '(Slot|^Device Id:|Inquiry)'
Slot Number: 0
Device Id: 11
Inquiry Data: WD-WCC6N3FVKC2SWDC WD2002FFSX-68PF8N0 81.00A81
Slot Number: 1
Device Id: 10
Inquiry Data: MK0251YGKB56HAHitachi HUA723020ALA640 MK7OAA10
Slot Number: 2
Device Id: 9
Inquiry Data: MK0251YGKB4N2AHitachi HUA723020ALA640 MK7OAA10
Slot Number: 3
Device Id: 8
Inquiry Data: MK0251YGKB58LAHitachi HUA723020ALA640 MK7OAA10
Slot Number: 4
Device Id: 12
Inquiry Data: MJ1311YNG6XEVAHitachi HDS5C3030ALA630 MEAOA5C0
vm2.sea.rg.net:/home/randy# smartctl -a -d sat+megaraid,11 /dev/sda
smartctl 6.6 2016-05-31 r4324 [x86_64-linux-4.9.0-13-amd64] (local build)
Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Device Model: WDC WD2002FFSX-68PF8N0
Serial Number: WD-WCC6N3FVKC2S
LU WWN Device Id: 5 0014ee 2687b471f
Firmware Version: 81.00A81
User Capacity: 2,000,398,934,016 bytes [2.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: Not in smartctl database [for details use: -P showall]
ATA Version is: ACS-3 T13/2161-D revision 5
SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Thu Aug 19 20:46:26 2021 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
| LUN | Serial | Model | Size |
|---|---|---|---|
| 0 | WCC6N3FVKC2S | WD2002FFSX-68PF8N0 | 1.818 TB |
| 1 | MK0251YGKB56HA | MK7OAA10 | 1.818 TB |
| 2 | MK0251YGKB4N2A | MK7OAA10 | 1.818 TB |
| 3 | MK0251YGKB58LA | MK7OAA10 | 1.818 TB |
| 4 | MJ1311YNG6XEVA | MEAOA5C0 | 2.728 TB |
2021.08.19 LUN0 drive MK0171YFK3TVGA removed
vm3.sea.rg.net Hardware
SuperMicro SuperServer 6019U-TRT
- X10DRW-iT Motherboard
- Two Intel Ten Core 2.4Ghz Xeon 25MB cache 8.0GT/s QPI (90W) (E5-2640v4)
- 128G RAM - 8x16GB DDR4 2400Mhz 19200 ECC/REG
- Four HGST 6TB Enterprise SATA3 6Gb/s 7200RPM 128MB
vm3.sea drives, we guess numbered left to right
From for i in a b c d; do smartctl -a /dev/sd$i | egrep 'Model|Serial|Capacity'; done
| Bay | Model | Serial | Capacity | Installed |
|---|---|---|---|---|
| 0 | HGST HUS726060ALE610 | K1J48AGD | 6TB | 2017.08.17 |
| 1 | HGST HUS726060ALE610 | K1J2PTND | 6TB | 2017.08.17 |
| 2 | HGST HUS726060ALE610 | K8J6HV2N | 6TB | 2022.09.15 |
| 3 | HGST HUS726060ALE610 | K1J46RHD | 6TB | 2017.08.17 |
replaced: | 2 | HGST HUS726060ALA640 | AR11001EV17LLB | 6TB | 2022.09.15 |
for i in b c d e; do echo $i; smartctl -a /dev/sd$i | egrep '(^Serial|Extended)'; done
vm4.sea.rg.net Hardware
- Dell Poweredge R630 Server 2xE5-2640V4 10-core 2.4GHz, 256GB RAM, H730
- Service tag: 6TL7MN2
- Express Service Code 14849840990
- How to configure the DELL PERC H700/H710/H730/H730P RAID controller
| Bay | Model | Serial | Capacity | Installed |
|---|---|---|---|---|
| a | Samsung SSD 870 EVO 2TB | S6PNNL0T909370N | 2TB | 22.11.18 |
| b | Samsung SSD 870 EVO 2TB | S6PNNL0T909374Z | 2TB | 22.11.18 |
| c | Samsung SSD 870 EVO 2TB | S6PNNL0T708760T | 2TB | 22.11.18 |
| d | Samsung SSD 870 EVO 2TB | S6PNNL0T906382W | 2TB | 22.11.18 |
vm5.sea.rg.net (vm1 Replacement)
- Dell Poweredge R640 server
- Service Tag: CQPCHQ2
- 2x 10-Core 2.20 GHz Intel CPU's Installed (Silver 4114)
- 192GB DDR4 (6x32GB) memory installed
- H730P Mini RAID controller.
- 4 x Samsung 4TB EVO 870 SSDs
- 2x power supplies, 750W each, 100-240V
- 4x Gigabit RJ45 NIC network ports
TODO:
configure o0.sea
vm5 Disks
for i in a b c d; do echo $i; smartctl -a /dev/sd$i | egrep '(^Serial|Model)'; done
| Bay | Model | Serial | Capacity | Installed |
|---|---|---|---|---|
| a | Samsung SSD 870 EVO 4TB | S6PJNS0W307070P | 4TB | 23.05.21 |
| b | Samsung SSD 870 EVO 4TB | S6PJNS0W307067B | 4TB | 23.05.21 |
| c | Samsung SSD 870 EVO 4TB | S6PJNS0W307069T | 4TB | 23.05.21 |
| d | Samsung SSD 870 EVO 4TB | S6PJNS0W307064R | 4TB | 23.05.21 |
psg.com
SUPERMICRO AS-1012G-MTF 1U Rackmount H8SGL-F mobo
From for i in 0 1 2 3 4; do smartctl -a /dev/ada$i | egrep 'Model|Serial|Capacity'; done
| LUN | Model | Serial | Size |
|---|---|---|---|
| 0 | WDC WD2000F9YZ-09N20L0 | WD-WCC1P0469969 | 2TB |
| 1 | WDC WD2005FBYZ-01YCBB1 | WD-WMC6N0F1F8SD | 2TB |
WDC WD2000F9YZ-09N20L0 WD-WCC1P0648270 removed from ata1 2017.04.09
WD-WCC1P0654846 replaced on 2017.03.04
raid0.sea.rg.net
- 5018R-WR Chassis + MoBo
- X10SRW-F Motherboard
- Intel Xeon® Processor E5-2609 v4
- Samsung DDR4 2133MHzCL15 16GB RegECC 2Rx4 (PC4 2133) Internal Memory M393A2G40DB0-CPB
- FreeBSD USB key left in USB port
raid0.sea.rg.net Drive Bays
From for i in {0..3}; do smartctl -a /dev/ada$i | egrep 'Model|Serial|Capacity'; done
| LUN | Model | Serial | Capacity | Date |
|---|---|---|---|---|
| 0 | WDC WD60EFRX-68L0BN1 | WD-WX41DA5F88N9 | 6tb | 2018.12.09 |
| 1 | WDC WD60EFRX-68L0BN1 | WD-WX11D363T2Y5 | 6tb | 2018.12.09 |
| 2 | WDC WD60EFRX-68L0BN1 | WD-WX11D3678XTL | 6tb | 2018.12.09 |
| 3 | WDC WD60EFRX-68L0BN1 | WD-WX41D75LN9KC | 6tb | 2018.12.09 |
Switches
| name | mfr | model | ip sddress |
|---|---|---|---|
| sw0.sea.rg.net | Cisco | WS-C3750G-48PS | 147.28.0.253 |
| sw3.sea.rg.net | Cisco | Nexus3064 48x10GE +4 | 147.28.0.239 |
| sw4.sea.rg.net | Cisco | Nexus3064 48x10GE +4 | 147.28.0.238 |
Removed
| sw1.sea.rg.net | SMC | SMC8024L2 | 147.28.0.252 |
|---|---|---|---|
| sw2.sea.rg.net | Cisco | WS-C3750G-24PS | 147.28.0.246 |
Miscelaneous Data
Spare Drives
| spares in westin | |||
| HGST | H3D30003254S | YNG1E3ZC | 3TB |
| Seagate | ST31000528AS | 6VPCVN1Y | 1TB |
| Seagate | ST3750640A8 | 3QD06D5B | 750G |
| HGST | 118032816 | YFJLBZ5A | 2TB |
r1.sea gigether pic left to right
| port | to | medium |
|---|---|---|
| ge-0/0/0 | LAN | copper |
| ge-0/0/1 | six | fiber sfp |
| unused | copper sfp | |
| unused |
Router Topology
[
]
New Switching
[
]
Old Lunavi Info
Lunavi 2001 6th Avenue, Suite 2402 Seattle, WA 98121 Lunavi Support support@lunavi.com 206 777 9988 24x7@ccom.net 206-854-3444 and 206-353-5558
2023.07.11
