Ashburn DC2 PoP

Sandbox, cage 2020, rack 102
c/o Equinix DC2
21715 Filigree Ct
Ashburn, VA 20147
noc@equinix.com (or ask ERC support@equinix.com folk to escalate to
                 primary on-call NSE)
+1 888 892 0607 equinix 24x7
+1 650 861 2531 louie lee mobile
+1 408 829 6464 lane patterson mobile

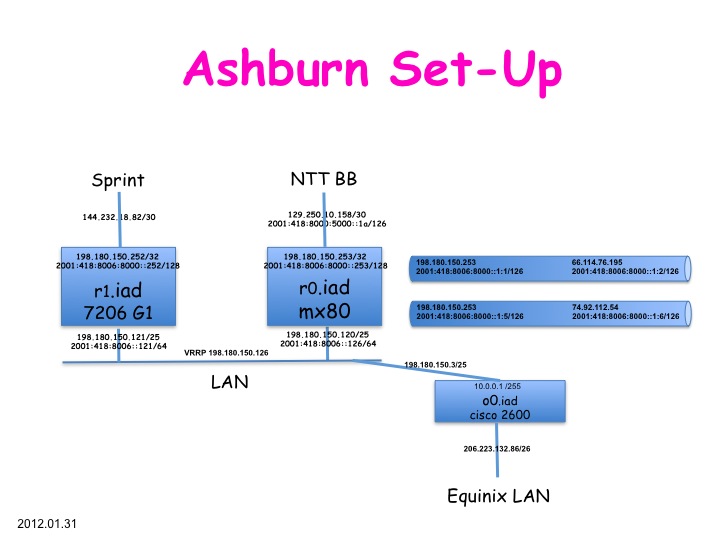

PoP Diagram

[120131.ashburn.jpg]

Rack Physical and Wiring

hostname switch oob oobname pwr RU
r0.iad.rg.net s0.f21 o0.33 r0 equinix 7-8 Juniper MX80
r1.iad.rg.net s0.f23 o0.34 r1 equinix Cisco 7206-G1
r2.iad.rg.net s0.f23 o0.34 r1 0.5 & Strip 9-10 ASR
o0.iad.rg.net s0.01/02
cypress.shrubbery.net s0.03 & s0.13 o0.35 cypress 0.4 decommissioned 2019.09.20
sw0.iad.rg.net o0.37 s0 Cisco C3750
vm1.iad.rg.net s0.06 o0.38 srv0 0.3
emu.machshav.com s0.08 o0.40 emu 0.2
emu-2.machshav.com s0.09/10
vm0.iad.rg.net s0.02 o0.10 vm0
vm0-ipmi.iad.rg.net s0.14
akkht.hactrn.net Eth0 s0.11 o0.11 sra 0.1
akkht.hactrn.net DRAC s0.12
pwr0.iad.rg.net o0.38 pwr0 equinix

Hosts on vm0/1.iad.rg.net / 198.180.150.8/4

Hostname IP Address Owner and Email
bozanicfamily.com 198.180.150.5 Randy Bush randy@psg.com
khatovar.hactrn.net 198.180.150.30 Rob Austein sra@hactrn.net
m2.macshav.com 198.180.150.45 Steven M Bellovin smb@cs.columbia.edu
mail.rg.net 198.180.150.2 Randy Bush randy@psg.com
netsrv.iad.rg.net 198.180.150.13 Randy Bush randy@psg.com
pfs0.iad.rg.net 198.180.150.3 Randy Bush randy@psg.com
ran.psg.com 198.180.150.18 Randy Bush randy@psg.com
rgnet.anycast.censurfridns.dk 198.180.150.12 Phil Regnauld pr@x0.dk
srv0.iad.rg.net 198.180.150.1 Randy Bush randy@psg.com
tor0.iad.rg.net 198.180.150.9 Randy Bush randy@psg.com
usbeacon2.iibex.auckland.ac.nz 198.180.150.52 Etuate Cocker ecoc005@aucklanduni.ac.nz

vm0.iad.rg.net Hardware

vm0.iad.rg.net Disk Configuration

vm0.iad.rg.net:/root# tw_cli info

Ctl   Model        (V)Ports  Drives   Units   NotOpt  RRate   VRate  BBU
------------------------------------------------------------------------
c4    9750-4i      4         4        1       0       1       1      -

vm0.iad.rg.net:/home/randy# tw_cli info c0

Unit  UnitType  Status         %RCmpl  %V/I/M  Stripe  Size(GB)  Cache  AVrfy
------------------------------------------------------------------------------
u0    RAID-5    OK             -       -       256K    8381.87   RiW    ON

VPort Status         Unit Size      Type  Phy Encl-Slot    Model
------------------------------------------------------------------------------
p0    OK             u0   3.63 TB   SATA  0   -            WDC WD4002FYYZ-01B7
p1    OK             u0   2.73 TB   SATA  1   -            WDC WD3000FYYZ-01UL
p2    OK             u0   2.73 TB   SATA  2   -            WDC WD3000FYYZ-01UL
p3    OK             u0   2.73 TB   SATA  3   -            HITACHI HUA723030AL

vm0.iad.rg.net Disk Drive Serial Numbers

From smartctl --all -s on -T verypermissive --device=3ware,$i /dev/twl0 smartctl --all --device=3ware,$i /dev/twl0

Unit Model Serial
0 WD4002FYYZ-01B7CB1 K7G9TG6L
1 WD3000FYYZ-01UL1B0 WD-WCC130121922
2 WD3000FYYZ-01UL1B0 WD-WCC130095709
3 HITACHI HUA723030ALA640 YVHPV0LA

vm1.iad.rg.net Hardware

SuperMicro AS-1022G-URF 2RU Chassis

vm1.iad.rg.net Disk Drives

From megacli -PDList -aALL | egrep 'Coerced|Inquiry'

LUN Serial Model Size
0 WD-WMC130D9JJJZWDC WD3000FYYZ-01UL1B2 2.728 TB
1 WD-WMC130D1CT76WDC WD3000FYYZ-01UL1B2 2.728 TB
2 WD-WMC130D2MZFVWDC WD3000FYYZ-01UL1B2 2.728 TB
3 WD-WMC130D2MZFVWDC WD3000FYYZ-01UL1B2 2.728 TB

PDU

BayTech RPC is accessed via serial from o0.iad.rg.net as pwr0
You will face RPC> prompt.  Type
  CONFIG
  ON x
  OFF x
  REBOOT x

1)...akkht.hactrn.net
2)...emu.machshav.com
3)...srv0.iad.rg.net
4)...cypress.shrubber
5)...sw0.iad.rg.net
6)...vm0.iad.rg.net

2020.07.25
