Ashburn DC2 PoP
Sandbox, cage 2020, rack 102
c/o Equinix DC2
21715 Filigree Ct
Ashburn, VA 20147
noc@equinix.com (or ask ERC support@equinix.com folk to escalate to
primary on-call NSE)
+1 888 892 0607 equinix 24x7
CURRENT CONTACTS LIST: (2022-05-13)
Muhammad Waqas Bin Tariq <mwaqas@equinix.com>
Bheem Lal Nethikar <bnethikar@equinix.com> 571 232 7728

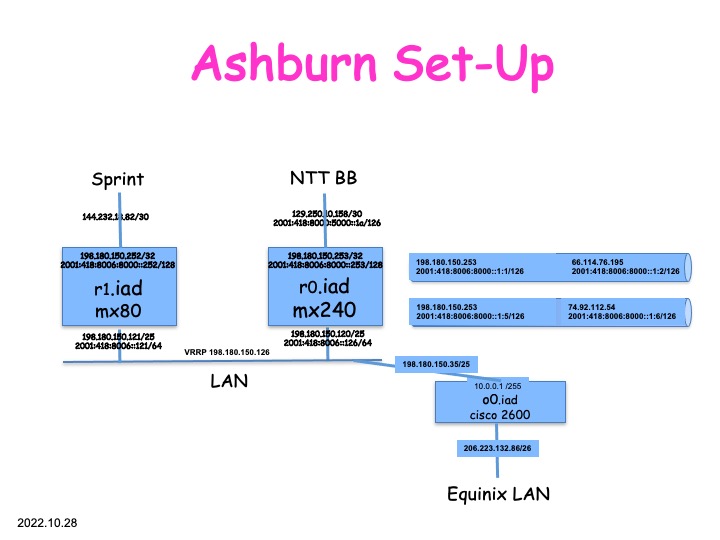

PoP Diagram
To Do
- connect route views transit
Circuits
SprintLink
-
sl-mst50-ash2, ge-0/0/9 is wired to 204/4/29 with translates to Equinix panel name DC4:01:041210: CP:0204:137587 Ports 27/28. Equinix made the XC between our CFA in our cage and PSG's CFA in their cage. There in no MMR involved in the path. 2024.05.30 Jeffrey Kerrick jkerrick@cogentco.com
-
sl-mst50-ash2, ge-0/0/9, (To PSG peer (AS3927) CCOI: PEER PRIVATE GIGE ^psg-3927-ash2^) 2024.05.30 from BC,
-
port 17-18 in the Ashburn cage 1490
-
A-Side Patch Panel/Module/Port: PP:0103:25916||9
-
Z-Side Customer and Cage Number: SPRINT DC2::01490:SPRINT
-
Z-Side Cabinet Number: 0102
-
Carrier Circuit ID(if applicable): Randy Bush
-
Z-Side Patch Panel/Module/Port: PP:0102:605||17
-
Cable ID: 792604 should be used to reference that patch cable
Cogent
- GigabitEthernet0/2/1/8.rcr22.iad01
- description CUST-W GIGE ^RGnet LLC^ ID:3-001717104 PT:3-001717104
- ipv4 address 38.88.248.236 255.255.255.254
- ipv6 address 2001:550:2:1::22/127
o0.iad
- o0 IP into Equinix Management Network
- port 20 of Louie's 3Com switch in the next cabinet over
- o0.iad.rg.net: 206.223.132.86/26
- gateway: 206.223.132.65
Route Views
- Circuit ID 20438058 in cage 2020 is Route Views to IX
Equipment
- sw0 is a Cisco WS-C3750G-24PS
- o0 is a Cisco 2621 (MPC860) processor (revision 0x102) w/ 61440K/4096K
- r0 is a Juniper MX240 for the moment on loan from warren
- r1 is a Juniper Mx80 gift from IETF
- Equinix Power Strip aka Leviton
- photo from 2020.02.18
r0.iad.rg.net Juniper MX240 from warren
randy@r0.iad> show chassis hardware
Hardware inventory:
Item Version Part number Serial number Description
Chassis JN11544AFAFC MX240
Midplane REV 07 760-021404 ABAA3443 MX240 Backplane
FPM Board REV 03 760-021392 ABBA1738 Front Panel Display
PEM 0 Rev 01 740-022697 QCS0931C044 PS 1.2-1.7kW; 100-240V AC in
PEM 2 Rev 03 740-022697 QCS1243C071 PS 1.2-1.7kW; 100-240V AC in
Routing Engine 0 REV 07 740-015113 9009006841 RE-S-1300
CB 0 REV 05 710-021523 ABBA1993 MX SCB
FPC 2 REV 16 750-022765 XM0320 DPCE 20x 1GE + 2x 10GE R
CPU REV 03 710-022351 XM4341 DPC PMB
PIC 0 BUILTIN BUILTIN 10x 1GE(LAN)
Xcvr 0 REV 01 740-011613 PFF29VR SFP-SX
Xcvr 9 REV 02 740-011613 PGP5559 SFP-SX
PIC 1 BUILTIN BUILTIN 10x 1GE(LAN)
PIC 2 BUILTIN BUILTIN 1x 10GE(LAN/WAN)
PIC 3 BUILTIN BUILTIN 1x 10GE(LAN/WAN)
Fan Tray 0 REV 01 710-021113 XB1539 MX240 Fan Tray
r1.iad.rg.net Juniper MX80 from IETF
randy@r1.iad> show chassis hardware
Hardware inventory:
Item Version Part number Serial number Description
Chassis E4642 MX80
Midplane REV 06 711-031594 YP5258 MX80
PEM 0 Rev 04 740-028288 UH01164 AC Power Entry Module
PEM 1 Rev 04 740-028288 WF04755 AC Power Entry Module
Routing Engine BUILTIN BUILTIN Routing Engine
TFEB 0 BUILTIN BUILTIN Forwarding Engine Processor
QXM 0 REV 05 711-028408 YL0286 MPC QXM
FPC 0 BUILTIN BUILTIN MPC BUILTIN
MIC 0 BUILTIN BUILTIN 4x 10GE XFP
PIC 0 BUILTIN BUILTIN 4x 10GE XFP
FPC 1 BUILTIN BUILTIN MPC BUILTIN
MIC 0 REV 22 750-028392 YJ7317 3D 20x 1GE(LAN) SFP
PIC 0 BUILTIN BUILTIN 10x 1GE(LAN) SFP
Xcvr 0 REV 01 740-011614 PJ717AP SFP-LX10
Xcvr 1 REV 01 740-031850 G1908083802 SFP-LX10
PIC 1 BUILTIN BUILTIN 10x 1GE(LAN) SFP
Fan Tray Fan Tray
Rack Physical and Wiring
| hostname | switch | oob | oobname | pwr | RU | |
|---|---|---|---|---|---|---|
| r1.iad.rg.net | s0.28 | o0.36 | r1 | 0.1 1.1 | 9-10 | Juniper MX80 |
| r0.iad.rg.net | s0.21 s0.12 | o0.33 | r0 | equinix | 7-8 | Juniper MX240 (warren) |
| fiber patch panel | 5-6 | (equinix) | ||||
| vm0.iad.rg.net | s0.02 s0.14 | o0.XX | vm0 | 0.6 | 3 | SuperMicro SYS-6016T-URF |
| o0.iad.rg.net | s0.01/02 | vm2.usb | 1.6 | Cisco 2621 (MPC860) | ||
| sw0.iad.rg.net | o0.37 | s0 | 0.5 | Cisco WS-C3750G-24PS | ||
| vm1.iad.rg.net | s0.06 | o0.38 | srv0 | 0.3 | SuperMicro AS-1022G-URF | |
| pwr0.iad.rg.net | o0.41 | pwr0 | equinix | BayTech RPC | ||
| pwr1.iad.rg.net | o0.43 | pwr1 | equinix | BayTech RPC | ||
| vm2.iad.rg.net | s0.07 sw0.13 | o0.35 | vm2 | 0.4 1.2 | Dell R630 GLY2W52 |
Removed
| hostname | switch | oob | oobname | pwr | RU | |
|---|---|---|---|---|---|---|
| cypress.shrubbery.net | s0.03 & s0.13 | o0.35 | cypress | 0.4 | removed 2022.08.28 | |
| akkht.hactrn.net Eth0 | s0.11 | o0.11 | sra | 0.1 | 2 | removed 2022.08.28 |
| akkht.hactrn.net DRAC | s0.12 | 2 | removed 2022.08.28 | |||
| r1.iad.rg.net | s0.23 | o0.34 | r1 | equinix | Cisco 7206-G1 | |
| emu.machshav.com | s0.08 | o0.40 | emu | 0.2 | Steven M Bellovin <smb@cs.columbia.edu> | |
| emu-2.machshav.com | s0.09/10 | Steven M Bellovin <smb@cs.columbia.edu> |
Ethernet Ports
| hostname | main ether | ipmi | drbd |
|---|---|---|---|
| vm0.iad.rg.net | sw0.02 | sw0.14 | sw0.15 |
| vm1.iad.rg.net | sw0.06 | --- | sw0.16 |
| vm2.iad.rg.net | sw0.07 | sw0.13 | sw0.17 |
Hosts on vm0/2.iad.rg.net / 198.180.150.8/10
vm0.iad.rg.net:/root# ./do-stat
Node DTotal DFree MTotal MNode MFree Pinst Sinst
vm0.iad.rg.net 8.2T 7.2T 78.6G 23.6G 61.7G 7 9
vm2.iad.rg.net 3.6T 2.0T 188.8G 26.8G 161.2G 10 4
Instance Primary_node Secondary_Nodes Disk/0 Memory CPUs
bbgp.rg.net vm0.iad.rg.net vm2.iad.rg.net 32.0G 2.0G 1
bbte.rg.net vm2.iad.rg.net vm0.iad.rg.net 32.0G 4.0G 4
bozanicfamily.com vm2.iad.rg.net vm0.iad.rg.net 34.0G 1.0G 1
khatovar.hactrn.net vm0.iad.rg.net vm2.iad.rg.net 250.0G 4.0G 1
m2.machshav.com vm2.iad.rg.net vm0.iad.rg.net 125.0G 8.0G 1
netsrv.iad.rg.net vm0.iad.rg.net vm2.iad.rg.net 32.0G 2.0G 1
ns1.machshav.com vm2.iad.rg.net vm0.iad.rg.net 32.0G 2.0G 1
pfs0.iad.rg.net vm2.iad.rg.net vm0.iad.rg.net 8.0G 512M 1
pfs.iad.rg.net vm2.iad.rg.net vm0.iad.rg.net 8.0G 1.0G 1
prox.rg.net vm0.iad.rg.net 64.0G 8.0G 4
r2.iad.rg.net vm0.iad.rg.net 32.0G 4.0G 4
ran.psg.com vm0.iad.rg.net 32.0G - 1
rgnet.anycast.censurfridns.dk vm2.iad.rg.net vm0.iad.rg.net 50.0G 6.0G 2
sox.rg.net vm2.iad.rg.net 64.0G 8.0G 4
srv0.iad.rg.net vm2.iad.rg.net vm0.iad.rg.net 64.0G 2.0G 1
tor0.iad.rg.net vm2.iad.rg.net vm0.iad.rg.net 36.0G 4.0G 3
usbeacon2.iibex.auckland.ac.nz vm0.iad.rg.net vm2.iad.rg.net 36.0G 1.0G 1
| Hostname | IP Address | Owner and Email |
|---|---|---|
| bbgp.rg.net | 198.180.150.15 | Randy Bush <randy@psg.com> |
| bbte.rg.net | 198.180.150.60 | Randy Bush <randy@psg.com> |
| bozanicfamily.com | 198.180.150.5 | Randy Bush <randy@psg.com> |
| khatovar.hactrn.net | 198.180.150.30 | Rob Austein <sra@hactrn.net> |
| m2.macshav.com | 198.180.150.45 | Steven M Bellovin <smb@cs.columbia.edu> |
| netsrv.iad.rg.net | 198.180.150.13 | Randy Bush <randy@psg.com> |
| ns1.machshav.com | 198.180.150.41 | Steven M Bellovin <smb@cs.columbia.edu> |
| pfs0.iad.rg.net | 198.180.150.3 | Randy Bush <randy@psg.com> |
| pfs.iad.rg.net | 198.180.150.6 | Randy Bush <randy@psg.com> |
| prox.rg.net | 198.180.150.53 | Randy Bush <randy@psg.com> |
| r2.iad.rg.net | 198.180.150.122 | Randy Bush <randy@psg.com> |
| ran.psg.com | 198.180.150.18 | Randy Bush <randy@psg.com> |
| rgnet.anycast.censurfridns.dk | 198.180.150.12 | Phil Regnauld <pr@x0.dk> |
| srv0.iad.rg.net | 198.180.150.1 | Randy Bush <randy@psg.com> |
| sox.rg.net | 198.180.150.55 | Randy Bush <randy@psg.com> |
| tor0.iad.rg.net | 198.180.150.9 | Randy Bush <randy@psg.com> |
| usbeacon2.iibex.auckland.ac.nz | 198.180.150.52 | Etuate Cocker <ecoc005@aucklanduni.ac.nz> |
vm0.iad.rg.net Hardware
- Supermicro SYS-6016T-URF with X8DTU-F mobo
- Power-A&B - UL24-3#24
vm0.iad.rg.net Disk Configuration
vm0.iad.rg.net:/root# tw_cli info c0
Unit UnitType Status %RCmpl %V/I/M Stripe Size(GB) Cache AVrfy
------------------------------------------------------------------------------
u0 RAID-5 OK - - 256K 8381.87 RiW ON
VPort Status Unit Size Type Phy Encl-Slot Model
------------------------------------------------------------------------------
p0 OK u0 3.63 TB SATA 0 - WDC WD4003FRYZ-01F0
p1 OK u0 3.63 TB SATA 1 - WDC WD4003FRYZ-01F0
p2 OK u0 3.63 TB SATA 2 - WDC WD4003FRYZ-01F0
p3 OK u0 2.73 TB SATA 3 - HITACHI HUA723030AL
Four drive bays seem to be numbered 0-3 left to right
vm0.iad.rg.net Disk Drive Serial Numbers
From sudo smartctl -a -d 3ware,$i /dev/twl0
| Unit | Model | Serial | |
|---|---|---|---|
| 0 | WD4003FRYZ-01F0DB0 | VBHVEUTF | new as of 2023.05.17 |
| 1 | WD4003FRYZ-01F0DB0 | V1JVGGHG | |
| 2 | WD4003FRYZ-01F0DB0 | V1KW63UG | new as of 2023.08.09 |
| 3 | HITACHI HUA723030ALA640 | YVHPV0LA |
- 2023.05.17 replaced p0 K7G9TG6L with VBHVEUTF
- 2022.05.18 replaced p1 WDC WD3000FYYZ-01UL serial WD-WCC130121922
- 2023.08.09 replaced p2 WD3000FYYZ-01UL1B0 WD-WCC130095709
vm2.iad.rg.net Hardware
- Dell R630 GLY2W52 express code 36155548982
- iDRAC8, no KVM :(
- iDRAC tools - racadm tools for DRAC8 download the latest here. use
racadm getsysinfo - Link for how to download in the future
- Documentation for racadm
- Part number from Dell for iDRAC8 license is 385-BBHP
- How to import and export a license with iDRAC7 or iDRAC8
- 3ware Inc 9750 Controller
vm2.iad Disk Drives
for i in a b c d; do echo $i; smartctl -a /dev/sd$i | egrep '^(Device Model|Serial)' | cut -c 19-60; done
| LUN | Serial | Model | Size |
|---|---|---|---|
| a | S6PNNS0T602439V | Samsung SSD 870 EVO | 2TB |
| b | S6PNNS0T602496T | Samsung SSD 870 EVO | 2TB |
| c | S6PNNS0T604993A | Samsung SSD 870 EVO | 2TB |
| d | S6PNNS0T604995Z | Samsung SSD 870 EVO | 2TB |
PDUs
BayTech RPC is accessed via serial from o0.iad.rg.net as pwr0/1
You will face RPC> prompt. Type
CONFIG
ON x
OFF x
REBOOT x
pwr0.iad.rg.net
1)...r1.iad-left
2)...unused
3)...vm1.iad.rg.net
4)...vm2.iad.rg.net
5)...sw0.iad.rg.net
6)...vm0.iad.rg.net
pwr1.iad.rg.net
1)...r1.iad-right
2)...vm2.iad.rg.net
3)...unused
4)...unused
5)...vm0.iad.rg.net
6)...o0.iad
vm1.iad.rg.net Hardware DECOMMISSIONED
SuperMicro AS-1022G-URF 2RU Chassis
- H8DGU-F Motherboard
- Two 12-core AMD Opteron 6344 Abu Dhabi 2.6GHz
- Crucial 128G 8 x 16GB 240-Pin DDR3 SDRAM ECC Registered DDR3 1600 (PC3 12800) Server Memory
- LSI MegaRAID SATA/SAS 9260-4i 6Gb/s PCI-Express 2.0
- Four Western Digital RE WD3000FYYZ 3TB 7200 RPM 64MB Cache SA T A 6.0Gb/s 3.5" Enterprise Internal Hard Drives
vm1.iad.rg.net Disk Drives
From megacli -PDList -aALL | egrep 'Coerced|Inquiry'
| LUN | Serial | Model | Size |
|---|---|---|---|
| 0 | WD-WMC130D9JJJZWDC | WD3000FYYZ-01UL1B2 | 2.728 TB |
| 1 | WD-WMC130D1CT76WDC | WD3000FYYZ-01UL1B2 | 2.728 TB |
| 2 | WD-WMC130D2MZFVWDC | WD3000FYYZ-01UL1B2 | 2.728 TB |
| 3 | WD-WMC130D2MZFVWDC | WD3000FYYZ-01UL1B2 | 2.728 TB |
