Dallas Google PoP

New Google POP

Site DFW 28
Cage 4000.40
1950 N Stemmons Freeway
Suite 4000
Dallas, TX 75207

Racks 4-11 4-12
  RGnet in 4-12
  IETF/Deadalus/RGnet in 4-11

Shipping Address:
 Google - chris morrow
 c/o: Infomart Suite 4000
 1950 N Stemmons Freeway
 Dallas, TX 75207

Hardware Inventory

r1 Juniper MX240
r2 cisco 9001
sw0 cisco 2960G-48TC-L with fiber to 12406
sw2 Nexus3064 48x10GE
sw3 Nexus3064 48x10GE
o2 Cyclades® ACS Advanced Console Server
pwr0 Servertech Horizontal Power Strip (8port) Part Number: CW-8H2-C20
pwr1 Servertech Horizontal Power Strip (8port) Part Number: CW-8H2-C20

Removed
dfw0 1ru compute server SuperMicro SYS-6015W-NTRB w/ X7DWU
dfw1 3ru big raid server SuperMicro CSE-836TQ-R800B w/ X7SBE
dfw2 2ru Junosphere virtualization server

Rack Physical and Wiring

hostname switch ipmi oob oobname pwr rack
o2.dfw.rg.net sw0.35 1.8 o2 Cyclades® ACS-48
[equnix IX fiber] 0.46
r1.dfw.rg.net.2/2/0 0.07 2.15 r1 0.13-17 LAN
r1.dfw.rg.net.2/2/1 2.03 2.15 r2 0.13-17 NTT (VLAN 53)
r2.dfw.rg.net-0/0/1/0 2.05 0.08 2.3 r2 0.18.19 NTT VLAN 50
r2.dfw.rg.net.0/1/1 2.06 2.3 0.18.19 LAN
o1.dfw.rg.net 0.40 0.aux 1.1 0.22-23
sw0.dfw.rg.net 2.47 2.13 sw0 1 0.28
sw2.dfw.rg.net 0.47 2.02 sw2 1 0.30
raid0.dfw.rg.net 2 0.32 2.44 raid0 0.5/1.5 0.36-38
vm0.dfx.rg.net 2.27 2.25(drbd) 2.20 2.5 vm0.dfx pwr0b B1-9 pwr0r B1-9 0.40
vm1.dfx.rg.net 2.28 2.26(drbd) 2.19 2.6 vm1.dfx pwr0b B1-10 pwr0r B1-10 0.41
atlas.dfw.rg.net 0.33 vm1.dfx USB
b0.noc.ietf.org 3.32 3.31 2.45 b0 0.4/1.4 1.26
sw3.dfw.rg.net 2.48 2.30 sw3 0.4/1.4 1.30
dallas01.mux.peering.usc.edu 0.38 2.46 usc 0.7/1.7 1.40
rtcolo.daedalus.com xx 2.45 b0 xx 1.41
paddington.richosman 0.22 2.47 paddington 0.8/1.8 1.42
kingsx.richosman.com 0.21 2.48 kingsx 0.6/1.6 1.43-44
pwr1.red.dfw.rg.net 0.41 2.9 pwr1-red subfl 26
pwr1.blue.dfw.rg.net 0.41 2.10 pwr1-blue subfl 26
pwr0-blue.dfw.rg.net 0.42 2.16 pwr0-blue subfl -
pwr0-red.dfw.rg.net 0.42 2.17 pwr0-red subfl -
vm ipmi e0 e1
vm0 sw2-20 sw2-25 sw2-26
vm1 sw2-19 sw2-27 sw2-28
ipmi e0 e1 10g 0 10g 1
sw0-32 sw2-16 sw2-17 sw2-29 sw2-30

Ganeti Cluster / 198.180.152.30 / 198.180.152.7

vm0.dfx.rg.net:/root# ./do-stat
Node           DTotal DFree MTotal MNode  MFree Pinst Sinst
vm0.dfx.rg.net   3.1T  1.4T 251.8G 48.3G 229.0G     8     8
vm1.dfx.rg.net   3.1T  1.8T 251.8G 14.6G 241.2G     8     8

Instance           Primary_node   Secondary_Nodes Disk/0 Memory VCPUs
ca.rg.net          vm0.dfx.rg.net vm1.dfx.rg.net  128.0G   4.0G     1
cache0.rg.net      vm0.dfx.rg.net vm1.dfx.rg.net   32.0G   2.0G     1
cats.rg.net        vm1.dfx.rg.net vm0.dfx.rg.net   32.0G   2.0G     1
cu0.dfw.rg.net     vm1.dfx.rg.net vm0.dfx.rg.net   12.0G   512M     1
git.rg.net         vm0.dfx.rg.net vm1.dfx.rg.net   32.0G   2.0G     1
icir.dfw.rg.net    vm0.dfx.rg.net vm1.dfx.rg.net  400.0G   8.0G     4
krill.rg.net       vm1.dfx.rg.net vm0.dfx.rg.net   16.0G   2.0G     1
mail.rg.net        vm1.dfx.rg.net vm0.dfx.rg.net   32.0G   1.0G     1
mon0.rg.net        vm1.dfx.rg.net vm0.dfx.rg.net  150.0G  16.0G     4
netsrv.dfw.rg.net  vm0.dfx.rg.net vm1.dfx.rg.net  100.0G   1.0G     1
nms.rg.net         vm0.dfx.rg.net vm1.dfx.rg.net   80.0G   2.0G     2
petunia.hactrn.net vm0.dfx.rg.net vm1.dfx.rg.net  120.0G   6.0G     1
routen8or.rg.net   vm1.dfx.rg.net vm0.dfx.rg.net   16.0G   2.0G     1
wireguard.rg.net   vm0.dfx.rg.net vm1.dfx.rg.net   10.0G   2.0G     1
wp.rg.net          vm1.dfx.rg.net vm0.dfx.rg.net   64.0G   4.0G     1
ymbk.com           vm1.dfx.rg.net vm0.dfx.rg.net   16.0G   512M     1

Hosts on vm0/1.dfx.rg.net

Instance Primary_node Secondary_Node MaxMem DiskUsage IP_Address SysAdmin
ca.rg.net vm0.dfw.rg.net vm1.dfw.rg.net 4.0G 128.0G 198.180.152.6 Randy Bush <randy@psg.com>
cache0.rg.net vm0.dfw.rg.net vm1.dfw.rg.net 2.0G 32.0G 198.180.152.33 Randy Bush <randy@psg.com>
cats.rg.net vm1.dfw.rg.net vm0.dfw.rg.net 2.0G 32G 198.180.152.58 Randy Bush <randy@psg.com>
cu0.dfw.rg.net vm1.dfw.rg.net vm0.dfw.rg.net 512M 12.0G 198.180.152.71 Steven M Bellovin <smb@cs.columbia.edu> John Koh <koh@…>
dns.net.gn vm0.dfw.rg.net vm1.dfw.rg.net 4G 64.0G 198.180.152.62 Randy Bush <randy@psg.com>
git.rg.net vm0.dfw.rg.net vm1.dfw.rg.net 2.0G 34.0G 198.180.152.8 Randy Bush <randy@psg.com>
icir.dfw.rg.net vm0.dfw.rg.net vm1.dfw.rg.net 1.0G 32.0G 198.180.152.57 Paul Pearce" <pearce@gatech.edu>
krill.rg.net vm1.dfw.rg.net vm0.dfw.rg.net 2.0G 16.0G 198.180.152.62 Randy Bush <randy@psg.com>
mail.rg.net vm0.dfw.rg.net vm1.dfw.rg.net 2.0G 12.0G 198.180.152.11 Randy Bush <randy@psg.com>
mon0.rg.net vm1.dfw.rg.net vm0.dfw.rg.net 16G 150.1G 198.180.152.62 Randy Bush <randy@psg.com>
netsrv.dfw.rg.net vm0.dfw.rg.net vm1.dfw.rg.net 1.0G 100G 198.180.152.15 Randy Bush <randy@psg.com>
nms.rg.net vm0.dfw.rg.net vm1.dfw.rg.net 2.0G 20G 198.180.152.9 Randy Bush <randy@psg.com>
petunia.hactrn.net vm0.dfw.rg,net vm1.dfw.rg.net 6G 120G 198.180.152.200 Rob Austein <sra@hactrn.net>
routen8or.rg.net vm1.dfw.rg.net vm0.dfw.rg.net 2.0G 16.0G 198.180.152.63 Randy Bush <randy@psg.com>
wireguard.rg.net vm0.dfw.rg.net vm1.dfw.rg.net 4G 64G 198.180.152.16 Hans Kuhn <hans@flyingpoodle.com>
wp.rg.net vm1.dfw.rg.net vm0.dfw.rg.net 2G 10G 198.180.152.56 Randy Bush <randy@psg.com>
ymbk.com vm1.dfw.rg.net vm0.dfw.rg.net 512M 16.1G 198.180.152.10 Randy Bush <randy@psg.com>

vm0.dfx.rg.net vm1.dfx.rg.net

VMs are Supermicro A+ Server 1114S-WTRT Systems
With Supermicro H12SSW-NT Motherboards
With one AMD EPYCTM 7443P Single Socket Processor 24-Core 2.85GHz
With 256G of RAM each
And 2 Samsung 250GB 970 EVO+ Series - M.2 NVMe PCIe (<1DWPD) (MZ-V7S250B)
And 8 Samsung 960GB 883 DCT Series - 2.5" SSD SATA 6Gb/s (<1DWPD) (MZ-7LH960NE)
Serial Numbers: iX1210A-IXN S/N's A1-86827 and A1-86828

vm[0-1].dfx.rg.net Disk Drives

vm0.dfx.rg.net:/home/randy# for i in a b c d e f g h; do echo -n "sd$i "; smartctl -a /dev/sd$i | egrep "Serial|Model"; done
sda Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R316039
sdb Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R107119
sdc Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R316036
sdd Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R316032
sde Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R303811
sdf Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R316042
sdg Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R107124
sdh Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R316040

vm1.dfx.rg.net:/home/randy#  for i in a b c d e f g h; do echo -n "sd$i "; smartctl -a /dev/sd$i | egrep "Serial|Model"; done
sda Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R316035
sdb Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R303827
sdc Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R316034
sdd Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R303829
sde Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R303777
sdf Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R303803
sdg Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R303764
sdh Device Model:     SAMSUNG MZ7LH960HAJR-00005
Serial Number:    S45NNA0R316031

raid0.dfw.rg.net

Dell R530
Service Tag: HQWPW52
PERC H730P RAID Controller, 2G B NV Cache, Mini card
2 x 4TB in md0 RAID1 as opsys
5 x 16TB in zfs
System Configuration Page

Drive Bays
Bay 0 Bay 2 Bay 4 Bay 6
Bay 1 Bay 3 Bay 5 Bay 7

Cable to Bay 5 may be bad 2023.07.16

raid0 Drives

smartctl -a -d megaraid,[0-7] /dev/bus/0
Look for smart scan errors with for i in 0 1 2 3 4 5 6 7; do echo -n "$i "; smartctl -a -d megaraid,$i /dev/bus/0 | grep 'Completed with'; echo; done
Bay Manufacturer Model Serial Installed
0 Seagate ST4000NM0005 Z4C056TC 2022.06.06
1 Seagate ST4000NM0005 Z4C056KT 2022.06.06
2 Western Digital WD161KRYZ-01AGBB0 2PH9PMWT 2022.06.06
3 Western Digital WD161KRYZ-01AGBB0 2PHA0RMT 2022.06.06
4 Western Digital WD161KRYZ-01AGBB0 2PH9NJNT 2022.06.06
5 Western Digital WD161KRYZ-01AGBBO 2CH669AP 2023.08.22
6 Seagate ST16000NM000J-2TW103 ZR706BX0 2022.06.06

| 5 | Western Digital | WD161KRYZ-01AGBB0 | 2PH69HJJ | removed 2023.07.17 |

raid0.dfw.rg.net:/home/randy# for i in 0 1 2 3 4 5 6 7; do echo -n "$i  "; smartctl -a -d megaraid,$i /dev/bus/0 | grep 'Serial'; echo; done
0  Serial number:    Z4C056TC
1  Serial number:    Z4C056KT
2  Serial Number:    2PH9PMWT
3  Serial Number:    2PHA0RMT
4  Serial Number:    2PH9NJNT
5
6  Serial Number:    ZR706BX0
7  Serial Number:    2PH69HJJ

Disgusting Details

Power
    SO1-A:5C2.2-62/64
    SO2-A:5C2.2-66/68
    SO1-B:5D2.2-62/64
    SO2-B:5D2.2-66/68
    C-Side is Blue and that = "A" feed
    D-Side is Yellow and that = "B" feed
    [ SO2-B:5D2.2-66/68 will not be used ]

The demarc for the xconnects is as follows:
    pp01.dfw06
    137-138 M3 Future
    139-140 M4 Future
    141-142 M5 Equinix IX Cable ID #20466027 Terminated on CP:0104:1068601 ports 3/4
    143-144 M6 NTT/Verio r08.dllstx09.us.bb g0/6/0/29

Rge Equinix order info for the exchange fiber:
Ordering contact- Chris Morrow and/or CSM- Shazyra Irizarry
Technical contact – Randy Bush  <randy@psg.com>
IBX- DA1
Order:  1-97362053795
WOA-    3-97445043133 (IX Port Install)
WOA-    3-97448754941 (NCC Cable install)
Serial # 20466027 ; terminated on CP:0104:1068601 ports 3/4

---

Dallas Equinix Colo, Downstairs

Google demarc for the riser cable on the Equinix end is Suite 1034 Cage
00372 Cabinet 105

NTT/Verio TDI
Cage 220, Cab 101 FP#1, Port NA, SMF/SC.
r08.dllstx09.us.bb g0/6/0/29

Media: MMF
Connector: SC

---  ntt circuit ---

EQUINIX INC. - Cross Connect Order Complete - 817885.1.1.2
Completed On: 08-JUN-2009
IBX: DA1
Type of Order: Cross Connect
Cage: DA1::00080:EQUINIX.COM
Cabinet Number: 0101
A-Side Patch Panel/Module/Port: PP:0105:2288||1
Z-Side Customer and Cage Number: YOUTUBE, LLC
     DA1::00372:YOUTUBE
Z-Side Cabinet Number: 0105
Carrier Circuit ID(if applicable): EQUINIX SANDBOX
Z-Side Patch Panel/Module/Port: VP:0105:69862||143
Cable ID: 1234912

EQUINIX INC. - Cross Connect Order Complete - 817885.2.1.2
Completed On: 05-JUN-2009
IBX: DA1
Type of Order: Cross Connect
Cage: DA1::00080:EQUINIX.COM
Cabinet Number: 0101
A-Side Patch Panel/Module/Port: PP:0105:74459||3
Z-Side Customer and Cage Number: NTT AMERICA, INC.
     DA1::00220:NTT AMERICA, INC. (Verio)
Z-Side Cabinet Number: 0101
Carrier Circuit ID(if applicable): EQUINIX SANDBOX
Z-Side Patch Panel/Module/Port: PP:0101:2375||15
Cable ID: 1234913

For both crossconnects, even though the "Cabinet Number" field shows
"0101", the actual Equinix A-Side cab is "0105" as listed in the panel
info.  And to reduce cabling and points of failure, the IBX site
technicians said that they would be connecting both crossconnects
directly into each other rather than with an intermediate patch cable.

--- equinix exchange ---

csw7.da1, gig 0/35, Sandbox/RGNet, IX, circuit id 1236454

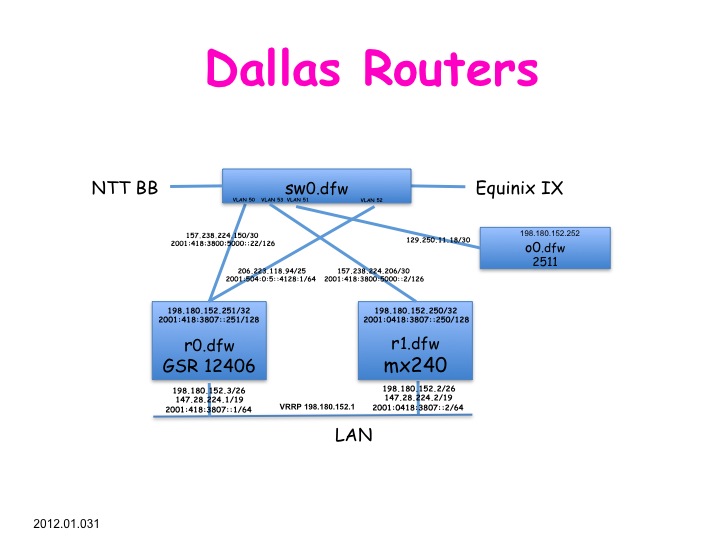

Routers

[120131.dallas-routers.jpg]

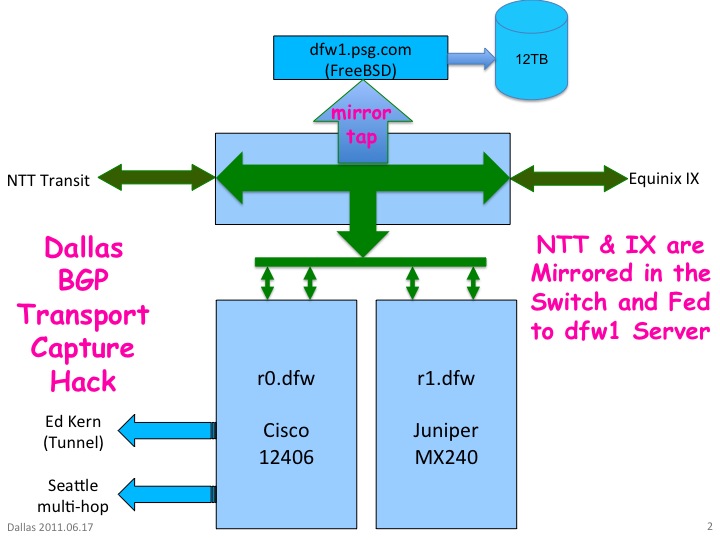

Tapping BGP Feeds

[110617.dfw-data-tap.jpg]

Old Google PoP

We were in Google POP in Via West

Viawest/Dataside
1950 Stemmons Freeway, Suite 2033
Dallas TX 75027
+1-214-231-0162
Mark for "inside delivery"

Google PoP DFW06
Rack Location: 6.3
Rack: ESW E-00589-01, Black Caster and Mounting Rails, No Door, 7Ft.

Devices Removed

hostname switch ipmi oob oobname pwr rack
r0.dfw.rg.net-rp0 0.45 0.01 r00 subfl 03-13
r0.dfw.rg.net-rp0mgt 0.33 03-13
r0.dfw.rg.net-rp1 0.?? 0.02 r01 03-13
r0.dfw.rg.net-rp1mgt 0.34 03-13
[r0.2/0/4 LAN] 0.04 03-13
[r0.2/0/5 ntt fiber] 0.05 03-13
[r0.2/0/6 spare] 0.06 03-13
[r0.2/0/7 equinix ix] 0.15 03-13
sw1.dfw.rg.net 0.13 sw1 1 0.35

DEAD raid0.dfw.rg.net

Mobo Supermicro X7SB4/E IPMI AOC-IPMI20-E

raid0 disk drive physical order markings on drive carriers
00 10 20 30
01 11 21 31
02 12 22 32
03 13 23 33
for i in 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16; do
   echo -n "1/$i  ";
   smartctl -i -d hpt,1/$i /dev/hptrr | grep ^Serial;
   done

1/1 Serial Number: WD-WMAZA9378538 1/2 Serial Number: V1KVXSXG 1/3 Serial Number: YGGU1YTA 1/4 Serial Number: WD-WMAZA9520754 1/5 Serial Number: WD-WCAVY0114154 1/6 Serial Number: WD-WMC5C0D9L6HV 1/7 Serial Number: WD-WCC6N5UY8H5P 1/8 Serial Number: WD-WCC300759632 1/9 Serial Number: WD-WCC6N6DDJ7DT 1/10 Serial Number: WD-WCC6N6VTE2NF 1/11 Serial Number: WD-WMC5C0D8Z7FV 1/12 Serial Number: WD-WMC6N0J6S9AV 1/13 Serial Number: WD-WCC4MLULA4S4 1/14 Serial Number: WD-WMC6N0F8FU0U 1/15 Serial Number: WD-WCAVY0090692 1/16 Serial Number: WD-WCC6N5CLHYSS

Bay ID Drive Name Serial Number
20 1/1 da0 JBOD-1-1 WD-WMAZA9378538
21 1/2 da1 JBOD-1-2 V1KVXSXG
22 1/3 da2 JBOD-1-3 WD-WCC300755734
23 1/4 da3 JBOD-1-4 WD-WMAZA9520754
00 1/5 da4 JBOD-1-5 WD-WCAVY0114154
01 1/6 da5 JBOD-1-6 WD-WMC5C0D9L6HV
02 1/7 da6 JBOD-1-7 WD-WCC6N5UY8H5P
03 1/8 da7 JBOD-1-8 WD-WCC300759632
30 1/9 da8 JBOD-1-9 WD-WCC6N6DDJ7DT
31 1/10 da9 JBOD-1/10 WD-WCC6N6VTE2NF
32 1/11 da10 JBOD-1/11 WD-WMC5C0D8Z7FV
33 1/12 da11 JBOD-1/12 WD-WMC6N0J6S9AV
10 1/13 da12 JBOD-1/13 WD-WCC4MLULA4S4
11 1/14 da13 JBOD-1/14 WD-WMC6N0F8FU0U
12 1/15 da14 JBOD-1/15 WD-WCAVY0090692
13 1/16 da15 JBOD-1/16 WD-WCC6N5CLHYSS
  • da1 MK0171YFKMA4AG replaced 2022.05.08
  • da12 MK0171YFKMA59G replaced 2022.04.12
  • da8 WD-WCAVY0111166 replaced 2021.11.22
  • da10 WD-WCAVY0127426 replaced 2016.09.15
  • da1 S2F06GX5 replaced 2016.01.2?
  • da2 WD-WCAVY0112831 replaced 2014.05.12
  • da5 WD-WCAVY0107135 replaced 2017.03.25
  • da13 W1E0B4NJ replaced 2017.06.xx
  • da6 WD-WCAVY0127865 replaced 2018.01.07
  • da6 WD-WMC6N0H8K48M replaced 2021.01.16
  • da9 WD-WCAVY0117958 replaced 2021.03.15
  • da15 WD-WCC4M5VJ4UK3 replaced 2021.06.18
  • da9 WD-WMAY04440674 replaced 2021.08.27

DEAD dfw0.psg.com

dfw0 drives for i in 4 5 6 7; do echo /dev/ad$i; smartctl -a /dev/ad$i | egrep 'Model|Serial'; done
Bay Model Serial
ada0 ST31000340NS 9QJ3Q29E 1TB
ada1 WD20EADS-00R6B0 WCAVY0388932 2TB
ada2 WD2005FBYZ-01YCBB1 WMC6N0F2KZU6 2TB
ada3 ST31000340NS 9QJ3M5N4 1TB

dfw0 disk drive physical order

ada4 ada6 ada5 ada7
ada0 ada2 ada1 ada3

logical drive labels

label/disk00 ada0s3
label/disk01 ada1s3
label/disk02 ada2s1
label/disk03 ada3s1

DEAD nfs0.dfw.rg.net

MoBo

DEAD nfs0.dfw.rg.net Disk Drives

for i in 0 1 2 3 4 5 6 7; do tw_cli /c2/p$i show serial; done
Port Model Serial Size Date
p0 ST4000DM000-1F2168 Z300L98C 4TB don't know
p1 WD4000F9YZ-09N20L1 WD-WCC5D1DS4012 4TB 2019.04.07
p2 WD60EFRX-68L0BN1 WD-WX41DA57H7UJ 6TB 2018.03.09
p3 WD4000F9YZ-09N20L1 WD-WCC5D2KHHYE8 4TB 2016.06.09
p4 ST4000DM000-1F2168 Z300KBMM 4TB don't know
p5 ST4000DM000-1F2168 Z300KBQN 4TB don't know
p6 ST4000DM000-1F2168 Z300L8J5 4TB don't know
p7 WD4000F9YZ-09N20L1 WD-WMC5D0D7V0L9 4TB 2015.12.13
p1 ST4000DM000-1F2168 Z300FKES 4TB removed 2019.04.07
p2 ST4000DM000-1F2168 Z300L9T3 4TB removed 2018.03.09
incoming HUS724040ALS640 PBK4K70X 4TB 2015.12.18

Physical Drive layout
4 5 6 7
0 1 2 3

2023.12.10

  1. vm servers' ethers are connected to sw2.dfw as follows: ↩︎

  2. raid0 ethers are connected to sw2.dfw as follows: ↩︎
