Seattle Westin/NTT PoP

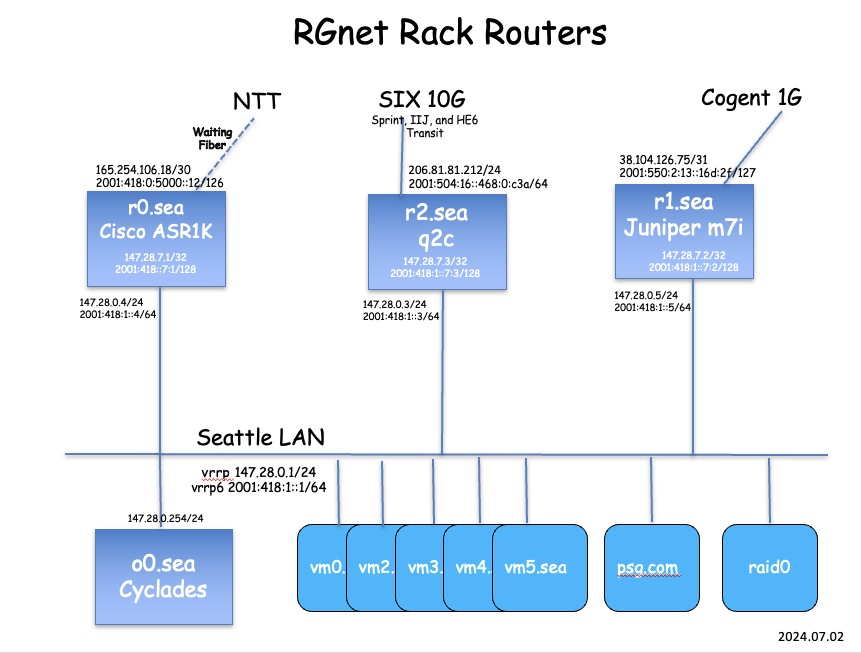

Block Diagram
Administrative Information
NTT Westin
2001 6th Avenue, Suite 900CA
Seattle, WA 98121
Rack D.05
Power RPP900-A2-#30 & RPP900-A1-#18 - NEMA L6-20R for NEMA L5-20P Plug
D8 is the DMARC in D. jumper to A row. would need jumper from D8 to panel in A row, and then jumper to the MMMR paenal in A row
Tripp Lite Switched PDU, 30A, 16 Outlets (5-15/20R), 120V, L5-30P, 10 ft. Cord, 2U Rack-Mount Power, TAA (PDUMH30NET)
[TrippLite PDUs](https://tripplite.eaton.com/support/PDUMH30NET
Patch Panel
Fiber Paths
NTT MMR Cross-Connects (from RGnet in NTT Rack D.05)
SIX 10G RGnet
C164428: 19TH FL MMR / MMR / 305 / 1901.03.05.05 15,16 SC
to 900 / A (NTT) / A.04 / PANEL 9 PORT B2
SIX 1G PEERING
C164427: 19TH FL MMR / MMR / 102 / 1901.01.02.03 23,24 SC
to 900 / A (NTT) / A.03 / PANEL 1 PORT B6
Cogent 1G RGnet (Cogent Order Number 3-002222510)
C164443: 19TH FL MMR / MMR / 903 / 1901.09.03.01 13,14 SC
to 900 / A (NTT) / A.04 / PANEL 12 PORT B1
XC from RGnet in D.05 to NTT 9th floor DMARC in D.08
XC from NTT D.08 to 19th floor NTT/MMR Panel in A.03/A.04
XC from MMR on 19th to Cogent and SIX
MMR XCs:
GIN CID: C164427
DRT CID: 01157542
NTT TDI: 1901.01.02.03 Port #23/24
SIX TDI: 1901.06.02.01 Ports 23/24 (B6)
GIN CID: C164428
DRT CID: 01157543
NTT TDI: 1901.03.05.05 Port #15/16
SIX TDI: 1901.06.02.01 Ports 33/34 (C5)
D.05 Patch Panel Port Assignments
5-6 SIX 10G C164428
7-8 SIX 1G C164427 to sw3-46
9-10 NTT
11-12 Cogent
Rack and Stack
| RU | Name | Device | Power | IPMI/iDRAC | 1st Port | 2nd Port | Serial |
|---|---|---|---|---|---|---|---|
| 40 | Fiber Patch | ||||||
| 39 | |||||||
| 38 | r2.sea.rg.net | Arrcus S9600-72XC-R | 0.09 & 1.09 | ma1 sw4.36 | swp.6 patch 5-6 | swp.20 sw4.47 | o0.9 |
| 37 | 2RU | UfiSpace | |||||
| 36 | sw4.sea.rg.net | Cisco 3064 Switch | 0.3 & 1.3 | sw0.22 ??? | sw4.48-sw3.47 | o0.8 | |
| 35 | |||||||
| 34 | r1.sea.rg.net | Dell 630 / FRR | 0.10 & 1.10 | ???? | sw4.17 | patch 11-12 | o0.10 |
| 33 | r0.sea.rg.net | Cisco ASR1001 | 0.01 & 1.01 | sw4.35 | patch 9-10 | o0.11 | |
| 32 | |||||||
| 31 | seattle01.mux.peering.usc.edu | Supermicro | 0.08 | sw0.01 | sw0.11 | sw0.38 | - |
| 30 | 2RU | patch 7-8-sw3.40 | |||||
| 29 | pwr1.sea.rg.net | TrippLite PDUMH30NET | A1.-#18 | sw0.14 | sw0.16 | - | |
| 28 | 2RU | ||||||
| 27 | |||||||
| 26 | pwr0.sea.rg.net | TrippLite PDUMH30NET | A2-#30 | sw0.12 | sw0.12 | ???? | |
| 25 | 2RU | ||||||
| 24 | |||||||
| 23 | sw3.sea.rg.net | Cisco 3064 Switch | 0.02&1.02 | sw0.21 | sw3.47->sw4.48 | sw3.48-sw0.47 | o0.7 |
| 22 | |||||||
| 21 | sw0.sea.rg.net | Cisco WS-C3750G-POE-48 | 1.08 | ???? | sw0.47→sw3.48 | o0.6 | |
| 20 | |||||||
| 19 | vm5.sea.rg.net | Dell 640 | 0.15 & 1.15 | sw0.02 | sw3.43 | sw3.44 | o0.13 |
| 18 | vm4.sea.rg.net | Dell 630 | 0.14 & 1.14 | sw0.05 | sw3.01 | sw3.02 | o0.13 |
| 17 | vm3.sea.rg.net | SuperMicro 6019U-TRT | 0.13 & 1.13 | sw0.19 | sw3.20 | sw3.22 | ???? |
| 16 | |||||||
| 15 | vm2.sea.rg.net | Supermicro AS-2022G-URF | 0.12 & 1.12 | sw0.08 | sw0.41 | sw3.31 | o0.5 |
| 14 | 2RU | ||||||
| 13 | vm1.sea.rg.net | being replaced | sw3.30 | o0.4 | |||
| 12 | vm0.sea.rg.net | SuperMicro w/ X7DWU | 1.16 | sw0.39 | sw0.26 | sw3.29 down | o0.3 |
| 11 | |||||||
| 10 | o0.sea.rg.net | Cyclades ACS-48 | 0.16 | sw0.44 | sw0.43 | ||
| 9 | |||||||
| 8 | raid0.sea.rg.net | SuperMicro 5018R-WR | 0.11 & 1.11 | sw0.09 | sw0.10 | o0.12 | |
| 7 | ap.sea.rg.net | tiny blue thing, not in RU-7 | peering USB | sw0.3 | |||
| 6 | |||||||
| 5 | |||||||
| 4 | |||||||
| 3 | |||||||
| 2 | |||||||
| 1 |
vm[0-5].sea.rg.net Ganeti Cluster
gnt-instance list -o "name,pnode,snodes,sda_size,oper_ram,vcpus"
vm0.sea.rg.net:/root# ./do-stat
Node DTotal DFree MTotal MNode MFree Pinst Sinst
vm0.sea.rg.net 10.9T 4.7T 125.8G 88.0G 101.6G 8 5
vm2.sea.rg.net 5.5T 4.6T 94.4G 13.1G 86.6G 4 5
vm3.sea.rg.net 10.9T 7.1T 503.8G 18.3G 484.2G 3 0
vm4.sea.rg.net 3.6T 2.2T 251.8G 29.8G 240.5G 6 4
vm5.sea.rg.net 7.3T 1.1T 188.5G 75.9G 152.3G 9 8
Instance Primary_node Secondary_Nodes Disk/0 MemoryVCPUs
a1000004.rg.net vm5.sea.rg.net 8.0G 2.0G 1
adrilankha.hactrn.net vm5.sea.rg.net vm0.sea.rg.net 260.0G 4.0G 1
archive.psg.com vm0.sea.rg.net vm5.sea.rg.net 128.0G 2.0G 1
build-u.rpki.net vm5.sea.rg.net vm2.sea.rg.net 100.0G 1.0G 1
chezrandy.x0.dk vm2.sea.rg.net 300.0G 2.0G 1
hans.rg.net vm4.sea.rg.net vm0.sea.rg.net 251.0G 4.0G 2
hiroshima.bogus.com vm5.sea.rg.net vm0.sea.rg.net 250.0G 2.0G 1
lucky.bgp.nu vm5.sea.rg.net vm2.sea.rg.net 20.0G 4.0G 1
lxd0.sea.rg.net vm4.sea.rg.net 32.0G - 8
m1.rg.net vm4.sea.rg.net 32.0G 3.0G 1
mon1.rg.net vm0.sea.rg.net vm5.sea.rg.net 100.0G 4.0G 1
nagasaki.bogus.com vm0.sea.rg.net vm5.sea.rg.net 250.0G 4.0G 1
netsrv.sea.rg.net vm4.sea.rg.net vm5.sea.rg.net 210.0G 1.0G 1
nlring.sea.rg.net vm2.sea.rg.net vm5.sea.rg.net 32.0G 2.0G 1
ns0.rg.net vm3.sea.rg.net vm4.sea.rg.net 32.0G 8.0G 1
ns1.securerouting.org vm2.sea.rg.net 100.0G 2.0G 1
okui.psg.com vm0.sea.rg.net vm5.sea.rg.net 1001.0G 1.0G 1
pfs.sea.rg.net vm3.sea.rg.net 8.0G 1.0G 1
psg.com vm5.sea.rg.net vm0.sea.rg.net 2.0T 16.0G 3
pws1 vm0.sea.rg.net vm5.sea.rg.net 500.0G 8.0G 1
rcuss-build.rg.net vm3.sea.rg.net 316.0G 64.0G 16
rip.psg.com vm5.sea.rg.net vm4.sea.rg.net 32.0G 32.0G 8
shout.rg.net vm5.sea.rg.net vm2.sea.rg.net 24.0G 2.0G 1
tamias.rg.net vm0.sea.rg.net vm2.sea.rg.net 17.0G - 1
turing.worldpowersystems.com vm2.sea.rg.net vm4.sea.rg.net 250.0G 2.0G 1
vault.sea.rg.net vm4.sea.rg.net vm2.sea.rg.net 8.0G 1.0G 1
viz2.rg.net vm0.sea.rg.net vm4.sea.rg.net 64.0G 4.0G 1
wg.sea.rg.net vm5.sea.rg.net 10.0G 2.0G 1
zoe.dns.gh vm4.sea.rg.net vm0.sea.rg.net 32.0G 1.0G 1
zzyzx.sigpipe.org vm0.sea.rg.net vm5.sea.rg.net 100.0G 2.0G 1
Guest VMs on vm0/2/3/4/5.sea.rg.net / 147.28.0.14/15/16/29
| Instance | IP_Address | SysAdmin |
|---|---|---|
| a1000004.rg.net | 147.28.0.33 | Randy Bush randy@psg.com |
| adrilankha.hactrn.net | 147.28.0.19 | Rob Austein sra@hactrn.net |
| archive.psg.com | 147.28.0.8 | Randy Bush randy@psg.com |
| build-u.rpki.net | 147.28.0.28 | Rob Austein sra@hactrn.net |
| chezrandy.x0.dk | 147.28.0.56 | Phil Regnauld pr@x0.dk |
| hans.rg.net | 147.28.0.42 | Hans Kuhn hak@flyingpoodle.com |
| hiroshima.bogus.com | 147.28.0.82 | Hans Kuhn <hak@flyingpoodle.com |
| lucky.bgp.nu | 147.28.0.57 | Paul Southworth pwsouth@gmail.com |
| lxd0.sea.rg.net | Hans Kuhn <hak@flyingpoodle.com | |
| m1.rg.net | 147.28.0.30 | Randy Bush randy@psg.com |
| nagasaki.bogus.com | 147.28.0.81 | Joel Jaeggli joelja@bogus.com |
| netsrv.sea.rg.net | 147.28.0.7 | Randy Bush randy@psg.com |
| nlring.sea.rg.net | 147.28.0.89 | Randy Bush randy@psg.com |
| ns0.rg.net | 147.28.1.39 | Randy Bush randy@psg.com |
| ns1.securerouting.org | 147.28.0.45 | Sam Weiler weiler@watson.org |
| okui.psg.com | 147.28.0.25 | Patrick Okui pokui@psg.com |
| pfs.sea.rg.net | 147.28.0.32 | Randy Bush randy@psg.com |
| psg.com | 147.28.0.62 | Randy Bush randy@psg.com |
| pws1 | 147.28.0.53 | Paul Southworth pwsouth@gmail.com |
| rcuss-build.rg.net | 147.28.0.170 | Rob Austein sra@hactrn.net |
| rip.psg.com | 147.28.0.39 | Randy Bush randy@psg.com |
| shout.rg.net | 147.28.0.38 | Randy Bush randy@psg.com |
| tamias.rg.net | 147.28.0.80 | Randy Bush randy@psg.com |
| turing.worldpowersystems.com | 147.28.0.17 | Tom Jennings tom@sr-ix.com |
| vault.sea.rg.net | 147.28.0.2 | Randy Bush randy@psg.com |
| viz2.rg.net | 147.28.0.27 | Stephen North scnorth@gmail.com |
| wg.sea.rg.net | 147.28.0.11 | Randy Bush randy@psg.com |
| zoe.dns.gh | 147.28.0.23 | Joel Jaeggli joelja@bogus.com |
| zzyzx.sigpipe.org | 147.28.0.13 | Michael Elkins melkins@sigpipe.org |
Back/DRBD Channel
net 10, drdb Ports for vm[0-4]
| Switch | Port | Host | Ether | IP Address |
|---|---|---|---|---|
| sw0 | 39 | vm0.sea | eth1 | 10.0.0.100 |
| sw0 | -- | vm1.sea | eth5 | 10.0.0.101 |
| sw0 | 08 | vm2.sea | eth1 | 10.0.0.102 |
| sw0 | 19 | vm3.sea | eth1 | 10.0.0.103 |
| sw0 | 05 | vm4.sea | enp130s0f1 | 10.0.0.104 |
| sw0 | 02 | vm5.sea | enp216s0f1 | 10.0.0.105 |
vm0.sea.rg.net Hardware
-
2 Intel Xeon E5-2630 V4 2.2 GHz LGA 2011 85W
-
128G Kingston ValueRAM 64GB (4 x 16GB) 288-Pin DDR4 SDRAM ECC Registered DDR4 2133 (PC4 17000) Server Memory Model KVR21R15D4K4/64
vm0.sea drives, numbered left to right
From for i in a b c d; do smartctl -a /dev/sd$i | egrep 'Model|Serial|Capacity'; done
| Bay | Model | Serial | |
|---|---|---|---|
| 0 | WD6002FFWX-68TZ4N0 | NCGW1TVV | 2016.09.24 |
| 1 | WD6002FFWX-68TZ4N0 | NCGWP5SV | 2016.09.24 |
| 2 | WD6002FFWX-68TZ4N0 | NCGWD6NV | 2016.09.24 |
| 3 | HGST HUS726T6TALE6L4 | V7GESAHH | 2024.03.01 |
Removed 2024.03.01 | 3 | WD6002FFWX-68TZ4N0 | NCGX7MTV | 2016.09.24 |
vm2.sea.rg.net Hardware
SuperMicro AS-2022G-URF 2RU Chassis
- H8DGU-F Motherboard
- Two AMD Opteron 6320 Abu Dhabi 2.8GHz
- 64GB RAMM as two sets of Kingston 32GB (4 x 8GB) 240-Pin DDR3 SDRAM ECC Unbuffered
- 32G, two sets of two DIMMs of Crucial Crucial 16GB (2 x 8GB) 240-Pin DDR3 SDRAM ECC Unbuffered DDR3L 1600 (PC3L 12800) Server Memory Model CT2KIT102472BD160B
- LSI MegaRAID SATA/SAS 9260-8i
- Five HGST Ultrastar 7K3000 HUA723020ALA640 (0F12455) 2TB 7200 RPM 64MB Cache SATA 6.0Gb/s
vm2.sea.rg.net Disk Drives
vm2.sea.rg.net:/home/randy# megacli -PDList -aALL | egrep '(Slot|^Device Id:|Inquiry)'
| LUN | Serial | Model | Size |
| ---- | --------------- | ------------------ | -------- |
| 0 | WCC6N3FVKC2S | WD2002FFSX-68PF8N0 | 1.818 TB |
| 1 | MK0251YGKB56HA | MK7OAA10 | 1.818 TB |
| 2 | MK0251YGKB4N2A | MK7OAA10 | 1.818 TB |
| 3 | MK0251YGKB58LA | MK7OAA10 | 1.818 TB |
| 4 | MJ1311YNG6XEVA | MEAOA5C0 | 2.728 TB |
2021.08.19 LUN0 drive MK0171YFK3TVGA removed
## vm3.sea.rg.net Hardware
**[SuperMicro SuperServer 6019U-TRT](https://www.supermicro.com/products/system/1U/6019/SYS-6019U-TRT.cfm)**
- [X10DRW-iT Motherboard](https://www.supermicro.com/products/motherboard/Xeon/C600/X10DRW-IT.cfm)
- [Two Intel Ten Core 2.4Ghz Xeon 25MB cache 8.0GT/s QPI (90W) (E5-2640v4)](http://ark.intel.com/products/92984/Intel-Xeon-Processor-E5-2640-v4-25M-Cache-2_40-GHz)
- 128G RAM - 8x16GB DDR4 2400Mhz 19200 ECC/REG
- [Four HGST 6TB Enterprise SATA3 6Gb/s 7200RPM 128MB](https://www.hgst.com/products/hard-drives/ultrastar-7k6000)
### vm3.sea drives, we guess numbered left to right
From `for i in a b c d; do smartctl -a /dev/sd$i | egrep 'Model|Serial|Capacity'; done`
| Bay | Model | Serial | Capacity | Installed |
| ---- | -------------------- | -------------- | -------- | ---------- |
| 0 | HGST HUS726060ALE610 | K1J48AGD | 6TB | 2017.08.17 |
| 1 | HGST HUS726060ALE610 | K1J2PTND | 6TB | 2017.08.17 | going bad
| 2 | HGST HUS726060ALE610 | K8J6HV2N | 6TB | 2022.09.15 |
| 3 | HGST HUS726060ALE610 | K1J46RHD | 6TB | 2017.08.17 |
replaced:
| 2 | HGST HUS726060ALA640 | AR11001EV17LLB | 6TB | 2022.09.15 |
for i in b c d e; do echo $i; smartctl -a /dev/sd$i | egrep '(^Serial|Extended)'; done
## vm4.sea.rg.net Hardware
- Dell Poweredge R630 Server 2xE5-2640V4 10-core 2.4GHz, 256GB RAM, H730
- Service tag: 6TL7MN2
- PERC H730 disk controller
- Express Service Code 14849840990
- [How to configure the DELL PERC H700/H710/H730/H730P RAID controller](https://www.scaleway.com/en/docs/dedibox/hardware/how-to/configure-dell-perc-h700/)
- [Findiing a DIMM](https://www.dell.com/support/manuals/nl-nl/poweredge-r630/r630_om_pub/memory?guid=guid-b3195109-414f-4e32-adba-f7c8d29c59a8&lang=en-us)
| Bay | Model | Serial | Capacity | Installed |
| ---- | ----------------------- | ---------------- | -------- | ---------- |
| a | Samsung SSD 870 EVO 2TB | S6PNNL0T909370N | 2TB | 22.11.18 |
| b | Samsung SSD 870 EVO 2TB | S6PNNL0T909374Z | 2TB | 22.11.18 |
| c | Samsung SSD 870 EVO 2TB | S6PNNL0T708760T | 2TB | 22.11.18 |
| d | Samsung SSD 870 EVO 2TB | S6PNNL0T906382W | 2TB | 22.11.18 |
## vm5.sea.rg.net (vm1 Replacement)
* Dell Poweredge R640 server
* Service Tag: CQPCHQ2
* 2x 10-Core 2.20 GHz Intel CPU's Installed (Silver 4114)
* 192GB DDR4 (6x32GB) memory installed
* PERC H730P Mini RAID controller.
* 4 x Samsung 4TB EVO 870 SSDs
* 2x power supplies, 750W each, 100-240V
* 4x Gigabit RJ45 NIC network ports
## vm5 Disks
for i in a b c d; do echo $i; smartctl -a /dev/sd$i | egrep '(^Serial|Model)'; done
| Bay | Model | Serial | Capacity | Installed |
| ---- | ----------------------- | ---------------- | -------- | ---------- |
| a | Samsung SSD 870 EVO 4TB | S6PJNS0W307070P | 4TB | 23.05.21 |
| b | Samsung SSD 870 EVO 4TB | S6PJNS0W307067B | 4TB | 23.05.21 |
| c | Samsung SSD 870 EVO 4TB | S6PJNS0W307069T | 4TB | 23.05.21 |
| d | Samsung SSD 870 EVO 4TB | S6PJNS0W307064R | 4TB | 23.05.21 |
## raid0.sea.rg.net
- [5018R-WR Chassis + MoBo](https://www.supermicro.com/products/system/1u/5018/sys-5018r-wr.cfm)
- [X10SRW-F Motherboard](https://www.supermicro.com/products/motherboard/Xeon/C600/X10SRW-F.cfm)
- [Intel Xeon® Processor E5-2609 v4](https://ark.intel.com/products/92990/Intel-Xeon-Processor-E5-2609-v4-20M-Cache-1-70-GHz-)
- Samsung DDR4 2133MHzCL15 16GB RegECC 2Rx4 (PC4 2133) Internal Memory M393A2G40DB0-CPB
- FreeBSD USB key left in USB port
## r1.sea.rg.net Dell/FRR
* Dell R630 GM12D42 Express Service Code: 36160563170
* 2x 10-Core 2.4 GHz Intel CPU's Installed (E5-2640V4)
* 64G RAM 4x16G
* PERC H730 Mini RAID controller
* 4x 1 Gigabit RJ45 NIC
* Intel X520-SR2 2-Port 10G SFP+ Ethernet, PCI-e
* iDRAC8
### r1.sea Haed Drives
| Bay | Model | Serial | Capacity | Installed |
| ---- | ------------------------ | ---------------- | -------- | ---------- |
| a | Samsung SSD 870 EVO 512G | S6PXNS0L100210 | 512G | 2026.02.27 |
| b | Samsung SSD 870 EVO 512G | S6PXNS0L101546 | 512G | 2026.02.27 |
### raid0.sea.rg.net Drive Bays
From `for i in {0..3}; do smartctl -a /dev/ada$i | egrep 'Model|Serial|Capacity'; done`
| LUN | Model | Serial | Capacity | Installed |
| ---- | ---------------------- | --------------- | -------- | ---------- |
| 0 | WDC WD60EFRX-68L0BN1 | WD-WX41DA5F88N9 | 6tb | 2018.12.09 |
| 1 | WDC WD6004FRYZ-01CBJB0 | AQ01LV7M | 6tb | 2024.09.26 |
| 2 | WDC WD60EFRX-68L0BN1 | WD-WX11D3678XTL | 6tb | 2018.12.09 |
| 3 | HGST HUS726T6TALE6L4 | V70PUZ0K | 6tb | 2025.12.01 |
### Removed
| LUN | Model | Serial | Capacity | Installed | Replaced |
| ---- | ---------------------- | --------------- | -------- | ---------- | -------- |
| 1 | WDC WD60EFRX-68L0BN1 | WD-WX11D363T2Y5 | 6tb | 2018.12.09 | 2024.07.10 |
| 1 | WDC WD6004FRYZ-01CBJB0 | AQ00WHDM | 6tb | 2024.07.10 | 2024.09.26 |
| 3 | WDC WD60EFRX-68L0BN1 | WD-WX41D75LN9KC | 6tb | 2018.12.09 | died 2025.11.28
## Switches
| name | mfr | model | ip sddress |
| -------------- | ----- | -------------------- | ------------ |
| sw0.sea.rg.net | Cisco | WS-C3750G-48PS | 147.28.0.253 |
| sw3.sea.rg.net | Cisco | Nexus3064 48x10GE +4 | 147.28.0.239 |
| sw4.sea.rg.net | Cisco | Nexus3064 48x10GE +4 | 147.28.0.238 |
### Removed
| sw1.sea.rg.net | SMC | SMC8024L2 | 147.28.0.252 |
| -------------- | ----- | -------------- | ------------ |
| sw2.sea.rg.net | Cisco | WS-C3750G-24PS | 147.28.0.246 |
### Spare Drives
| | | | |
| ---------------- | ------------ | -------- | ---- |
| spares in westin | | | |
| | | | |
| HGST | H3D30003254S | YNG1E3ZC | 3TB |
| Seagate | ST31000528AS | 6VPCVN1Y | 1TB |
| Seagate | ST3750640A8 | 3QD06D5B | 750G |
| HGST | 118032816 | YFJLBZ5A | 2TB |
### r1.sea gigether pic left to right
| port | to | medium |
| -------- | ------ | --------- |
| ge-0/0/0 | LAN | copper |
| ge-0/0/1 | six | fiber sfp |
| | unused | copper sfp|
| | unused | |
---
2026.05.06
