Ashburn DC2 PoP

Sandbox, cage 2020, rack 102
vm1 and r0 in rack 0103
c/o Equinix DC2
21715 Filigree Ct
Ashburn, VA 20147
noc@equinix.com (or ask ERC support@equinix.com folk to escalate to
                 primary on-call NSE)
+1 888 892 0607 equinix 24x7

CURRENT CONTACTS LIST: (2025.08.07)
  Potcholo Nicolas <pnicolas@equinix.com>  +1 571 302 6293
  Joe Corrado <jcorrado@equinix.com>

2024.07.02
  Muhammad Waqas Bin Tariq <mwaqas@equinix.com>
  Tarkesh Patel <tpatel@equinix.com>

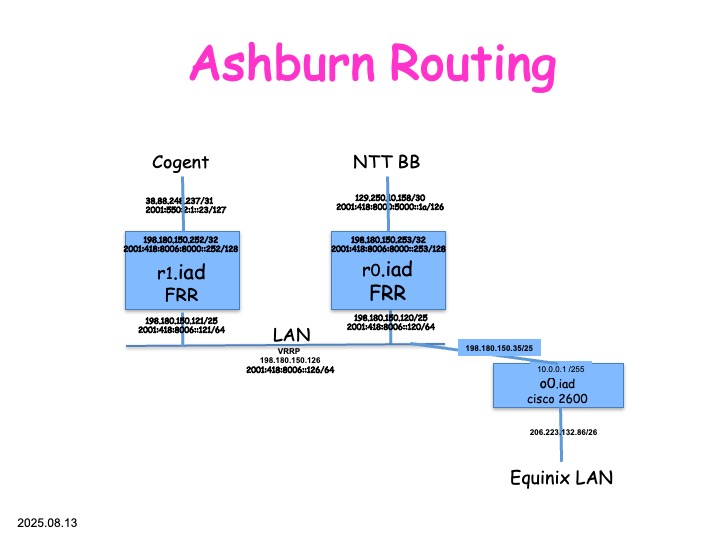

PoP Diagram


Circuits

Cogent

A-side IBX: DC2 Cage: 2020 Patch Panel: PP:0103:25916 Ports: 11/12 (these were new ports)

  • Cogent
    • GigabitEthernet0/2/1/8.rcr22.iad01
    • description CUST-W GIGE ^RGnet LLC^ ID:3-001717104 PT:3-001717104
    • AS 174
    • ipv4 address 38.88.248.236/31
    • ipv6 address 2001:550:2:1::22/127
  • RGnet/PSGnet
    • r1.iad-eno1
    • AS 3927
    • ipv4 address 38.88.248.237/31
    • ipv6 address 2001:550:2:1::23/127

o0.iad

  • o0 IP into Equinix Management Network
  • port 20 of Louie's 3Com switch in the next cabinet over
  • o0.iad.rg.net: 206.223.132.86/26
  • gateway: 206.223.132.65

Route Views

  • Circuit ID 20438058 in cage 2020 is Route Views to IX

Equipment

  • sw0 is a Cisco WS-C3750G-24PS
  • o0 is a Cisco 2621 (MPC860) processor (revision 0x102) w/ 61440K/4096K
  • r0 is a Dell 630 running FRR
  • r1 is a Dell 630 running FRR
  • Equinix Power Strip aka Leviton
  • photo from 2020.02.18

Rack Physical and Wiring

hostname switch oob oobname pwr RU
r1.iad.rg.net s0.5 3 o0.36 r1 0.1 1.1 ???? Dell 630/FRR
r0.iad.rg.net s0.24 23 11 o0.33 r0 0.2 1.3 Dell R630 6TKCMN2
fiber patch panel 5-6 (equinix)
vm0.iad.rg.net s0.02 s0.14 o0.XX vm0 0.6 3 SuperMicro SYS-6016T-URF
o0.iad.rg.net s0.01/02 vm2.usb 1.6 Cisco 2621 (MPC860)
sw0.iad.rg.net o0.37 s0 0.5 Cisco WS-C3750G-24PS
vm1.iad.rg.net s0.06 16 12 o0.38 vm1 0.3 1.4 Dell R630 7WCXDH2
pwr0.iad.rg.net o0.41 pwr0 equinix BayTech RPC
pwr1.iad.rg.net o0.43 pwr1 equinix BayTech RPC
vm2.iad.rg.net s0.07 sw0.13 o0.35 vm2 0.4 1.2 Dell R630 GLY2W52

Ethernet Ports

hostname main ether ipmi drbd
vm0.iad.rg.net sw0.02 sw0.14 sw0.15
vm1.iad.rg.net sw0.06 sw0.12 sw0.16
vm2.iad.rg.net sw0.07 sw0.13 sw0.17
hostname main ether ipmi
r0 .iad.rg.net sw0.24 sw0.11
r1 .iad.rg.net sw0.05 sw0.03

Hosts on vm0/2.iad.rg.net / 198.180.150.8/10

vm0.iad.rg.net:/root# ./do-stat
Node           DTotal DFree MTotal MNode  MFree Pinst Sinst
vm0.iad.rg.net   8.2T  7.3T  78.6G 35.4G  67.9G     5     9
vm2.iad.rg.net   3.6T  2.2T 188.8G 62.6G 160.7G     9     5

Instance                       Primary_node   Secondary_Nodes Disk/0 Memory CPUs
bbgp.rg.net                    vm0.iad.rg.net vm2.iad.rg.net   32.0G   2.0G    1
bbt2.rg.net                    vm0.iad.rg.net vm2.iad.rg.net   64.0G   4.0G    1
bbte.rg.net                    vm2.iad.rg.net vm0.iad.rg.net   64.0G   4.0G    4
bozanicfamily.com              vm2.iad.rg.net vm0.iad.rg.net   34.0G   1.0G    1
khatovar.hactrn.net            vm0.iad.rg.net vm2.iad.rg.net  250.0G   4.0G    1
m2.machshav.com                vm2.iad.rg.net vm0.iad.rg.net  125.0G   8.0G    1
netsrv.iad.rg.net              vm0.iad.rg.net vm2.iad.rg.net   32.0G   2.0G    1
ns1.machshav.com               vm2.iad.rg.net vm0.iad.rg.net   32.0G   2.0G    1
pfs0.iad.rg.net                vm2.iad.rg.net vm0.iad.rg.net    8.0G   512M    1
pfs.iad.rg.net                 vm2.iad.rg.net vm0.iad.rg.net    8.0G   1.0G    1
rgnet.anycast.censurfridns.dk  vm2.iad.rg.net vm0.iad.rg.net   50.0G   6.0G    2
srv0.iad.rg.net                vm2.iad.rg.net vm0.iad.rg.net   64.0G   2.0G    1
tor0.iad.rg.net                vm2.iad.rg.net vm0.iad.rg.net   32.0G  12.0G    1
usbeacon2.iibex.auckland.ac.nz vm0.iad.rg.net vm2.iad.rg.net   36.0G   1.0G    1
Hostname IP Address Owner and Email
bbgp.rg.net 198.180.150.15 Randy Bush <randy@psg.com>
bbt2.rg.net 198.180.150.61 Cristel Pelsser <cristel.pelsser@uclouvain.be>
bbte.rg.net 198.180.150.60 Cristel Pelsser <cristel.pelsser@uclouvain.be>
bozanicfamily.com 198.180.150.5 Randy Bush <randy@psg.com>
khatovar.hactrn.net 198.180.150.30 Rob Austein <sra@hactrn.net>
m2.macshav.com 198.180.150.45 Steven M Bellovin <smb@cs.columbia.edu>
netsrv.iad.rg.net 198.180.150.13 Randy Bush <randy@psg.com>
ns1.machshav.com 198.180.150.41 Steven M Bellovin <smb@cs.columbia.edu>
pfs0.iad.rg.net 198.180.150.3 Randy Bush <randy@psg.com>
pfs.iad.rg.net 198.180.150.6 Randy Bush <randy@psg.com>
rgnet.anycast.censurfridns.dk 198.180.150.12 Phil Regnauld <pr@x0.dk>
srv0.iad.rg.net 198.180.150.1 Randy Bush <randy@psg.com>
tor0.iad.rg.net 198.180.150.9 Randy Bush <randy@psg.com>
usbeacon2.iibex.auckland.ac.nz 198.180.150.52 Etuate Cocker <ecoc005@aucklanduni.ac.nz>

vm0.iad.rg.net Hardware

vm0.iad.rg.net Disk Configuration

vm0.iad.rg.net:/root# tw_cli info c0

Unit  UnitType  Status         %RCmpl  %V/I/M  Stripe  Size(GB)  Cache  AVrfy
------------------------------------------------------------------------------
u0    RAID-5    OK             -       -       256K    8381.87   RiW    ON

VPort Status         Unit Size      Type  Phy Encl-Slot    Model
------------------------------------------------------------------------------
p0    OK             u0   3.63 TB   SATA  0   -            WDC WD4003FRYZ-01F0
p1    OK             u0   3.63 TB   SATA  1   -            WDC WD4003FRYZ-01F0
p2    OK             u0   3.63 TB   SATA  2   -            WDC WD4003FRYZ-01F0
p3    OK             u0   2.73 TB   SATA  3   -            HITACHI HUA723030AL

Four drive bays seem to be numbered 0-3 left to right

From for i in 0 1 2 3; do smartctl -a -d 3ware,$i /dev/twl0 | grep Serial; done

Unit Model Serial
0 WD4003FRYZ-01F0DB0 VBHVEUTF new as of 2023.05.17
1 WD4003FRYZ-01F0DB0 V1JVGGHG
2 WD4003FRYZ-01F0DB0 V1KW63UG new as of 2023.08.09
3 HITACHI HUA723030ALA640 YVHPV0LA
  • 2023.05.17 replaced p0 K7G9TG6L with VBHVEUTF
  • 2022.05.18 replaced p1 WDC WD3000FYYZ-01UL serial WD-WCC130121922
  • 2023.08.09 replaced p2 WD3000FYYZ-01UL1B0 WD-WCC130095709

vm1.iad.rg.net proxmox

Service Tag: 7WCXDH2
Dell R630
2x 10-Core 2.4 GHz Intel E5-2640V4
256GB DDR4 Memory
H730 Mini RAID controller
4 Gigabit RJ45 network ports
2 10Gb SFP+
iDRAC Enterprise

Unit Model Serial
0 Samsung SSD 870 EVO 4TB S758NX0X504317Z new as of 2025.07.08
1 Samsung SSD 870 EVO 4TB S758NX0X505056R new as of 2025.07.08
2 Samsung SSD 870 EVO 4TB S758NX0X504319J new as of 2025.07.08
3 Samsung SSD 870 EVO 4TB S758NX0X504324X new as of 2025.07.08

vm2.iad.rg.net Hardware

Dell R630 Tag: GLY2W52 Express Code: 36155548982
Dual Intel(R) Xeon(R) CPU E5-2697 v3 @ 2.60GHz
192GB RAM 12x16GB DDR4
BRCM GbE 4P 5720-t rNDC
iDRAC8
iDRAC tools - racadm tools for DRAC8 download the latest here. use racadm getsysinfo
Link for how to download in the future
Documentation for racadm
Part number from Dell for iDRAC8 license is 385-BBHP
How to import and export a license with iDRAC7 or iDRAC8
3ware Inc 9750 Controller

vm2.iad Disk Drives

for i in a b c d; do echo $i; smartctl -a /dev/sd$i | egrep '^(Device Model|Serial)' | cut -c 19-60; done

LUN Serial Model Size
a S6PNNS0T602439V Samsung SSD 870 EVO 2TB
b S6PNNS0T602496T Samsung SSD 870 EVO 2TB
c S6PNNS0T604993A Samsung SSD 870 EVO 2TB
d S6PNNS0T604995Z Samsung SSD 870 EVO 2TB

r0.iad.rg.net FRR

Service Tag: 6TKCMN2
Dell R630
2x 10-Core 2.4 GHz Intel E5-2640V4
64GB DDR4 Memory
H730 Mini RAID controller
4 Gigabit RJ45 network ports
2 10Gb SFP+
iDRAC Enterprise

r0.iad Disk Drives

Unit Model Serial
0 Samsung SSD 870 EVO 500G S6PWNU0Y300444D new as of 2025.07.08
1 Samsung SSD 870 EVO 500G S6PWNU0Y300637D new as of 2025.07.08

r1.iad.rg.net

  • Dell R630 6TL9MN2 Express Service Code: 14849934302
  • 2 x Xeon E5-2640 v4 2.4GHz 10 Cores each
  • 64G RAM
  • PERC H730
  • BRCM 10G/GbE 2+2P 57800 - 2xCopper 2xSFP
  • iDRAC8

r1.iad NICs

NIC MAC
IPMI 58:8A:5A:EE:CA:D2
Integrated NIC 1 Port 1 B8:2A:72:E0:5E:EF
Integrated NIC 1 Port 2 B8:2A:72:E0:5E:F1
Integrated NIC 1 Port 3 B8:2A:72:E0:5E:F3
Integrated NIC 1 Port 4 B8:2A:72:E0:5E:F5

r1.iad Disk Drives

for i in a b; do echo $i; smartctl -a /dev/sd$i | egrep '^(Device Model|Serial)' | cut -c 19-60; done

LUN Serial Model Size
0 S7BWNJ0W650863P Samsung SSD 870 EVO 500GB 500G
1 S7BWNJ0W685314L Samsung SSD 870 EVO 500GB 500G

PDUs

BayTech RPC is accessed via serial from o0.iad.rg.net as pwr0/1
You will face RPC> prompt.  Type
  CONFIG
  ON x
  OFF x
  REBOOT x

pwr0.iad.rg.net (bottom PDU)

1)...r1.iad-left bad
2)...r0.iad.rg.net
3)...vm1.iad.rg.net
4)...vm2.iad.rg.net
5)...sw0.iad.rg.net
6)...vm0.iad.rg.net

pwr1.iad.rg.net (top PDU)

1)...r1.iad-right
2)...vm2.iad.rg.net
3)...r0.iad.rg.net
4)...vm1.iad.rg.net
5)...vm0.iad.rg.net
6)...o0.iad

Decommissioned / Removed

vm1.iad.rg.net Hardware

SuperMicro AS-1022G-URF 2RU Chassis

vm1.iad.rg.net Disk Drives

From megacli -PDList -aALL | egrep 'Coerced|Inquiry'

LUN Serial Model Size
0 WD-WMC130D9JJJZWDC WD3000FYYZ-01UL1B2 2.728 TB
1 WD-WMC130D1CT76WDC WD3000FYYZ-01UL1B2 2.728 TB
2 WD-WMC130D2MZFVWDC WD3000FYYZ-01UL1B2 2.728 TB
3 WD-WMC130D2MZFVWDC WD3000FYYZ-01UL1B2 2.728 TB

SprintLink

  • sl-mst50-ash2, ge-0/0/9 is wired to 204/4/29 with translates to Equinix panel name DC4:01:041210: CP:0204:137587 Ports 27/28. Equinix made the XC between our CFA in our cage and PSG's CFA in their cage. There in no MMR involved in the path. 2024.05.30 Jeffrey Kerrick jkerrick@cogentco.com

  • sl-mst50-ash2, ge-0/0/9, (To PSG peer (AS3927) CCOI: PEER PRIVATE GIGE ^psg-3927-ash2^) 2024.05.30 from BC,

  • port 17-18 in the Ashburn cage 1490

  • A-Side Patch Panel/Module/Port: PP:0103:25916||9

  • Z-Side Customer and Cage Number: SPRINT DC2::01490:SPRINT

  • Z-Side Cabinet Number: 0102

  • Carrier Circuit ID(if applicable): Randy Bush

  • Z-Side Patch Panel/Module/Port: PP:0102:605||17

  • Cable ID: 792604 should be used to reference that patch cable

r1.iad.rg.net Juniper MX80 from IETF DECOMISSIONED 2024.09.12

randy@r1.iad> show chassis hardware
Hardware inventory:
Item             Version  Part number  Serial number     Description
Chassis                                E4642             MX80
Midplane         REV 06   711-031594   YP5258            MX80
PEM 0            Rev 04   740-028288   UH01164           AC Power Entry Module
PEM 1            Rev 04   740-028288   WF04755           AC Power Entry Module
Routing Engine            BUILTIN      BUILTIN           Routing Engine
TFEB 0                    BUILTIN      BUILTIN           Forwarding Engine Processor
  QXM 0          REV 05   711-028408   YL0286            MPC QXM
FPC 0                     BUILTIN      BUILTIN           MPC BUILTIN
  MIC 0                   BUILTIN      BUILTIN           4x 10GE XFP
    PIC 0                 BUILTIN      BUILTIN           4x 10GE XFP
FPC 1                     BUILTIN      BUILTIN           MPC BUILTIN
  MIC 0          REV 22   750-028392   YJ7317            3D 20x 1GE(LAN) SFP
    PIC 0                 BUILTIN      BUILTIN           10x 1GE(LAN) SFP
      Xcvr 0     REV 01   740-011614   PJ717AP           SFP-LX10
      Xcvr 1     REV 01   740-031850   G1908083802       SFP-LX10
    PIC 1                 BUILTIN      BUILTIN           10x 1GE(LAN) SFP
Fan Tray                                                 Fan Tray

r0.iad.rg.net Juniper MX240 from warren Decommissioned 2025.****

randy@r0.iad> show chassis hardware
Hardware inventory:
Item             Version  Part number  Serial number     Description
Chassis                                JN11544AFAFC      MX240
Midplane         REV 07   760-021404   ABAA3443          MX240 Backplane
FPM Board        REV 03   760-021392   ABBA1738          Front Panel Display
PEM 0            Rev 01   740-022697   QCS0931C044       PS 1.2-1.7kW; 100-240V AC in
PEM 2            Rev 03   740-022697   QCS1243C071       PS 1.2-1.7kW; 100-240V AC in
Routing Engine 0 REV 07   740-015113   9009006841        RE-S-1300
CB 0             REV 05   710-021523   ABBA1993          MX SCB
FPC 2            REV 16   750-022765   XM0320            DPCE 20x 1GE + 2x 10GE R
  CPU            REV 03   710-022351   XM4341            DPC PMB
  PIC 0                   BUILTIN      BUILTIN           10x 1GE(LAN)
    Xcvr 0       REV 01   740-011613   PFF29VR           SFP-SX
    Xcvr 9       REV 02   740-011613   PGP5559           SFP-SX
  PIC 1                   BUILTIN      BUILTIN           10x 1GE(LAN)
  PIC 2                   BUILTIN      BUILTIN           1x 10GE(LAN/WAN)
  PIC 3                   BUILTIN      BUILTIN           1x 10GE(LAN/WAN)
Fan Tray 0       REV 01   710-021113   XB1539            MX240 Fan Tray

Removed

hostname switch oob oobname pwr RU
cypress.shrubbery.net s0.03 & s0.13 o0.35 cypress 0.4 removed 2022.08.28
akkht.hactrn.net Eth0 s0.11 o0.11 sra 0.1 2 removed 2022.08.28
akkht.hactrn.net DRAC s0.12 2 removed 2022.08.28
r1.iad.rg.net s0.23 o0.34 r1 equinix Cisco 7206-G1
emu.machshav.com s0.08 o0.40 emu 0.2 Steven M Bellovin <smb@cs.columbia.edu>
emu-2.machshav.com s0.09/10 Steven M Bellovin <smb@cs.columbia.edu>

2025.08.13
