Ashburn DC2 PoP

Sandbox, cage 2020, rack 102
c/o Equinix DC2
21715 Filigree Ct
Ashburn, VA 20147
noc@equinix.com (or ask ERC support@equinix.com folk to escalate to
                 primary on-call NSE)
+1 888 892 0607 equinix 24x7

CURRENT CONTACTS LIST: (2022-05-13)
 Muhammad Waqas Bin Tariq <mwaqas@equinix.com>
 Bheem Lal Nethikar <bnethikar@equinix.com>,

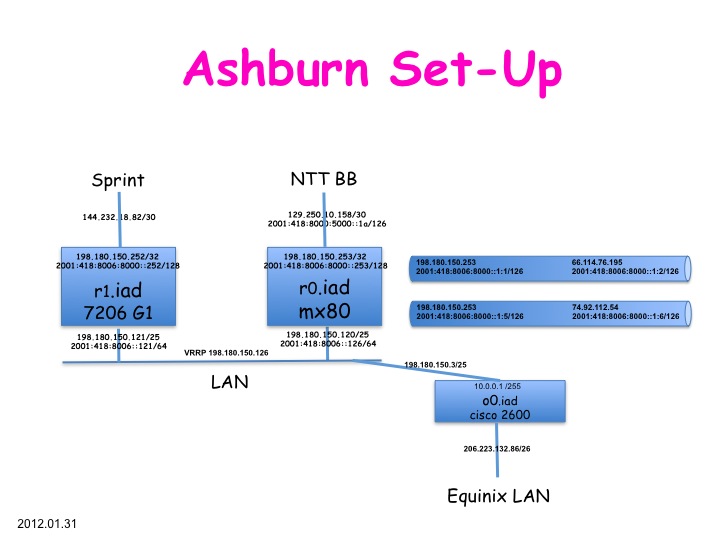

PoP Diagram


To Do

  • Remove akkht.hactrn.net
  • Remove cypress.shrubbery.net
  • Repurpose serial o0.11 to Cisco ASR r2.iad.rg.net craft port
  • Connect an r2.iad ether to an sw0.iad LAN port, maybe GigabitEthernet1/0/3
  • Connect r2.iad MGT ether to sw0.iad, maybe GigabitEthernet1/0/11
  • Connect an r0.iad ether to ASR an r2.iad ether
  • Build an MPLS tunnel from Sprint POS on r1 to a GigE on r2
  • Configure r2.iad for Sprint, LAN, ...

Rack Physical and Wiring

hostname switch oob oobname pwr RU
r1.iad.rg.net s0.f23 o0.34 r1 equinix Cisco 7206-G1
r2.iad.rg.net s0.f23 o0.34 r2 0.5 & equinix 9-10 ASR
r0.iad.rg.net s0.f21 o0.33 r0 equinix 7-8 Juniper MX80
fiber patch panel 5-6
vm0.iad.rg.net s0.02 o0.10 vm0 3
ipmi.vm0.iad.rg.net s0.14 3
akkht.hactrn.net Eth0 s0.11 o0.11 sra 0.1 2 Rob Austein <sra@hactrn.net>
akkht.hactrn.net DRAC s0.12 2 Rob Austein <sra@hactrn.net>
o0.iad.rg.net s0.01/02 Cisco 2621 (MPC860)
cypress.shrubbery.net s0.03 & s0.13 o0.35 cypress 0.4 decommissioned 2019.09.20
sw0.iad.rg.net o0.37 s0 Cisco WS-C3750G-24PS
vm1.iad.rg.net s0.06 o0.38 srv0 0.3
emu.machshav.com s0.08 o0.40 emu 0.2 Steven M Bellovin <smb@cs.columbia.edu>
emu-2.machshav.com s0.09/10 Steven M Bellovin <smb@cs.columbia.edu>
pwr0.iad.rg.net o0.38 pwr0 equinix
  • ASR has 2 1gb Fiberstore SFP+ in ports: GE0 && GE1 (see pic below)
  • ASR has MGMT Ether plugged into MX80 ge-1/1/7
  • Equinix Power Strip aka Leviton
  • photo from 2020.02.18

Hosts on vm0/1.iad.rg.net / 198.180.150.8/4

vm0.iad.rg.net:/root# ./do-stat
Node           DTotal DFree MTotal MNode  MFree Pinst Sinst
vm0.iad.rg.net   8.2T  7.3T  78.7G 39.5G  69.4G     4     7
vm1.iad.rg.net   5.4T  4.5T 125.9G 14.0G 111.4G     8     4

Instance                       Primary_node   Secondary_Nodes Disk/0 Memory
bozanicfamily.com              vm1.iad.rg.net vm0.iad.rg.net   34.0G   1.0G
khatovar.hactrn.net            vm0.iad.rg.net vm1.iad.rg.net  250.0G   4.0G
m2.machshav.com                vm1.iad.rg.net vm0.iad.rg.net  125.0G   8.0G
mail.rg.net                    vm1.iad.rg.net vm0.iad.rg.net   12.0G      -
netsrv.iad.rg.net              vm0.iad.rg.net vm1.iad.rg.net    8.0G   1.0G
pfs0.iad.rg.net                vm1.iad.rg.net vm0.iad.rg.net    8.0G   512M
pfs.iad.rg.net                 vm1.iad.rg.net                   8.0G   1.0G
ran.psg.com                    vm0.iad.rg.net vm1.iad.rg.net   32.0G   4.0G
rgnet.anycast.censurfridns.dk  vm1.iad.rg.net vm0.iad.rg.net   50.0G   6.0G
srv0.iad.rg.net                vm1.iad.rg.net vm0.iad.rg.net   64.0G   2.0G
tor0.iad.rg.net                vm1.iad.rg.net vm0.iad.rg.net   36.0G   4.0G
usbeacon2.iibex.auckland.ac.nz vm0.iad.rg.net vm1.iad.rg.net   36.0G   1.0G
Hostname IP Address Owner and Email
bozanicfamily.com 198.180.150.5 Randy Bush <randy@psg.com>
khatovar.hactrn.net 198.180.150.30 Rob Austein <sra@hactrn.net>
m2.macshav.com 198.180.150.45 Steven M Bellovin <smb@cs.columbia.edu>
netsrv.iad.rg.net 198.180.150.13 Randy Bush <randy@psg.com>
pfs0.iad.rg.net 198.180.150.3 Randy Bush <randy@psg.com>
pfs.iad.rg.net 198.180.150.6 Randy Bush <randy@psg.com>
ran.psg.com 198.180.150.18 Randy Bush <randy@psg.com>
rgnet.anycast.censurfridns.dk 198.180.150.12 Phil Regnauld <pr@x0.dk>
srv0.iad.rg.net 198.180.150.1 Randy Bush <randy@psg.com>
tor0.iad.rg.net 198.180.150.9 Randy Bush <randy@psg.com>
usbeacon2.iibex.auckland.ac.nz 198.180.150.52 Etuate Cocker <ecoc005@aucklanduni.ac.nz>

vm0.iad.rg.net Hardware

vm0.iad.rg.net Disk Configuration

vm0.iad.rg.net:/root# tw_cli info

Ctl   Model        (V)Ports  Drives   Units   NotOpt  RRate   VRate  BBU
------------------------------------------------------------------------
c4    9750-4i      4         4        1       0       1       1      -

vm0.iad.rg.net:/home/randy# tw_cli info c0

Unit  UnitType  Status         %RCmpl  %V/I/M  Stripe  Size(GB)  Cache  AVrfy
------------------------------------------------------------------------------
u0    RAID-5    OK             -       -       256K    8381.87   RiW    ON

VPort Status         Unit Size      Type  Phy Encl-Slot    Model
------------------------------------------------------------------------------
p0    OK             u0   3.63 TB   SATA  0   -            WDC WD4002FYYZ-01B7
p1    OK             u0   3.63 TB   SATA  1   -            WD4003FRYZ-01F0DB0
p2    OK             u0   2.73 TB   SATA  2   -            WDC WD3000FYYZ-01UL
p3    OK             u0   2.73 TB   SATA  3   -            HITACHI HUA723030AL

vm0.iad.rg.net Disk Drive Serial Numbers

From smartctl --all -s on -T verypermissive --device=3ware,$i /dev/twl0 smartctl --all --device=3ware,$i /dev/twl0

Unit Model Serial
0 WD4002FYYZ-01B7CB1 K7G9TG6L
1 WD4003FRYZ-01F0DB0 V1JVGGHG
2 WD3000FYYZ-01UL1B0 WD-WCC130095709
3 HITACHI HUA723030ALA640 YVHPV0LA
  • 2022.05.18 replaced p1 WDC WD3000FYYZ-01UL serial WD-WCC130121922

there is a spare 4TB drive in cardboard atop the cisco

vm1.iad.rg.net Hardware

SuperMicro AS-1022G-URF 2RU Chassis

vm1.iad.rg.net Disk Drives

From megacli -PDList -aALL | egrep 'Coerced|Inquiry'

LUN Serial Model Size
0 WD-WMC130D9JJJZWDC WD3000FYYZ-01UL1B2 2.728 TB
1 WD-WMC130D1CT76WDC WD3000FYYZ-01UL1B2 2.728 TB
2 WD-WMC130D2MZFVWDC WD3000FYYZ-01UL1B2 2.728 TB
3 WD-WMC130D2MZFVWDC WD3000FYYZ-01UL1B2 2.728 TB

PDU

BayTech RPC is accessed via serial from o0.iad.rg.net as pwr0
You will face RPC> prompt.  Type
  CONFIG
  ON x
  OFF x
  REBOOT x

1)...akkht.hactrn.net
2)...emu.machshav.com
3)...srv0.iad.rg.net
4)...cypress.shrubber
5)...sw0.iad.rg.net
6)...vm0.iad.rg.net

2022.08.06
