Seattle Westin PoP
RGnet, LLC.
c/o FiberCloud
2001 6th, Suite 1809
Seattle, WA 98121
FiberCloud Support <support@fibercloud.com>
206 777 9988
24x7@ccom.net 206-854-3444 and 206-353-5558
RGnet rack
Suite 1809
Cabinet C2

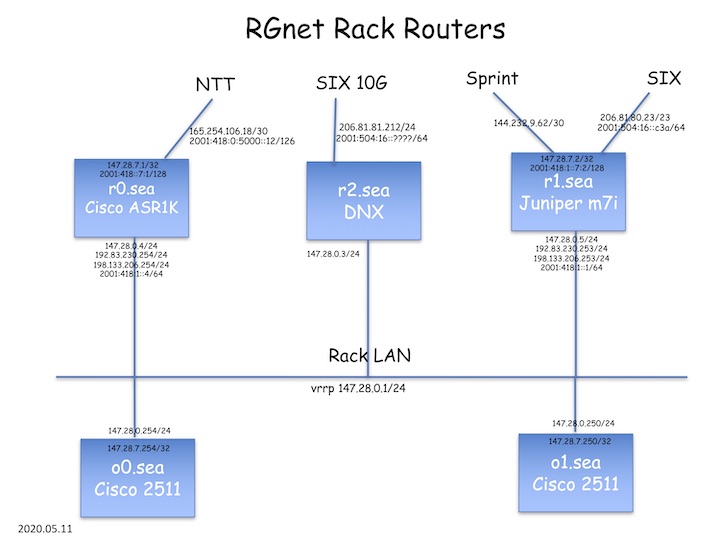

GreenHouse tie-down to Verio Backbone - Rack 204 Panel 9 Port A6
r03.sttlwa01.us.bb so-1/1/0
NTT
USID 278679
r05.sttlwa01.us.bb Gi100/0/0/15
WAN IPs on your side:
165.254.106.18/30
2001:418:0:5000::12/126
SIX 1G to USC
RGnet.SW3.SEA eth1/46
RGnet.1809.CAB.C02.P1.1/2
GHD.1809.CAB.D04.P1.M3
GHD.19FMMR.RR.405.3.M3
SIX.19FMMR.RR.506.7.D3
SIX 1G to r1
RGnet.Juniper.Ge-0/0/1
RGnet.1809.CAB.C02.P1.3/4
GHD.1809.CAB.D04.P1.M4
GHD.19FMMR.RR.405.3.M4
SIX.19FMMR.RR.506.7.E3

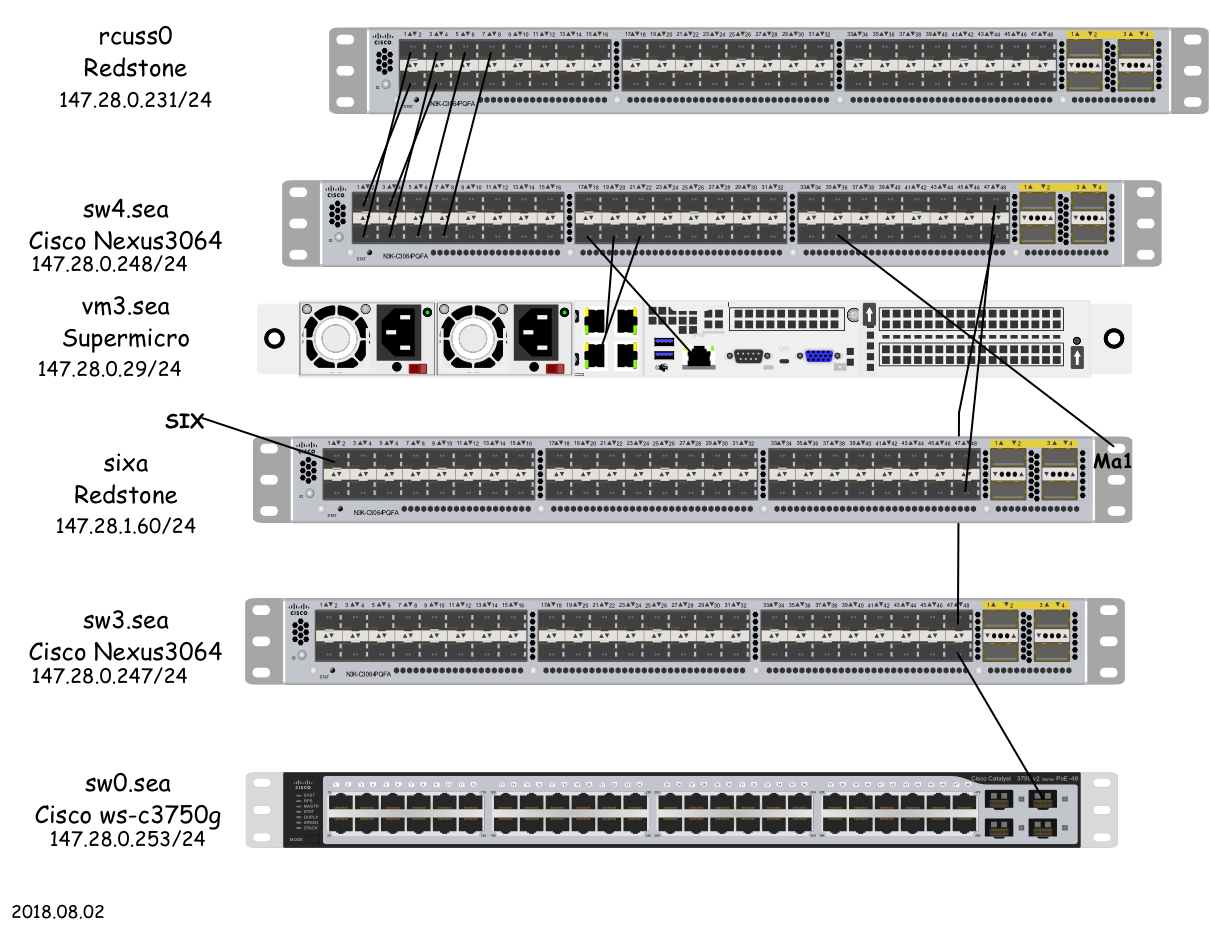

SIX 10G to Arrcus sixa.rg.net
RGnet. sixa.rg.net.Ge-0/0/1
RGnet.1809.CAB.C02.P1.5/6
GHD.1809.CAB.D04.P2.F4
GHD.19FMMR.RR.1001.3.F4
SIX.19FMMR.RR.901.9.A4
SprintLink 1G to r1
RGnet.Juniper.Ge-0/0/2
RGnet.1809.CAB.C02.P1.7/8
GHD.1809.CAB.D04.P1.M5
GHD.19FMMR.RR.405.3.M5
Sprint.19FMMR.RR.604.5.A5 (9/10)
Rack Physical and Wiring
Physical Hosts and Wiring
| hostname | switch | ipmi | oob | oobname | pwr | rack | Model |
|---|---|---|---|---|---|---|---|
| pwr1.sea.rg.net | s0.16 | 2.x? | 43 | ||||
| sw4.sea.rg.net | s3.47 | 1.07 | sw4 | 1.1 | 41 | Cisco Nexus-3064 | |
| rcuss0.rg.net | s0.23 | N/A | 1.08 | rcuss0 | 1.2 | 40 | Redstone |
| vm3.sea.rg.net | s4.20/s4.22 | s4.18 | 1.01 | vm3 | 0.2 | 39 | SuperMicro SuperServer 6019U-TRT |
| r2.sea.rg.net | s4.36 & s4.47 | 1.16 | sixa | 1.8 & 2.02 | 38 | Arrcus Delta 9020S DNX aka sixa.rg.net | |
| rip.psg.com | s4.32 | s0.28 | 1.04 | rip | 0.3 | 36 | NOW VIRT ON VM4 Supermicro 5015M-NTRB w/ Super PDSMU |
| vm2.sea.rg.net | s0.41/s0.31 | s0.6 | 1.14 | vm2 | 2.7 2.1 | 34-35 | SuperMicro AS-2022G-URF 2RU Chassis |
| psg.com | s0.13 | s2.12 | 1.05 | psg | 1.5 | 33 | (see below) |
| seattle01.mux.peering.usc.edu | s0.11 | 0.20 | 31 | Supermicro Ethan Katz-Bassett ethanbkb@gmail.com | |||
| sw3.sea.rg.net | s0.47 | 1.01 | sw3 | 0.7 | 27 | Cisco Nexus-3064 | |
| sw0.sea.rg.net | s3.48 | 1.06 | sw0 | 0.4 | 26 | Cisco WS-C3750G-POE-48 | |
| o1.sea.rg.net | s0.15 | 0.04 | o1 | 2.4 | 24 | Cisco 2511 | |
| pwr2.sea.rg.net | s0.10 | 21 | |||||
| atlas0.sea.rg.net | s0.19 | 20.5 | |||||
| raid0.sea.rg.net | s0.27 | s0.03 | 0.15 | raid0 | 0.6 | 19 | SuperMicro 5018R-WR |
| vm1.sea.rg.net | s0.34/s0.30 | s0.33 | vm1 | 1.2 | 16-17 | (see below) | |
| vm0.sea.rg.net | s0.26/s0.29 | s0.39 | 1.09 | vm0 | 2.5 | 15 | Supermicro - w/ X7DWU |
| pwr3.sea.rg.net | s0.18 | x.3 | 13 | ||||
| pwr0.sea.rg.net | s0.12 | 11 | |||||
| o0.sea.rg.net | s0.05 | 1.13 | o0 | 2.6 | 10 | Cisco 2511 | |
| r0.sea.rg.net | s0.35/46 | 0.06 | r0 | 0.8 & 3.7 | 7 | Cisco ASR1001 commissioned 2018.02.02 | |
| r1.sea.rg.net | s0.17 | 0.02 | r1 | 2.1 & 3.1 | 5-6 | Juniper M7i |
Removed
Removed from Rack
| hostname | switch | ipmi | oob | oobname | pwr | rack | Model |
|---|---|---|---|---|---|---|---|
| dum0.sea.rg.net | s2.23 s2.24 | 1.10 | dum0 | 1.1/1.2 | 42 | Supermicro - w/ PDSMi/PDSMA | |
| work1.psg.com | s1.11 | 1.11 | work0 | 3.7 | 39 | decommissioned 2015.07.20 | |
| bgp.nu | s0.07/17 | 37-38 | Paul Southworth pwsouth@gmail.com | ||||
| sw2.sea.rg.net | s0.48 | 1.02 | sw2 | 0.7 | 27 | Cisco WS-C3750G-POE | |
| sw1.sea.rg.net | s0.01 | 1.07 | sw1 | ?? | 25 | SMC SMC8024L2 | |
| r2.sea.rg.net | s0.14 s2.14 | 0.09? | r2 | 2.8 | 7 | Cisco 1001 | |
| r0.sea.rg.net | s0.03 | 0.01 | r0 | 0.1 & 3.4 | 2-4 | Cisco 7206g2 decommisioned 2018.02.02 |
vm[0-3].sea.rg.net Ganeti Cluster
vm0.sea.rg.net:/root# gnt-node list
Node DTotal DFree MTotal MNode MFree Pinst Sinst
vm0.sea.rg.net 10.9T 6.6T 125.8G 115.5G 54.8G 12 7
vm1.sea.rg.net 5.9T 2.2T 70.7G 60.3G 46.6G 10 11
vm2.sea.rg.net 5.5T 3.5T 94.4G 63.8G 72.9G 11 7
vm3.sea.rg.net 10.9T 10.2T 125.8G 95.4G 49.4G 7 1
BackChannel
net 10, drdb Ports for vm[0-3]
| Switch | Port | Host | Ether | IP Address |
|---|---|---|---|---|
| sw0 | 29 | vm0.sea | eth1 | 10.0.0.100 |
| sw0 | 30 | vm1.sea | eth5 | 10.0.0.101 |
| sw0 | 31 | vm2.sea | eth1 | 10.0.0.102 |
| sw4 | 22 | vm3.sea | eth1 | 10.0.0.103 |
Hosts on vm0/1/2/3.sea.rg.net / 147.28.0.14/15/16/29
The Guest VMs
| Instance | Primary_node | Secondary_Node | MaxMem | DiskUsage | IP_Address | SysAdmin |
|---|---|---|---|---|---|---|
| adrilankha.hactrn.net | vm1.sea.rg.net | vm0.sea.rg.net | 4G | 260G | 147.28.0.19 | Rob Austein sra@hactrn.net |
| archive.psg.com | vm1.sea.rg.net | vm0.sea.rg.net | 1G | 100G | 147.28.0.8 | Randy Bush randy@psg.com |
| atlas9.sea.rg.net | vm1.sea.rg.net | 2G | 16G | 147.28.0.36 | Randy Bush randy@psg.com | |
| atlasvm.sea.rg.net | vm1.sea.rg.net | 2G | 8G | 147.28.0.33 | Randy Bush randy@psg.com | |
| build-u.rpki.net | vm1.sea.rg.net | vm2.sea.rg.net | 1G | 100G | 147.28.0.28 | Rob Austein sra@hactrn.net |
| cache0.sea.rpki.net | vm2.sea.rg.net | vm0.sea.rg.net | 1G | 100G | 147.28.0.84 | Randy Bush randy@psg.com |
| cb.rg.net | vm0.sea.rg.net | 4G | 128G | 147.28.0.44 | Randy Bush randy@psg.com | |
| cc.rg.net | vm0.sea.rg.net | 4G | 128G | 147.28.0.45 | Randy Bush randy@psg.com | |
| chezrandy.x0.dk | vm2.sea.rg.net | 2G | 200G | 147.28.0.56 | Phil Regnauld pr@x0.dk | |
| dataviz.org | vm0.sea.rg.net | vm31sea.rg.net | 8G | 64G | 147.28.0.22 | John Ellson john.ellson@gmail.com |
| gogs.rg.net | vm3.sea.rg.net | vm0.sea.rg.net | 2G | 64G | 147.28.0.10 | Randy Bush randy@psg.com |
| hans.rg.net | vm0.sea.rg.net | vm2.sea.rg.net | 3G | 250G | 147.28.0.42 | Hans Kuhn hak@flyingpoodle.com |
| hiroshima.bogus.com | vm1.sea.rg.net | vm0.sea.rg.net | 3G | 250G | 147.28.0.82 | Hans Kuhn <hak@flyingpoodle.com |
| jitsi.rg.net | vm1.sea.rg.net | vm0.sea.rg.net | 2G | 32G | 147.28.0.50 | Randy Bush randy@psg.com |
| julian.rg.net | vm2.sea.rg.net | 2.0G | 16.0G | 147.28.0.57 | Julian Del Fiore delfiore@unistra.fr Cristel Pelsser pelsser@unistra.fr | |
| nagasaki.bogus.com | vm0.sea.rg.net | vm1.sea.rg.net | 4G | 250G | 147.28.0.81 | Joel Jaeggli joelja@bogus.com |
| netsrv.sea.rg.net | vm1.sea.rg.net | vm2.sea.rg.net | 1G | 200G | 147.28.0.7 | Randy Bush randy@psg.com |
| nlring.sea.rg.net | vm2.sea.rg.net | vm1.sea.rg.net | 2G | 32G | 147.28.0.89 | Randy Bush randy@psg.com |
| okui.psg.com | vm0.sea.rg.net | vm1.sea.rg.net | 1G | 1001G | 147.28.0.25 | Patrick Okui pokui@psg.com |
| pfs.sea.rg.net | vm3.sea.rg.net | 1G | 8G | 147.28.0.32 | Randy Bush randy@psg.com | |
| pws0 | vm2.sea.rg.net | vm1.sea.rg.net | 4G | 100G | 147.28.0.52 | Paul Southworth pwsouth@gmail.com |
| pws1 | vm1.sea.rg.net | vm0.sea.rg.net | 8G | 500G | 147.28.0.53 | Paul Southworth pwsouth@gmail.com |
| r1.securerouting.org | vm1.sea.rg.net | vm2.sea.rg.net | 2G | 100G | 147.28.0.131 | Sam Weiler weiler@watson.org |
| rcuss-build.rg.net | vm3.sea.rg.net | vm2.sea.rg.net | 64G | 128G | 147.28.0.170 | Rob Austein sra@hactrn.net |
| rcuss-mgt.rg.net | vm3.sea.rg.net | vm2.sea.rg.net | 2G | 32G | 147.28.0.169 | Randy Bush randy@psg.com |
| rfd.sea.rg.net | vm0.sea.rg.net | 3G | 32G | 147.28.0.10 | Clemens Mosig clemens.mosig@fu-berlin.de | |
| rip.psg.com | vm3.sea.rg.net | vm2.sea.rg.net | 4.0G | 32.1G | 147.28.0.39 | Randy Bush randy@psg.com |
| rip1.psg.com | vm2.sea.rg.net | vm1.sea.rg.net | 1G | 36G | 147.28.0.31 | Randy Bush randy@psg.com |
| shout.rg.net | vm1.sea.rg.net | vm2.sea.rg.net | 1G | 16G | 147.28.0.38 | Randy Bush randy@psg.com |
| tamias.rg.net | vm0.sea.rg.net | vm2.sea.rg.net | 2.0G | 17.0G | 147.28.0.80 | Randy Bush randy@psg.com |
| turing.sr-ix.com | vm2.sea.rg.net | vm3.sea.rg.net | 2G | 256G | 147.28.0.17 | Tom Jennings tom@sr-ix.com |
| valid.rg.net | vm0.sea.rg.net | vm2.sea.rg.net | 8G | 200G | 147.28.0.30 | Matthias Wählisch m.waehlisch@fu-berlin.de |
| vault.sea.rg.net | vm3.sea.rg.net | 1G | 8G | 147.28.0.2 | Randy Bush randy@psg.com | |
| work0.psg.com | vm0.sea.rg.net | vm1.sea.rg.net | 4G | 100G | 147.28.0.37 | Randy Bush randy@psg.com |
| xmpp.rg.net | vm1.sea.rg.net | vm3.sea.rg.net | 1G | 36G | 147.28.0.6 | Randy Bush randy@psg.com |
| zoe.dns.gh | vm2.sea.rg.net | vm1.sea.rg.net | 1G | 200G | 147.28.0.23 | Joel Jaeggli joelja@bogus.com |
| zzyzx.sigpipe.org | vm0.sea.rg.net | vm1.sea.rg.net | 2G | 100G | 147.28.0.13 | Michael Elkins melkins@sigpipe.org |
vm0.sea.rg.net Hardware
-
2 Intel Xeon E5-2630 V4 2.2 GHz LGA 2011 85W
-
128G Kingston ValueRAM 64GB (4 x 16GB) 288-Pin DDR4 SDRAM ECC Registered DDR4 2133 (PC4 17000) Server Memory Model KVR21R15D4K4/64
vm0.sea drives, numbered left to right
From for i in a b c d; do smartctl -a /dev/sd$i | egrep 'Model|Serial|Capacity'; done
| Bay | Model | Serial | |
|---|---|---|---|
| 0 | WD6002FFWX-68TZ4N0 | NCGW1TVV | 2016.09.24 |
| 1 | WD6002FFWX-68TZ4N0 | NCGWP5SV | 2016.09.24 |
| 2 | WD6002FFWX-68TZ4N0 | NCGWD6NV | 2016.09.24 |
| 3 | WD6002FFWX-68TZ4N0 | NCGX7MTV | 2016.09.24 |
vm1.sea.rg.net Hardware
Cisco R210-2121605W - part 74-7341-02 - serial QCI1549A9AY
- Effectively: 72GB RAM, 4TB datastore1, 8 cores
- UCS C210 M2 Svr, 2x E5640, 2x4GB, SAS Expand, 1PS
- 2 x 2.66GHz Xeon E5640 80W CPU/12MB cache/DDR3 1066MHz
- 4 x 16GB DDR3-1066MHz RDIMM/PC3-8500/quad rank/Low-Dual Volt
- 2 x 4GB DDR3-1333MHz RDIMM/PC3-10600/dual rank 1Gb DRAMs
- LSI 6G MegaRAID 9261-8i card (RAID 0,1,5,6,10,60) - 512WC
- 8 x 500GB 6Gb SATA 7.2K RPM SFF hot plug/drive sled mounted
- Intel Quad port GbE Controller (E1G44ETG1P20)
vm1.sea.rg.net Disk Drives
From megacli -PDList -aALL | egrep 'Coerced|Inquiry'
also use sudo smartctl -a -d sat+megaraid,8 /dev/sda
megacli -PDList -aall | egrep '^(Slot|Firmware)' is also useful
megacli -PDList -aALL | egrep 'Inquiry' | awk '{print $3}' | cut -c1-8
| LUN | Serial | Model | Size |
|---|---|---|---|
| 01 | 9XF0VD4E | ST9500620NS | 464.7 Gb |
| 02 | 9XF0TQ93 | ST9500620NS | 464.7 Gb |
| 03 | 9XF0VCK3 | ST9500620NS | 464.7 Gb |
| 04 | 9XF0WE31 | ST9500620NS | 464.7 Gb |
| 05 | 9XF0WEYZ | ST9500620NS | 464.7 Gb |
| 06 | 9XF0VDFF | ST9500620NS | 464.7 Gb |
| 07 | 9XF0VBXF | ST9500620NS | 464.7 Gb |
| 08 | 9XF1YZBY | ST9500620NS | 464.7 Gb |
| 09 | 9XF0TL1A | ST9500620NS | 464.7 Gb |
| 10 | 9XF31KKG | ST9500620NS | 464.7 Gb |
| 11 | 9XF0WDD2 | ST9500620NS | 464.7 Gb |
| 12 | 9XF0VRFD | ST9500620NS | 464.7 Gb |
| 13 | 9XF21BHB | ST9500620NS | 464.7 Gb |
| 14 | 9XF0WCVD | ST9500620NS | 464.7 Gb |
| 15 | 9XF0TQ80 | ST9500620NS | 464.7 Gb |
| 16 | 9XF0VR81 | ST9500620NS | 464.7 Gb |
Drive Bays from Cisco Install Manual
| HDD_01 | HDD_02 | HDD_03 | ||
| HDD_04 | HDD_05 | HDD_06 | ||
| HDD_07 | HDD_08 | HDD_09 | HDD_10 | HDD_11 |
| HDD_12 | HDD_13 | HDD_14 | HDD_15 | HDD_16 |
vm2.sea.rg.net Hardware
SuperMicro AS-2022G-URF 2RU Chassis
- H8DGU-F Motherboard
- Two AMD Opteron 6320 Abu Dhabi 2.8GHz
- 64GB RAMM as two sets of Kingston 32GB (4 x 8GB) 240-Pin DDR3 SDRAM ECC Unbuffered
- 32G, two sets of two DIMMs of Crucial Crucial 16GB (2 x 8GB) 240-Pin DDR3 SDRAM ECC Unbuffered DDR3L 1600 (PC3L 12800) Server Memory Model CT2KIT102472BD160B
- LSI MegaRAID SATA/SAS 9260-8i
- Five HGST Ultrastar 7K3000 HUA723020ALA640 (0F12455) 2TB 7200 RPM 64MB Cache SATA 6.0Gb/s
vm2.sea.rg.net Disk Drives
From megacli -PDList -aALL | egrep 'Coerced|Inquiry'
also use `vm1.sea.rg.net:/home/randy# sudo smartctl -a -d sat+megaraid,8 /dev/sda
smartctl 6.4 2014-10-07 r4002 [x86_64-linux-3.16.0-7-amd64] (local build)
Copyright (C) 2002-14, Bruce Allen, Christian Franke, www.smartmontools.org
START OF INFORMATION SECTION
vm2.sea.rg.net:/home/randy# megacli -PDList -aALL | egrep 'Coerced|Inquiry'
Non Coerced Size: 1.818 TB [0xe8d088b0 Sectors]
Coerced Size: 1.818 TB [0xe8d00000 Sectors]
Inquiry Data: WD-WCC6N3FVKC2SWDC WD2002FFSX-68PF8N0 81.00A81
Non Coerced Size: 1.818 TB [0xe8d088b0 Sectors]
Coerced Size: 1.818 TB [0xe8d00000 Sectors]
Inquiry Data: MK0251YGKB56HAHitachi HUA723020ALA640 MK7OAA10
Non Coerced Size: 1.818 TB [0xe8d088b0 Sectors]
Coerced Size: 1.818 TB [0xe8d00000 Sectors]
Inquiry Data: MK0251YGKB4N2AHitachi HUA723020ALA640 MK7OAA10
Non Coerced Size: 1.818 TB [0xe8d088b0 Sectors]
Coerced Size: 1.818 TB [0xe8d00000 Sectors]
Inquiry Data: MK0251YGKB58LAHitachi HUA723020ALA640 MK7OAA10
Non Coerced Size: 2.728 TB [0x15d40a3b0 Sectors]
Coerced Size: 2.728 TB [0x15d400000 Sectors]
Inquiry Data: MJ1311YNG6XEVAHitachi HDS5C3030ALA630 MEAOA5C0
Model Family: Seagate Constellation.2 (SATA) Device Model: ST9500620NS Serial Number: 9XF0VD4E LU WWN Device Id: 5 000c50 03fb7cdd0 Firmware Version: CC02 User Capacity: 500,107,862,016 bytes [500 GB] Sector Size: 512 bytes logical/physical Rotation Rate: 7200 rpm Form Factor: 2.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ATA8-ACS T13/1699-D revision 4 SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Sun Mar 3 20:41:38 2019 UCT SMART support is: Available - device has SMART capability. SMART support is: Enabled
| LUN | Serial | Model | Size |
|---|---|---|---|
| 0 | WCC6N3FVKC2SWDC | WD2002FFSX-68PF8N0 | 1.818 TB |
| 1 | MK0251YGKB56HA | MK7OAA10 | 1.818 TB |
| 2 | MK0251YGKB4N2A | MK7OAA10 | 1.818 TB |
| 3 | MK0251YGKB58LA | MK7OAA10 | 1.818 TB |
| 4 | MJ1311YNG6XEVA | MEAOA5C0 | 2.728 TB |
2021.08.19 LUN0 drive MK0171YFK3TVGA removed
vm3.sea.rg.net Hardware
SuperMicro SuperServer 6019U-TRT
- X10DRW-iT Motherboard
- Two Intel Ten Core 2.4Ghz Xeon 25MB cache 8.0GT/s QPI (90W) (E5-2640v4)
- 128G RAM - 8x16GB DDR4 2400Mhz 19200 ECC/REG
- Four HGST 6TB Enterprise SATA3 6Gb/s 7200RPM 128MB
vm3.sea drives, we guess numbered left to right
From for i in a b c d; do smartctl -a /dev/sd$i | egrep 'Model|Serial|Capacity'; done
| Bay | Model | Serial | Capacity | Installed |
|---|---|---|---|---|
| 0 | HGST HUS726060ALE610 | K1J48AGD | 6TB | 2017.08.17 |
| 1 | HGST HUS726060ALE610 | K1J2PTND | 6TB | 2017.08.17 |
| 2 | HGST HUS726060ALA640 | AR11001EV17LLB | 6TB | 2020.05.01 |
| 3 | HGST HUS726060ALE610 | K1J46RHD | 6TB | 2017.08.17 |
psg.com
SUPERMICRO AS-1012G-MTF 1U Rackmount H8SGL-F mobo
From for i in 0 1 2 3 4; do smartctl -a /dev/ada$i | egrep 'Model|Serial|Capacity'; done
| LUN | Model | Serial | Size |
|---|---|---|---|
| 0 | WDC WD2000F9YZ-09N20L0 | WD-WCC1P0469969 | 2TB |
| 1 | WDC WD2005FBYZ-01YCBB1 | WD-WMC6N0F1F8SD | 2TB |
WDC WD2000F9YZ-09N20L0 WD-WCC1P0648270 removed from ata1 2017.04.09
WD-WCC1P0654846 replaced on 2017.03.04
raid0.sea.rg.net
- 5018R-WR Chassis + MoBo
- X10SRW-F Motherboard
- Intel Xeon® Processor E5-2609 v4
- Samsung DDR4 2133MHzCL15 16GB RegECC 2Rx4 (PC4 2133) Internal Memory M393A2G40DB0-CPB
- FreeBSD USB key left in USB port
raid0.sea.rg.net Drive Bays
From for i in {0..3}; do smartctl -a /dev/ada$i | egrep 'Model|Serial|Capacity'; done
| LUN | Model | Serial | Capacity | Date |
|---|---|---|---|---|
| 0 | WDC WD60EFRX-68L0BN1 | WD-WX41DA5F88N9 | 6tb | 2018.12.09 |
| 1 | WDC WD60EFRX-68L0BN1 | WD-WX11D363T2Y5 | 6tb | 2018.12.09 |
| 2 | WDC WD60EFRX-68L0BN1 | WD-WX11D3678XTL | 6tb | 2018.12.09 |
| 3 | WDC WD60EFRX-68L0BN1 | WD-WX41D75LN9KC | 6tb | 2018.12.09 |
rip.psg.com
| LUN | Serial | Model | Size |
|---|---|---|---|
| 0 | 9QE7MXMC | ST3250820NS | 250G |
| 1 | WD-WMC5C0D5MXU1 | WDC WD2000F9YZ-09N20L1 01.01A02 | 2TB |
| 2 | 9QE7MY84 | ST3250820NS | 250G |
| 3 | WD-WMC5C0E2C2L0 | WDC WD2000F9YZ-09N20L1 01.01A02 | 2TB |
Switches
| name | mfr | model | ip sddress |
|---|---|---|---|
| sw0.sea.rg.net | Cisco | WS-C3750G-48PS | 147.28.0.253 |
| sw3.sea.rg.net | Cisco | Nexus3064 48x10GE +4 | 147.28.0.239 |
| sw4.sea.rg.net | Cisco | Nexus3064 48x10GE +4 | 147.28.0.238 |
Remoived
| sw1.sea.rg.net | SMC | SMC8024L2 | 147.28.0.252 |
|---|---|---|---|
| sw2.sea.rg.net | Cisco | WS-C3750G-24PS | 147.28.0.246 |
Miscelaneous Data
Spare Drives
| spares in westin | |||
| HGST | H3D30003254S | YNG1E3ZC | 3TB |
| Seagate | ST31000528AS | 6VPCVN1Y | 1TB |
| Seagate | ST3750640A8 | 3QD06D5B | 750G |
| HGST | 118032816 | YFJLBZ5A | 2TB |
r1.sea gigether pic left to right
| LAN | copper |
| unused | copper |
| six | copper |
| unused | fiber sfp |
Westin NTT/Verio 100baseFX
PSG-STTLWA01-FE-VDR001 (199.238.113.9)
r05.sttlwa01.us.bb.gin.ntt.net.
1000 LX
Westin NTT/Verio OC3
PSG-STTLWA01-OC3-VDR001 (129.250.11.41)
r02.sttlwa01.us.bb.gin.ntt.net
SM IR
FastEthernet5/6 is up, line protocol is up (connected)
Hardware is C6k 100Mb 802.3, address is 00d0.0135.840a (bia 00d0.0135.840a) Description: AX: PSG - local wire
Westin OC3c sprint facility # 10038527
SprintLink noc 800-232-6895
noc@sprint.net
FiberCloud tie-down to Sprint in MMR - Rack 303 Panel 1 Port L2 Single Mode
Router Topology
[
]
New Switching
[
]
2021.08.19
