Ashburn DC2 PoP
Sandbox, cage 2020, rack 102
c/o Equinix DC2
21715 Filigree Ct
Ashburn, VA 20147
noc@equinix.com (or ask ERC support@equinix.com folk to escalate to
primary on-call NSE)
+1 888 892 0607 equinix 24x7
CURRENT CONTACTS LIST: (2022-05-13)
Muhammad Waqas Bin Tariq <mwaqas@equinix.com>
Bheem Lal Nethikar <bnethikar@equinix.com>,
Circuits
- Circuit ID 20438058 in cage 2020 is Route Views to IX

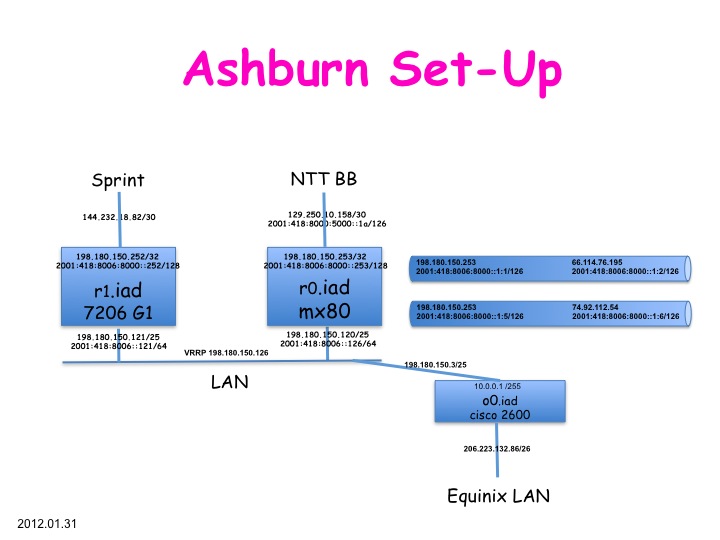

PoP Diagram
To Do
- Build an MPLS tunnel from Sprint POS on r1 to a GigE on r2
- Configure r2.iad for Sprint, LAN, ...
Equipment
- sw0 is a Cisco WS-C3750G-24PS
- o0 is a Cisco 2621 (MPC860) processor (revision 0x102) w/ 61440K/4096K
- ASR 1001 has 2 1gb Fiberstore SFP+ in ports
- Equinix Power Strip aka Leviton
- photo from 2020.02.18
Rack Physical and Wiring
| hostname | switch | oob | oobname | pwr | RU | |
|---|---|---|---|---|---|---|
| r1.iad.rg.net | s0.23 | o0.34 | r1 | equinix | Cisco 7206-G1 | |
| r2.iad.rg.net | s0.28 | o0.36 | r2 | 0.5 & equinix | 9-10 | ASR 1001 |
| r0.iad.rg.net | s0.21 | o0.33 | r0 | equinix | 7-8 | Juniper MX80 |
| fiber patch panel | 5-6 | |||||
| vm0.iad.rg.net | s0.02 | o0.XX | vm0 | 3 | ||
| ipmi.vm0.iad.rg.net | s0.14 | 3 | ||||
| o0.iad.rg.net | s0.01/02 | vm2.usb | Cisco 2621 (MPC860) | |||
| sw0.iad.rg.net | o0.37 | s0 | Cisco WS-C3750G-24PS | |||
| vm1.iad.rg.net | s0.06 | o0.38 | srv0 | 0.3 | ||
| emu.machshav.com | s0.08 | o0.40 | emu | 0.2 | Steven M Bellovin <smb@cs.columbia.edu> | |
| emu-2.machshav.com | s0.09/10 | Steven M Bellovin <smb@cs.columbia.edu> | ||||
| pwr0.iad.rg.net | o0.41 | pwr0 | equinix | |||
| pwr1.iad.rg.net | o0.43 | pwr1 | equinix | |||
| vm2.iad.rg.net | s0.07 | o0.35 | vm2 | 0.2 & 0.4 |
Removed
| hostname | switch | oob | oobname | pwr | RU | |
|---|---|---|---|---|---|---|
| cypress.shrubbery.net | s0.03 & s0.13 | o0.35 | cypress | 0.4 | removed 2022.08.28 | |
| akkht.hactrn.net Eth0 | s0.11 | o0.11 | sra | 0.1 | 2 | removed 2022.08.28 |
| akkht.hactrn.net DRAC | s0.12 | 2 | removed 2022.08.28 |
Ethernet Ports
| hostname | main ether | ipmi | drbd |
|---|---|---|---|
| vm0.iad.rg.net | sw0.02 | sw0.14 | sw0.15 |
| vm1.iad.rg.net | sw0.06 | --- | sw0.16 |
| vm2.iad.rg.net | sw0.07 | sw0.13 | sw0.17 |
Hosts on vm0/1.iad.rg.net / 198.180.150.8/4
vm0.iad.rg.net:/root# ./do-stat
Node DTotal DFree MTotal MNode MFree Pinst Sinst
vm0.iad.rg.net 8.2T 7.3T 78.7G 39.5G 69.4G 4 7
vm1.iad.rg.net 5.4T 4.5T 125.9G 14.0G 111.4G 8 4
Instance Primary_node Secondary_Nodes Disk/0 Memory
bozanicfamily.com vm1.iad.rg.net vm0.iad.rg.net 34.0G 1.0G
khatovar.hactrn.net vm0.iad.rg.net vm1.iad.rg.net 250.0G 4.0G
m2.machshav.com vm1.iad.rg.net vm0.iad.rg.net 125.0G 8.0G
mail.rg.net vm1.iad.rg.net vm0.iad.rg.net 12.0G -
netsrv.iad.rg.net vm0.iad.rg.net vm1.iad.rg.net 8.0G 1.0G
pfs0.iad.rg.net vm1.iad.rg.net vm0.iad.rg.net 8.0G 512M
pfs.iad.rg.net vm1.iad.rg.net 8.0G 1.0G
ran.psg.com vm0.iad.rg.net vm1.iad.rg.net 32.0G 4.0G
rgnet.anycast.censurfridns.dk vm1.iad.rg.net vm0.iad.rg.net 50.0G 6.0G
srv0.iad.rg.net vm1.iad.rg.net vm0.iad.rg.net 64.0G 2.0G
tor0.iad.rg.net vm1.iad.rg.net vm0.iad.rg.net 36.0G 4.0G
usbeacon2.iibex.auckland.ac.nz vm0.iad.rg.net vm1.iad.rg.net 36.0G 1.0G
| Hostname | IP Address | Owner and Email |
|---|---|---|
| bozanicfamily.com | 198.180.150.5 | Randy Bush <randy@psg.com> |
| khatovar.hactrn.net | 198.180.150.30 | Rob Austein <sra@hactrn.net> |
| m2.macshav.com | 198.180.150.45 | Steven M Bellovin <smb@cs.columbia.edu> |
| netsrv.iad.rg.net | 198.180.150.13 | Randy Bush <randy@psg.com> |
| pfs0.iad.rg.net | 198.180.150.3 | Randy Bush <randy@psg.com> |
| pfs.iad.rg.net | 198.180.150.6 | Randy Bush <randy@psg.com> |
| ran.psg.com | 198.180.150.18 | Randy Bush <randy@psg.com> |
| rgnet.anycast.censurfridns.dk | 198.180.150.12 | Phil Regnauld <pr@x0.dk> |
| srv0.iad.rg.net | 198.180.150.1 | Randy Bush <randy@psg.com> |
| tor0.iad.rg.net | 198.180.150.9 | Randy Bush <randy@psg.com> |
| usbeacon2.iibex.auckland.ac.nz | 198.180.150.52 | Etuate Cocker <ecoc005@aucklanduni.ac.nz> |
vm0.iad.rg.net Hardware
- Supermicro SYS-6016T-URF with X8DTU-F mobo
- Power-A&B - UL24-3#24
vm0.iad.rg.net Disk Configuration
vm0.iad.rg.net:/root# tw_cli info
Ctl Model (V)Ports Drives Units NotOpt RRate VRate BBU
------------------------------------------------------------------------
c4 9750-4i 4 4 1 0 1 1 -
vm0.iad.rg.net:/home/randy# tw_cli info c0
Unit UnitType Status %RCmpl %V/I/M Stripe Size(GB) Cache AVrfy
------------------------------------------------------------------------------
u0 RAID-5 OK - - 256K 8381.87 RiW ON
VPort Status Unit Size Type Phy Encl-Slot Model
------------------------------------------------------------------------------
p0 OK u0 3.63 TB SATA 0 - WDC WD4002FYYZ-01B7
p1 OK u0 3.63 TB SATA 1 - WD4003FRYZ-01F0DB0
p2 OK u0 2.73 TB SATA 2 - WDC WD3000FYYZ-01UL
p3 OK u0 2.73 TB SATA 3 - HITACHI HUA723030AL
vm0.iad.rg.net Disk Drive Serial Numbers
From smartctl --all -s on -T verypermissive --device=3ware,$i /dev/twl0
smartctl --all --device=3ware,$i /dev/twl0
| Unit | Model | Serial |
|---|---|---|
| 0 | WD4002FYYZ-01B7CB1 | K7G9TG6L |
| 1 | WD4003FRYZ-01F0DB0 | V1JVGGHG |
| 2 | WD3000FYYZ-01UL1B0 | WD-WCC130095709 |
| 3 | HITACHI HUA723030ALA640 | YVHPV0LA |
- 2022.05.18 replaced p1 WDC WD3000FYYZ-01UL serial WD-WCC130121922
there is a spare 4TB drive in cardboard atop the cisco
vm1.iad.rg.net Hardware
SuperMicro AS-1022G-URF 2RU Chassis
- H8DGU-F Motherboard
- Two 12-core AMD Opteron 6344 Abu Dhabi 2.6GHz
- Crucial 128G 8 x 16GB 240-Pin DDR3 SDRAM ECC Registered DDR3 1600 (PC3 12800) Server Memory
- LSI MegaRAID SATA/SAS 9260-4i 6Gb/s PCI-Express 2.0
- Four Western Digital RE WD3000FYYZ 3TB 7200 RPM 64MB Cache SA T A 6.0Gb/s 3.5" Enterprise Internal Hard Drives
vm1.iad.rg.net Disk Drives
From megacli -PDList -aALL | egrep 'Coerced|Inquiry'
| LUN | Serial | Model | Size |
|---|---|---|---|
| 0 | WD-WMC130D9JJJZWDC | WD3000FYYZ-01UL1B2 | 2.728 TB |
| 1 | WD-WMC130D1CT76WDC | WD3000FYYZ-01UL1B2 | 2.728 TB |
| 2 | WD-WMC130D2MZFVWDC | WD3000FYYZ-01UL1B2 | 2.728 TB |
| 3 | WD-WMC130D2MZFVWDC | WD3000FYYZ-01UL1B2 | 2.728 TB |
vm2.iad.rg.net Hardware
- Dell R630 GLY2W52 express code 36155548982
- iDRAC8, no KVM :(
- iDRAC tools - racadm tools for DRAC8 download the latest here. use
racadm getsysinfo - Link for how to download in the future
- Documentation for racadm
- Part number from Dell for iDRAC8 license is 385-BBHP
PDUs
BayTech RPC is accessed via serial from o0.iad.rg.net as pwr0
You will face RPC> prompt. Type
CONFIG
ON x
OFF x
REBOOT x
pwr0.iad.rg.net
1)...unknown
2)...emu.machshav.com
3)...vm1.iad.rg.net
4)...vm2.iad.rg.net
5)...sw0.iad.rg.net
6)...vm0.iad.rg.net
pwr1.iad.rg.net
1)...unused
2)...vm2.iad.rg.net
3)...unused
4)...unused
5)...unused
6)...unused
2022.09.01
