Dallas Google PoP

New Google POP

Site DFW 28
Cage 4000.40
1950 N Stemmons Freeway
Suite 4000
Dallas, TX 75207

Racks 4-11 4-12
  RGnet in 4-12
  IETF/Deadalus/RGnet in 4-11

Shipping Address:
 Google - chris morrow
 c/o: Infomart Suite 4000
 1950 N Stemmons Freeway
 Dallas, TX 75207

Rack Physical and Wiring

hostname switch ipmi oob oobname pwr rack
o2.dfw.rg.net sw99-42 1.8 o2 Cyclades® ACS Advanced Console Server
r0.dfw.rg.net-rp0 0.45 0.01 r00 subfl 03-13
r0.dfw.rg.net-rp0mgt 0.33 03-13
r0.dfw.rg.net-rp1 0.?? 0.02 r01 03-13
r0.dfw.rg.net-rp1mgt 0.34 03-13
[r0.2/0/4 LAN] 0.04 03-13
[r0.2/0/5 ntt fiber] 0.05 03-13
[r0.2/0/6 spare] 0.06 03-13
[r0.2/0/7 equinix ix] 0.15 03-13
sw0.dfw.rg.net 0.13 sw0 1 17
[equnix IX fiber] 0.46
r1.dfw.rg.net.2/0 0.07 r1 18-21
r1.dfw.rg.net.2/1 0.08 18-21
r1.dfw.rg.net.2/2 0.09 18-21
r1.dfw.rg.net.2/3 0.10 18-21
r1.dfw.rg.net.mgt 0.43 18-21
o1.dfw.rg.net 0.40 0.aux 1.1 22
panduit cover-up 23
o0.dfw.rg.net 0.44 1.aux 0.1 24
pwr1.dfw.rg.net 0.42 o2.9 / o2.10 0.15 pwr1 subfl 26
pwr0-blue.dfw.rg.net 0.18 o2.16 pwr0-blue subfl -
raid0.dfw.rg.net 0.12 0.26 0.04 nfs0 0.5/1.5 31-33
dfw0.psg.com 0.11 0.31 0.03 dfw0 0.3/1.3 34
sw1.dfw.rg.net 0.46 1.01 sw1 2 35 ???
vm0.dfw.rg.net 1 2.31 1.10 vm0 0.4/1.4 35-36
vm1.dfw.rg.net 1 2.32 o2.41 vm1 0.4/1.4 35-36
vm2.dfw.rg.net 1 2.33 o2.42 vm2 0.4/1.4 35-36
vm3.dfw.rg.net 1 2.34 o2.43 vm3 0.4/1.4 35-36
kingsx.richosman.com 0.21 o2.48 kingsx 0.6/1.6 37
b0.noc.ietf.org xx o2.45 b0 xx 99
paddington.richosman 0.22 o2.47 paddington 0.8/1.8 37
vm0.dfx.rg.net 2.27 2.25(drbd) 2.20 0.25&26 vm0.dfx pwr0b B1-9 pwr0r B1-9 42
vm1.dfx.rg.net 2.28 2.26(drbd) 2.19 0.27&28 vm1.dfx pwr0b B1-10 pwr0r B1-10 43
dallas01.mux.peering.usc.edu 0.37/0.39 o2.46 usc 0.7/1.7 44

vm0.dfx.rg.net vm1.dfx.rg.net

VMs are Supermicro A+ Server 1114S-WTRT Systems
With Supermicro H12SSW-NT Motherboards
With one AMD EPYCTM 7443P Single Socket Processor 24-Core 2.85GHz
With 256G of RAM each
And 2 Samsung 250GB 970 EVO+ Series - M.2 NVMe PCIe (<1DWPD) (MZ-V7S250B)
And 8 Samsung 960GB 883 DCT Series - 2.5" SSD SATA 6Gb/s (<1DWPD) (MZ-7LH960NE)
Serial Numbers: iX1210A-IXN S/N's A1-86827 and A1-86828

vm0/1/2/3.dfw.rg.net Ganeti Cluster / 198.180.152.30/31/32/33

VMs are Supermicro X8DTT-HF Motherboards with 48G of RAM each in ​827H-R1200B Chassis or ​SC827H-R1400B Chassis 12 SATA-3 250G Drives model WDC WD2502ABYS-0.

vm ipmi e0 e1
vm0 sw2-32 sw2-37 sw2-43
vm1 sw2-33 sw2-38 sw2-44
vm2 sw2-34 sw2-39 sw2-45
vm3 sw2-35 sw2-50 sw2-45

VM Node Layout (from rear, rack DFW28-04-12)
vm0 vm2
vm1 vm3

vm[0-3].dfw.rg.net Disk Drives

for i in a b c; do echo -n "sd$i "; smartctl -a /dev/sd$i | grep Serial; done

Bay vm drive Model Serial Size Date
A0 vm3 sdc WD2000F9YZ WMC5C0D3HDAV 2TB 2015.03.16
A1 vm3 sdb WD2000F9YZ WMC5C0D3TV0R 2TB 2015.03.16
A2 vm3 sda WD2000F9YZ WX11D363TV6F 6TB 2018.01.10 was WMC5C0D5KYPP
B0 vm2 sdc WD2000F9YZ WMC5C0D2NV6N 2TB 2015.03.16
B1 vm2 sdb WD2005FBYZ WMC6N0M3AEHR 2TB 2018.11.03 was WMC5C0D623ZS
B2 vm2 sda WD2000F9YZ WMC5C0D75CRL 2TB 2015.03.16
C0 vm1 sdc WD2000F9YZ WMC5C0D61JYX 2TB 2015.03.16
C1 vm1 sdb WD2000F9YZ WMC5C0DA1006 2TB 2015.03.16
C2 vm1 sda WD2000F9YZ WMC6N0H8FVYN 2TB 2018.01.07 was WMC5C0D44TEU
D0 vm0 sdc WD2003FYYS WMAY00749145 2TB 2021.02.21 was WMC5C0D2APXE
D1 vm0 sdb WD2000F9YZ WMC5C0D34PT0 2TB 2015.03.16
D2 vm0 sda WD2000F9YZ WMC5C0D2HXNV 2TB 2015.03.16

Ganeti Cluster / 198.180.152.30/31/32/33

vm0.dfw.rg.net:/root# ./do-stat
Node           DTotal DFree MTotal MNode MFree Pinst Sinst
vm0.dfw.rg.net   3.6T  3.2T  47.2G 42.4G 39.6G     3     1
vm1.dfw.rg.net   3.6T  3.4T  47.2G  908M 45.5G     0     1
vm2.dfw.rg.net   3.6T  2.7T  47.2G 41.0G 36.1G     4     4
vm3.dfw.rg.net   3.6T  2.8T  47.2G 40.1G 37.3G     4     3

Hosts on vm0/1/2/3.dfw.rg.net

Instance Primary_node Secondary_Node MaxMem DiskUsage IP_Address SysAdmin
ca.rg.net vm3.dfw.rg.net vm1.dfw.rg.net 4.0G 128.0G 198.180.152.6 Randy Bush randy@psg.com
cu0.dfw.rg.net vm2.dfw.rg.net vm3.dfw.rg.net 512M 12.0G 198.180.152.71 Steven M Bellovin smb@cs.columbia.edu John Koh <koh@…>
git.rg.net vm3.dfw.rg.net vm2.dfw.rg.net 2.0G 34.0G 198.180.152.8 Randy Bush randy@psg.com
icir.dfw.rg.net vm3.dfw.rg.net vm2.dfw.rg.net 1.0G 32.0G 198.180.152.57 Bill Marczak billmar@gmail.com
netsrv.dfw.rg.net vm3.dfw.rg.net 1.0G 100G 198.180.152.15 Randy Bush randy@psg.com
nms.rg.net vm3.dfw.rg.net vm0.dfw.rg.net 2.0G 20G 198.180.152.9 Randy Bush randy@psg.com
petunia.hactrn.net vm2.dfw.rg,net 6G 120G 198.180.152.200 Rob Austein sra@hactrn.net
pfs0.dfw.rg.net vm0.dfw.rg.net vm2.dfw.rg.net 512M 8.1G 198.180.152.62 Randy Bush randy@psg.com
rb-build.dfw.rg.net vm1.dfw.rg.net vm2.dfw.rg.net 16G 150.1G 198.180.152.62 Randy Bush randy@psg.com
sf.rg.net vm1.dfw.rg.net 16G 728G 198.180.152.89 Simone Ferlin simone@ferlin.io
wp.rg.net vm1.dfw.rg.net 4G 64G 198.180.152.56 Randy Bush randy@psg.com
ymbk.com vm2.dfw.rg.net vm3.dfw.rg.net 512M 16.1G 198.180.152.10 Randy Bush randy@psg.com

nfs0.dfw.rg.net

MoBo

nfs0.dfw.rg.net Disk Drives

for i in 0 1 2 3 4 5 6 7; do tw_cli /c2/p$i show serial; done
Port Model Serial Size Date
p0 ST4000DM000-1F2168 Z300L98C 4TB don't know
p1 WD4000F9YZ-09N20L1 WD-WCC5D1DS4012 4TB 2019.04.07
p2 WD60EFRX-68L0BN1 WD-WX41DA57H7UJ 6TB 2018.03.09
p3 WD4000F9YZ-09N20L1 WD-WCC5D2KHHYE8 4TB 2016.06.09
p4 ST4000DM000-1F2168 Z300KBMM 4TB don't know
p5 ST4000DM000-1F2168 Z300KBQN 4TB don't know
p6 ST4000DM000-1F2168 Z300L8J5 4TB don't know
p7 WD4000F9YZ-09N20L1 WD-WMC5D0D7V0L9 4TB 2015.12.13
p1 ST4000DM000-1F2168 Z300FKES 4TB removed 2019.04.07
p2 ST4000DM000-1F2168 Z300L9T3 4TB removed 2018.03.09
incoming HUS724040ALS640 PBK4K70X 4TB 2015.12.18

Physical Drive layout
4 5 6 7
0 1 2 3

raid0.dfw.rg.net

Mobo Supermicro X7SB4/E IPMI AOC-IPMI20-E

raid0 disk drive physical order markings on drive carriers
00 10 20 30
01 11 21 31
02 12 22 32
03 13 23 33
for i in 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16; do
   echo -n "1/$i  ";
   smartctl -i -d hpt,1/$i /dev/hptrr | grep ^Serial;
   done
Bay ID Drive Name Serial Number
20 1/1 da0 JBOD-1-1 WD-WMAZA9378538
21 1/2 da1 JBOD-1-2 MK0171YFKMA4AG
22 1/3 da2 JBOD-1-3 WD-WCC300755734
23 1/4 da3 JBOD-1-4 WD-WMAZA9520754
00 1/5 da4 JBOD-1-5 WD-WCAVY0114154
01 1/6 da5 JBOD-1-6 WD-WMC5C0D9L6HV
02 1/7 da6 JBOD-1-7 WD-WCC6N5UY8H5P
03 1/8 da7 JBOD-1-8 WD-WCC300759632
30 1/9 da8 JBOD-1-9 WD-WCAVY0111166
31 1/10 da9 JBOD-1/10 WD-WCC6N6VTE2NF
32 1/11 da10 JBOD-1/11 WD-WMC5C0D8Z7FV
33 1/12 da11 JBOD-1/12 WD-WMC6N0J6S9AV
10 1/13 da12 JBOD-1/13 MK0171YFKMA59G
11 1/14 da13 JBOD-1/14 WD-WMC6N0F8FU0U
12 1/15 da14 JBOD-1/15 WD-WCAVY0090692
13 1/16 da15 JBOD-1/16 WD-WCC6N5CLHYSS
  • da10 WD-WCAVY0127426 replaced 2016.09.15
  • da1 S2F06GX5 replaced 2016.01.2
  • da2 WD-WCAVY0112831 replaced 2014.05.12
  • da5 WD-WCAVY0107135 replaced 2017.03.25
  • da13 W1E0B4NJ replaced 2017.06.xx
  • da6 WD-WCAVY0127865 replaced 2018.01.07
  • da6 WD-WMC6N0H8K48M replaced 2021.01.16
  • da9 WD-WCAVY0117958 replaced 2021.03.15
  • da15 WD-WCC4M5VJ4UK3 replaced 2021.06.18
  • da9 WD-WMAY04440674 replaced 2021.08.27

dfw0.psg.com

dfw0 drives for i in 4 5 6 7; do echo /dev/ad$i; smartctl -a /dev/ad$i | egrep 'Model|Serial'; done
Bay Model Serial
ada0 ST31000340NS 9QJ3Q29E 1TB
ada1 WD20EADS-00R6B0 WCAVY0388932 2TB
ada2 WD2005FBYZ-01YCBB1 WMC6N0F2KZU6 2TB
ada3 ST31000340NS 9QJ3M5N4 1TB

dfw0 disk drive physical order

ada4 ada6 ada5 ada7
ada0 ada2 ada1 ada3

logical drive labels

label/disk00 ada0s3
label/disk01 ada1s3
label/disk02 ada2s1
label/disk03 ada3s1

Disgusting Details

r0 cisco 12406
r1 Juniper MX240
sw0 cisco 2960G-48TC-L with fiber to 12406
sw1 Juniper EX2200-48T-4G
dfw0 1ru compute server SuperMicro SYS-6015W-NTRB w/ X7DWU
dfw1 3ru big raid server SuperMicro CSE-836TQ-R800B w/ X7SBE
dfw2 2ru Junosphere virtualization server
o0 cisco 2511 with copper to sw0 and serial cables to all craft ports
o1 cisco 2511 with copper to sw0 and serial cables to all craft ports
o2 Cyclades® ACS Advanced Console Server
pwr0 Servertech Horizontal Power Strip (8port) Part Number: CW-8H2-C20
pwr1 Servertech Horizontal Power Strip (8port) Part Number: CW-8H2-C20

---

Power
    SO1-A:5C2.2-62/64
    SO2-A:5C2.2-66/68
    SO1-B:5D2.2-62/64
    SO2-B:5D2.2-66/68
    C-Side is Blue and that = "A" feed
    D-Side is Yellow and that = "B" feed
    [ SO2-B:5D2.2-66/68 will not be used ]

The demarc for the xconnects is as follows:
    pp01.dfw06
    137-138 M3 Future
    139-140 M4 Future
    141-142 M5 Equinix IX Cable ID #20466027 Terminated on CP:0104:1068601 ports 3/4
    143-144 M6 NTT/Verio r08.dllstx09.us.bb g0/6/0/29

Rge Equinix order info for the exchange fiber:
Ordering contact- Chris Morrow and/or CSM- Shazyra Irizarry
Technical contact – Randy Bush  <randy@psg.com>
IBX- DA1
Order:  1-97362053795
WOA-    3-97445043133 (IX Port Install)
WOA-    3-97448754941 (NCC Cable install)
Serial # 20466027 ; terminated on CP:0104:1068601 ports 3/4

---

Dallas Equinix Colo, Downstairs

Google demarc for the riser cable on the Equinix end is Suite 1034 Cage
00372 Cabinet 105

NTT/Verio TDI
Cage 220, Cab 101 FP#1, Port NA, SMF/SC.
r08.dllstx09.us.bb g0/6/0/29

Media: MMF
Connector: SC

---  ntt circuit ---

EQUINIX INC. - Cross Connect Order Complete - 817885.1.1.2
Completed On: 08-JUN-2009
IBX: DA1
Type of Order: Cross Connect
Cage: DA1::00080:EQUINIX.COM
Cabinet Number: 0101
A-Side Patch Panel/Module/Port: PP:0105:2288||1
Z-Side Customer and Cage Number: YOUTUBE, LLC
     DA1::00372:YOUTUBE
Z-Side Cabinet Number: 0105
Carrier Circuit ID(if applicable): EQUINIX SANDBOX
Z-Side Patch Panel/Module/Port: VP:0105:69862||143
Cable ID: 1234912

EQUINIX INC. - Cross Connect Order Complete - 817885.2.1.2
Completed On: 05-JUN-2009
IBX: DA1
Type of Order: Cross Connect
Cage: DA1::00080:EQUINIX.COM
Cabinet Number: 0101
A-Side Patch Panel/Module/Port: PP:0105:74459||3
Z-Side Customer and Cage Number: NTT AMERICA, INC.
     DA1::00220:NTT AMERICA, INC. (Verio)
Z-Side Cabinet Number: 0101
Carrier Circuit ID(if applicable): EQUINIX SANDBOX
Z-Side Patch Panel/Module/Port: PP:0101:2375||15
Cable ID: 1234913

For both crossconnects, even though the "Cabinet Number" field shows
"0101", the actual Equinix A-Side cab is "0105" as listed in the panel
info.  And to reduce cabling and points of failure, the IBX site
technicians said that they would be connecting both crossconnects
directly into each other rather than with an intermediate patch cable.

--- equinix exchange ---

csw7.da1, gig 0/35, Sandbox/RGNet, IX, circuit id 1236454

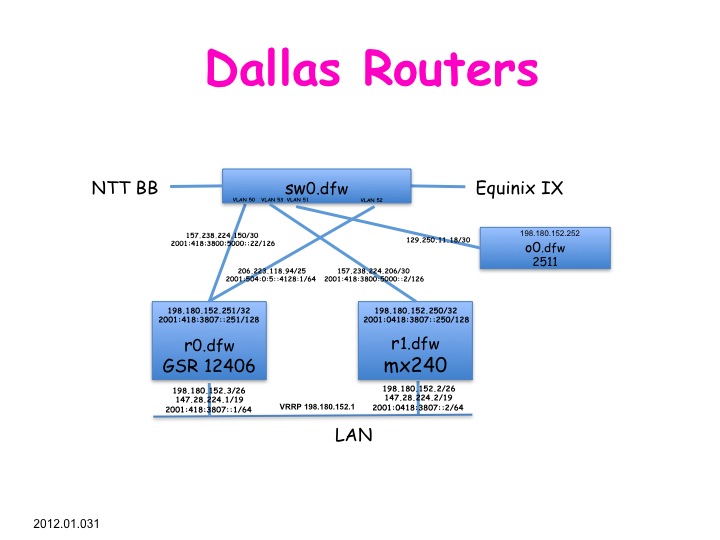

Routers

[120131.dallas-routers.jpg]

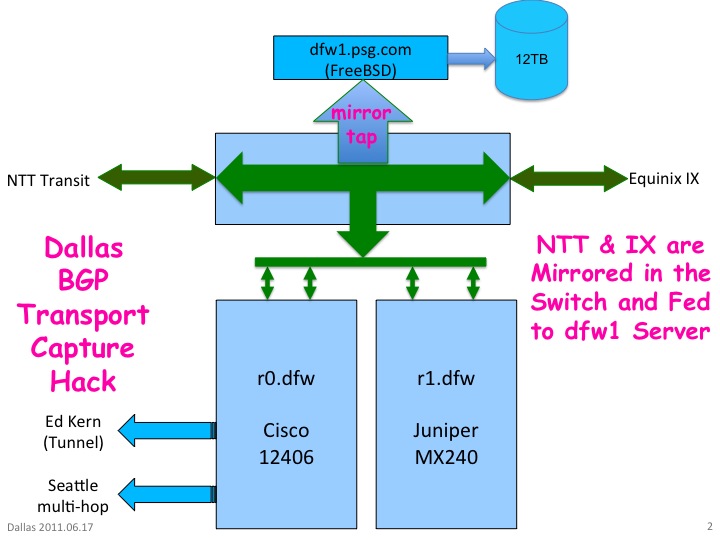

Tapping BGP Feeds

[110617.dfw-data-tap.jpg]

Old Google PoP

We were in Google POP in Via West

Viawest/Dataside
1950 Stemmons Freeway, Suite 2033
Dallas TX 75027
+1-214-231-0162
Mark for "inside delivery"

Google PoP DFW06
Rack Location: 6.3
Rack: ESW E-00589-01, Black Caster and Mounting Rails, No Door, 7Ft.

2021.06.27

  1. vm servers' ethers are connected to sw2.dfw as follows: ↩︎

  2. PTSS/B is connected to power 0.2/1.2 and controls both sw0 and sw1 ↩︎
