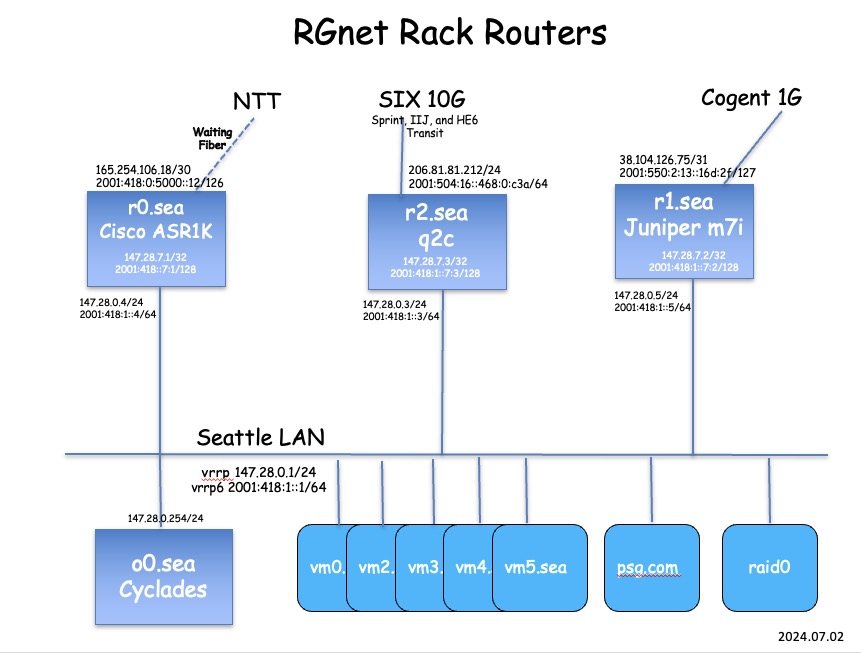

# Seattle Westin/NTT PoP ## Block Diagram ![240702.seattle.jpg](../pics/240702.seattle.jpg) ## Administrative Information ``` NTT Westin 2001 6th Avenue, Suite 900CA Seattle, WA 98121 Rack D.05 Power RPP900-A2-#30 & RPP900-A1-#18 - NEMA L5-20R for NEMA L5-20P Plug ``` [Maybe These PDUs](https://www.neweggbusiness.com/Product/Product.aspx?Item=9B-12-120-335]

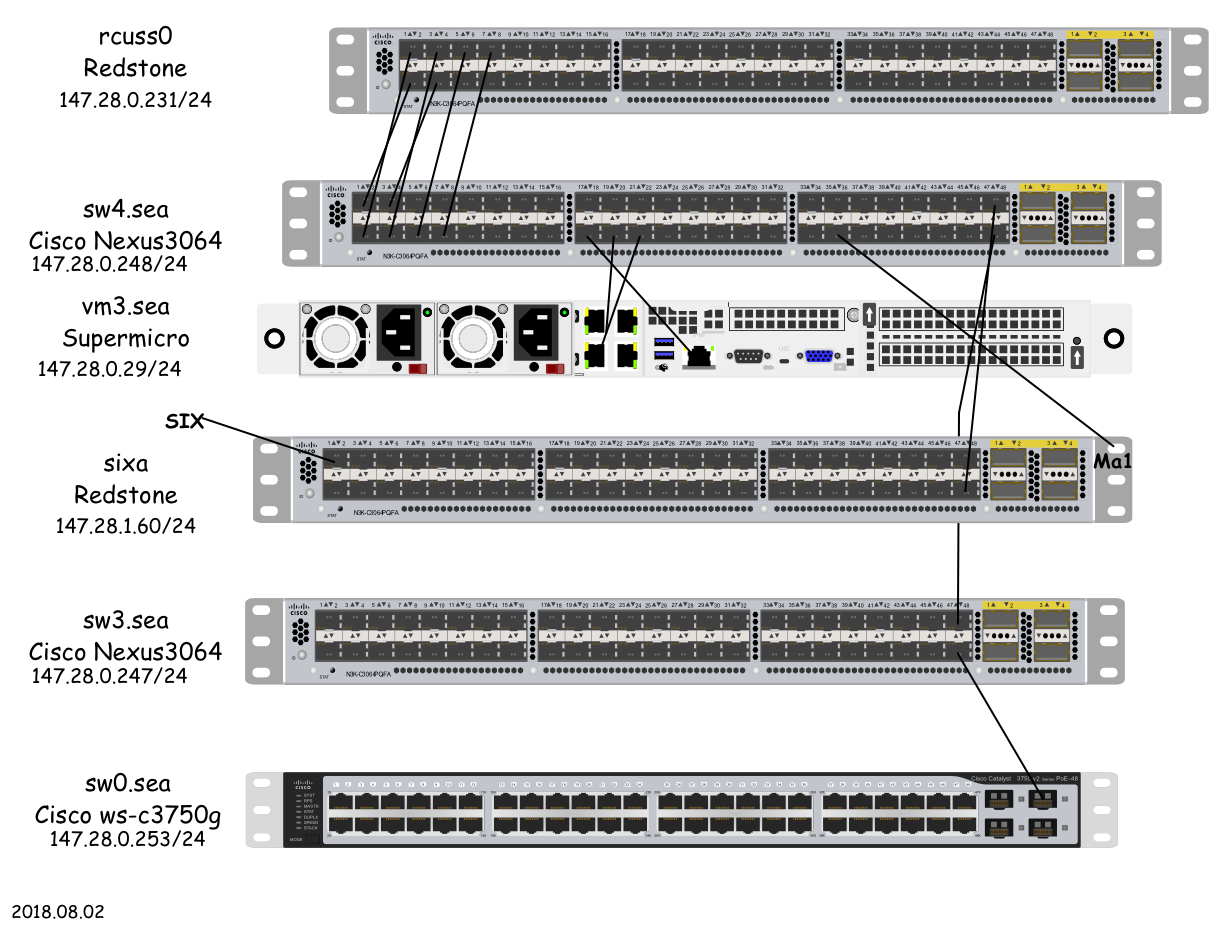

Fiber Patch ``` SIX 10G to r2,sea.rg.net A.OF.12.01 OCSX2.A05 MR5A.04.A05 MR5D-09.M06 NTT MRR Cross-Connects C164427: 19th fl MMR / MMR / 102 / 1901.01.02.03 23, 24 SC C164428: 19th fl MMR / MMR / 305 / 1901.03.05.05 15,16 SC C164443: 19th fl MMR / MMR / 903 / 1901.09.03.01 13,14 SC Cogent 1G to r1.sea.rg.net Gi100/0/0/2-rcr61.b007274-0.sea02 MR5D.09.C06 (Cogent port on patch panel in meet-me-room) MR5A.04.A06 (eviocative port on patch panel in meet-me-room) OCXS2.A06 A.OF.12.02 (patch panel port in RGnet rack) Cogent Customer Support: 1-877-726-4368, support@cogentco.com SIX 1G to peering.usc.edu A.OF.12.03 OCSX1.M06 MR5A.02.M07 MR5d.09.D06 ``` --- ## KOMO Rack Rack SEF.A.0F.012 Physical Hosts and Wiring | hostname | switch | ipmi | oob | oobname | pwr | rack | Model | | :---------------------------- | ----------- | ----- | ---- | ------- | --------- | ----- | -------------------------------------------------| | sw4.sea.rg.net | s3.47 | | 0.08 | sw4 | 3L 3R | 41 | Cisco Nexus-3064 | | rcuss0.rg.net | s0.23 | N/A | 0.01 | rcuss0 | 4L 4R | 40 | Redstone | | vm3.sea.rg.net | s4.20/s4.22 | s4.18 | ???? | vm3 | 5L 5R | 39 | SuperMicro SuperServer 6019U-TRT | | r2.sea.rg.net | s4.47 s4.36 | | 0.09 | r2 | 6L 6R | 37-38 | Arrcus S9600-72XC-R q2c | | vm4.sea.rg.net | s4.45/s4.46 | s3.5 | 0.13 | NOOP | 9L 9R | 36 | Dell 630 | | vm2.sea.rg.net | s0.41/s0.31 | s0.41 | 0.05 | vm2 | 10L 10R | 34-35 | SuperMicro AS-2022G-URF 2RU Chassis | | psg.rg.net | s0.13 | s0.19 | 0.02 | psg | 7L | 33 | (see below) | | seattle01.mux.peering.usc.edu | s0.11 s0.38 | 0.20 | | | 11R | 31 | Supermicro Ethan Katz-Bassett | vm1.sea.rg.net | s0.34/s3.30 | s0.33 | 0.04 | NOOP | 18L | 16-17 | (see below) |
--- ## pwr0 and pwr1 MACs | name | side | model | MAC | | :--- | ------ | ------- | ----------------- | | pwr0 | left | AP7930 | 00:C0:B7:C8:49:BC | | pwr0 | right | AP7930 | 00:C0:B7:30:1C:16 | ## 100mb interfaces on sw0 * atlas probe * o0.sea.rg.net * four power bars * psg.com ipmi * peering.usc.edu ipmi * ipmi.vm1.sea.rg.net * ipmi.vm0.sea.rg.net * pwr0.sea.rg.net * pwr1.sea.rg.net --- ## vm[0-5].sea.rg.net Ganeti Cluster `gnt-instance list -o "name,pnode,snodes,sda_size,oper_ram,vcpus"` ``` vm0.sea.rg.net:/root# ./do-stat Node DTotal DFree MTotal MNode MFree Pinst Sinst vm0.sea.rg.net 10.9T 5.7T 125.8G 96.0G 99.3G 8 5 vm2.sea.rg.net 5.5T 4.6T 94.4G 31.8G 85.5G 4 5 vm3.sea.rg.net 10.9T 7.1T 503.8G 204.3G 423.1G 3 0 vm4.sea.rg.net 3.6T 2.2T 251.8G 44.6G 240.1G 6 4 vm5.sea.rg.net 7.3T 2.0T 188.5G 115.6G 145.5G 9 8 Instance Primary_node Secondary_Nodes Disk/0 MemoryVCPUs a1000004.rg.net vm5.sea.rg.net 8.0G 2.0G 1 adrilankha.hactrn.net vm5.sea.rg.net vm0.sea.rg.net 260.0G 4.0G 1 archive.psg.com vm0.sea.rg.net vm5.sea.rg.net 128.0G 2.0G 1 build-u.rpki.net vm5.sea.rg.net vm2.sea.rg.net 100.0G 1.0G 1 chezrandy.x0.dk vm2.sea.rg.net 300.0G 2.0G 1 hans.rg.net vm4.sea.rg.net vm0.sea.rg.net 251.0G 4.0G 2 hiroshima.bogus.com vm5.sea.rg.net vm0.sea.rg.net 250.0G 2.0G 1 lucky.bgp.nu vm5.sea.rg.net vm2.sea.rg.net 20.0G 4.0G 1 lxd0.sea.rg.net vm4.sea.rg.net 32.0G - 8 m1.rg.net vm4.sea.rg.net 32.0G 2.0G 1 mon1.rg.net vm0.sea.rg.net vm5.sea.rg.net 100.0G 4.0G 1 nagasaki.bogus.com vm0.sea.rg.net vm5.sea.rg.net 250.0G 4.0G 1 netsrv.sea.rg.net vm4.sea.rg.net vm5.sea.rg.net 210.0G 1.0G 1 nlring.sea.rg.net vm2.sea.rg.net vm5.sea.rg.net 32.0G 2.0G 1 ns0.rg.net vm3.sea.rg.net vm4.sea.rg.net 32.0G 8.0G 1 ns1.securerouting.org vm2.sea.rg.net 100.0G 2.0G 1 okui.psg.com vm0.sea.rg.net vm5.sea.rg.net 1001.0G 1.0G 1 pfs.sea.rg.net vm3.sea.rg.net 8.0G 1.0G 1 psg.com vm5.sea.rg.net vm0.sea.rg.net 2.0T 16.0G 3 pws1 vm0.sea.rg.net vm5.sea.rg.net 500.0G 8.0G 1 rcuss-build.rg.net vm3.sea.rg.net 316.0G 64.0G 16 rip.psg.com vm5.sea.rg.net vm4.sea.rg.net 32.0G 32.0G 8 shout.rg.net vm5.sea.rg.net vm2.sea.rg.net 24.0G 2.0G 1 tamias.rg.net vm0.sea.rg.net vm2.sea.rg.net 17.0G 2.0G 1 turing.worldpowersystems.com vm2.sea.rg.net vm4.sea.rg.net 250.0G 2.0G 1 vault.sea.rg.net vm4.sea.rg.net vm2.sea.rg.net 8.0G 1.0G 1 viz2.rg.net vm0.sea.rg.net vm4.sea.rg.net 64.0G 4.0G 1 wg.sea.rg.net vm5.sea.rg.net 10.0G 2.0G 1 zoe.dns.gh vm4.sea.rg.net vm0.sea.rg.net 32.0G 1.0G 1 zzyzx.sigpipe.org vm0.sea.rg.net vm5.sea.rg.net 100.0G 2.0G 1 ``` ### Guest VMs on vm0/2/3/4/5.sea.rg.net / 147.28.0.14/15/16/29 | Instance | IP_Address | SysAdmin | | --------------------- | ------------ | ------------------------------------- | | a1000004.rg.net | 147.28.0.33 | Randy Bush | | adrilankha.hactrn.net | 147.28.0.19 | Rob Austein | | archive.psg.com | 147.28.0.8 | Randy Bush | | build-u.rpki.net | 147.28.0.28 | Rob Austein | | chezrandy.x0.dk | 147.28.0.56 | Phil Regnauld | | hans.rg.net | 147.28.0.42 | Hans Kuhn | | hiroshima.bogus.com | 147.28.0.82 | Hans Kuhn | | lxd0.sea.rg.net | | Hans Kuhn | | nagasaki.bogus.com | 147.28.0.81 | Joel Jaeggli | | netsrv.sea.rg.net | 147.28.0.7 | Randy Bush | | nlring.sea.rg.net | 147.28.0.89 | Randy Bush | | ns0.rg.net | 147.28.1.39 | Randy Bush | | ns1.securerouting.org | 147.28.0.45 | Sam Weiler | | okui.psg.com | 147.28.0.25 | Patrick Okui | | pfs.sea.rg.net | 147.28.0.32 | Randy Bush | | psg.com | 147.28.0.62 | Randy Bush | | pws1 | 147.28.0.53 | Paul Southworth | | rcuss-build.rg.net | 147.28.0.170 | Rob Austein | | rip.psg.com | 147.28.0.39 | Randy Bush | | shout.rg.net | 147.28.0.38 | Randy Bush | | tamias.rg.net | 147.28.0.80 | Randy Bush | | turing.worldpowersystems.com | 147.28.0.17 | Tom Jennings | | vault.sea.rg.net | 147.28.0.2 | Randy Bush | | viz2.rg.net | 147.28.0.27 | Stephen North | | wg.sea.rg.net | 147.28.0.11 | Randy Bush | | zoe.dns.gh | 147.28.0.23 | Joel Jaeggli | | zzyzx.sigpipe.org | 147.28.0.13 | Michael Elkins | ### Back/DRBD Channel net 10, drdb Ports for vm[0-4] | Switch | Port | Host | Ether | IP Address | | ------ | ---- | ------- | ----- | ---------- | | sw0 | 29 | vm0.sea | eth1 | 10.0.0.100 | | sw0 | 30 | vm1.sea | eth5 | 10.0.0.101 | | sw0 | 31 | vm2.sea | eth1 | 10.0.0.102 | | sw4 | 22 | vm3.sea | eth1 | 10.0.0.103 | | sw4 | 46 | vm4.sea | enp130s0f1 | 10.0.0.104 | | sw4 | 45 | vm5.sea | enp216s0f1 | 10.0.0.105 | ## vm0.sea.rg.net Hardware - [SuperMicro SuperServer 6018R-MT Chassis](https://www.supermicro.com/products/system/1u/6018/sys-6018r-mt.cfm) - [​SuperMicro X10DRL-i MotherBoard](https://www.supermicro.com/products/motherboard/Xeon/C600/X10DRL-i.cfm) - 2 Intel Xeon E5-2630 V4 2.2 GHz LGA 2011 85W - 128G Kingston ValueRAM 64GB (4 x 16GB) 288-Pin DDR4 SDRAM ECC Registered DDR4 2133 (PC4 17000) Server Memory Model KVR21R15D4K4/64 ### vm0.sea drives, numbered left to right From `for i in a b c d; do smartctl -a /dev/sd$i | egrep 'Model|Serial|Capacity'; done` | Bay | Model | Serial | | | --- | -------------------- | -------- | ---------- | | 0 | WD6002FFWX-68TZ4N0 | NCGW1TVV | 2016.09.24 | | 1 | WD6002FFWX-68TZ4N0 | NCGWP5SV | 2016.09.24 | | 2 | WD6002FFWX-68TZ4N0 | NCGWD6NV | 2016.09.24 | err on 2025.10.20 | 3 | HGST HUS726T6TALE6L4 | V7GESAHH | 2024.03.01 | Removed 2024.03.01 | 3 | WD6002FFWX-68TZ4N0 | NCGX7MTV | 2016.09.24 | ## vm2.sea.rg.net Hardware **[SuperMicro AS-2022G-URF 2RU Chassis](http://www.supermicro.com/Aplus/system/2U/2022/AS-2022G-URF.cfm)** - [H8DGU-F Motherboard](http://www.supermicro.com/Aplus/motherboard/Opteron6000/SR56x0/H8DGU-F.cfm) - [Two AMD Opteron 6320 Abu Dhabi 2.8GHz](http://www.amd.com/en-us/products/server/opteron/6000/6300) - [64GB RAMM as two sets of Kingston 32GB (4 x 8GB) 240-Pin DDR3 SDRAM ECC Unbuffered](http://www.kingston.com/us/memory/search/?partid=KVR16E11K4/32) - [32G, two sets of two DIMMs of Crucial Crucial 16GB (2 x 8GB) 240-Pin DDR3 SDRAM ECC Unbuffered DDR3L 1600 (PC3L 12800) Server Memory Model CT2KIT102472BD160B](http://www.crucial.com/usa/en/ct2kit102472bd160b) - [LSI MegaRAID SATA/SAS 9260-8i](http://www.lsi.com/products/raid-controllers/pages/megaraid-sas-9260-8i.aspx) - [Five HGST Ultrastar 7K3000 HUA723020ALA640 (0F12455) 2TB 7200 RPM 64MB Cache SATA 6.0Gb/s](http://www.hgst.com/hard-drives/enterprise-hard-drives/enterprise-sas-drives/ultrastar-7k3000) ### vm2.sea.rg.net Disk Drives ``` vm2.sea.rg.net:/home/randy# megacli -PDList -aALL | egrep '(Slot|^Device Id:|Inquiry)' Slot Number: 0 Device Id: 11 Inquiry Data: WD-WCC6N3FVKC2SWDC WD2002FFSX-68PF8N0 81.00A81 Slot Number: 1 Device Id: 10 Inquiry Data: MK0251YGKB56HAHitachi HUA723020ALA640 MK7OAA10 Slot Number: 2 Device Id: 9 Inquiry Data: MK0251YGKB4N2AHitachi HUA723020ALA640 MK7OAA10 Slot Number: 3 Device Id: 8 Inquiry Data: MK0251YGKB58LAHitachi HUA723020ALA640 MK7OAA10 Slot Number: 4 Device Id: 12 Inquiry Data: MJ1311YNG6XEVAHitachi HDS5C3030ALA630 MEAOA5C0 vm2.sea.rg.net:/home/randy# smartctl -a -d sat+megaraid,11 /dev/sda smartctl 6.6 2016-05-31 r4324 [x86_64-linux-4.9.0-13-amd64] (local build) Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Device Model: WDC WD2002FFSX-68PF8N0 Serial Number: WD-WCC6N3FVKC2S LU WWN Device Id: 5 0014ee 2687b471f Firmware Version: 81.00A81 User Capacity: 2,000,398,934,016 bytes [2.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 7200 rpm Form Factor: 3.5 inches Device is: Not in smartctl database [for details use: -P showall] ATA Version is: ACS-3 T13/2161-D revision 5 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Thu Aug 19 20:46:26 2021 UTC SMART support is: Available - device has SMART capability. SMART support is: Enabled ``` | LUN | Serial | Model | Size | | ---- | --------------- | ------------------ | -------- | | 0 | WCC6N3FVKC2S | WD2002FFSX-68PF8N0 | 1.818 TB | | 1 | MK0251YGKB56HA | MK7OAA10 | 1.818 TB | | 2 | MK0251YGKB4N2A | MK7OAA10 | 1.818 TB | | 3 | MK0251YGKB58LA | MK7OAA10 | 1.818 TB | | 4 | MJ1311YNG6XEVA | MEAOA5C0 | 2.728 TB | 2021.08.19 LUN0 drive MK0171YFK3TVGA removed ## vm3.sea.rg.net Hardware **[SuperMicro SuperServer 6019U-TRT](https://www.supermicro.com/products/system/1U/6019/SYS-6019U-TRT.cfm)** - [X10DRW-iT Motherboard](https://www.supermicro.com/products/motherboard/Xeon/C600/X10DRW-IT.cfm) - [Two Intel Ten Core 2.4Ghz Xeon 25MB cache 8.0GT/s QPI (90W) (E5-2640v4)](http://ark.intel.com/products/92984/Intel-Xeon-Processor-E5-2640-v4-25M-Cache-2_40-GHz) - 128G RAM - 8x16GB DDR4 2400Mhz 19200 ECC/REG - [Four HGST 6TB Enterprise SATA3 6Gb/s 7200RPM 128MB](https://www.hgst.com/products/hard-drives/ultrastar-7k6000) ### vm3.sea drives, we guess numbered left to right From `for i in a b c d; do smartctl -a /dev/sd$i | egrep 'Model|Serial|Capacity'; done` | Bay | Model | Serial | Capacity | Installed | | ---- | -------------------- | -------------- | -------- | ---------- | | 0 | HGST HUS726060ALE610 | K1J48AGD | 6TB | 2017.08.17 | | 1 | HGST HUS726060ALE610 | K1J2PTND | 6TB | 2017.08.17 | going bad | 2 | HGST HUS726060ALE610 | K8J6HV2N | 6TB | 2022.09.15 | | 3 | HGST HUS726060ALE610 | K1J46RHD | 6TB | 2017.08.17 | replaced: | 2 | HGST HUS726060ALA640 | AR11001EV17LLB | 6TB | 2022.09.15 | for i in b c d e; do echo $i; smartctl -a /dev/sd$i | egrep '(^Serial|Extended)'; done ## vm4.sea.rg.net Hardware - Dell Poweredge R630 Server 2xE5-2640V4 10-core 2.4GHz, 256GB RAM, H730 - Service tag: 6TL7MN2 - PERC H730 disk controller - Express Service Code 14849840990 - [How to configure the DELL PERC H700/H710/H730/H730P RAID controller](https://www.scaleway.com/en/docs/dedibox/hardware/how-to/configure-dell-perc-h700/) - [Findiing a DIMM](https://www.dell.com/support/manuals/nl-nl/poweredge-r630/r630_om_pub/memory?guid=guid-b3195109-414f-4e32-adba-f7c8d29c59a8&lang=en-us) | Bay | Model | Serial | Capacity | Installed | | ---- | ----------------------- | ---------------- | -------- | ---------- | | a | Samsung SSD 870 EVO 2TB | S6PNNL0T909370N | 2TB | 22.11.18 | | b | Samsung SSD 870 EVO 2TB | S6PNNL0T909374Z | 2TB | 22.11.18 | | c | Samsung SSD 870 EVO 2TB | S6PNNL0T708760T | 2TB | 22.11.18 | | d | Samsung SSD 870 EVO 2TB | S6PNNL0T906382W | 2TB | 22.11.18 | ## vm5.sea.rg.net (vm1 Replacement) * Dell Poweredge R640 server * Service Tag: CQPCHQ2 * 2x 10-Core 2.20 GHz Intel CPU's Installed (Silver 4114) * 192GB DDR4 (6x32GB) memory installed * PERC H730P Mini RAID controller. * 4 x Samsung 4TB EVO 870 SSDs * 2x power supplies, 750W each, 100-240V * 4x Gigabit RJ45 NIC network ports ## vm5 Disks for i in a b c d; do echo $i; smartctl -a /dev/sd$i | egrep '(^Serial|Model)'; done | Bay | Model | Serial | Capacity | Installed | | ---- | ----------------------- | ---------------- | -------- | ---------- | | a | Samsung SSD 870 EVO 4TB | S6PJNS0W307070P | 4TB | 23.05.21 | | b | Samsung SSD 870 EVO 4TB | S6PJNS0W307067B | 4TB | 23.05.21 | | c | Samsung SSD 870 EVO 4TB | S6PJNS0W307069T | 4TB | 23.05.21 | | d | Samsung SSD 870 EVO 4TB | S6PJNS0W307064R | 4TB | 23.05.21 | ## psg.rg.net - previously psg.com [SUPERMICRO AS-1012G-MTF 1U Rackmount](http://www.supermicro.com/Aplus/system/1U/1012/AS-1012G-MTF.cfm) [H8SGL-F mobo](http://www.supermicro.com/Aplus/motherboard/Opteron6000/SR56x0/H8SGL-F.cfm) From `for i in 0 1 2 3 4; do smartctl -a /dev/ada$i | egrep 'Model|Serial|Capacity'; done` | LUN | Model | Serial | Size | Installed | | ---- | ---------------------- | --------------- | ---- | --------------- | | 0 | WDC WD2000F9YZ-09N20L0 | WD-WCC1P0469969 | 2TB | | | 1 | WDC WD2005FBYZ-01YCBB3 | WD-WCC6NL9WJ9AV | 2TB | 2024.12.03 | | LUN | Model | Serial | Size | History | | ---- | ---------------------- | --------------- | ---- | --------------- | | 1 | WDC WD2005FBYZ-01YCBB1 | WD-WMC6N0F1F8SD | 2TB | fail 2024.11.17 | 1 | WDC WD2000F9YZ-09N20L0 | WD-WCC1P0648270 | 2TB | removed 2017.04.09 | | | WD-WCC1P0654846 | 2TB | replaced 2017.03.04 ## raid0.sea.rg.net - [5018R-WR Chassis + MoBo](https://www.supermicro.com/products/system/1u/5018/sys-5018r-wr.cfm) - [X10SRW-F Motherboard](https://www.supermicro.com/products/motherboard/Xeon/C600/X10SRW-F.cfm) - [Intel Xeon® Processor E5-2609 v4](https://ark.intel.com/products/92990/Intel-Xeon-Processor-E5-2609-v4-20M-Cache-1-70-GHz-) - Samsung DDR4 2133MHzCL15 16GB RegECC 2Rx4 (PC4 2133) Internal Memory M393A2G40DB0-CPB - FreeBSD USB key left in USB port ## r1.sea.rg.net Dell/FRR * Dell R630 GM12D42 Express Service Code: 36160563170 * 2x 10-Core 2.4 GHz Intel CPU's Installed (E5-2640V4) * 64G RAM 4x16G * PERC H730 Mini RAID controller * 4x 1 Gigabit RJ45 NIC * Intel X520-SR2 2-Port 10G SFP+ Ethernet, PCI-e * iDRAC8 ### r1.sea Haed Drives | Bay | Model | Serial | Capacity | Installed | | ---- | ------------------------ | ---------------- | -------- | ---------- | | a | Samsung SSD 870 EVO 512G | S6PXNS0L100210 | 512G | 2026.02.27 | | b | Samsung SSD 870 EVO 512G | S6PXNS0L101546 | 512G | 2026.02.27 | ### raid0.sea.rg.net Drive Bays From `for i in {0..3}; do smartctl -a /dev/ada$i | egrep 'Model|Serial|Capacity'; done` | LUN | Model | Serial | Capacity | Installed | | ---- | ---------------------- | --------------- | -------- | ---------- | | 0 | WDC WD60EFRX-68L0BN1 | WD-WX41DA5F88N9 | 6tb | 2018.12.09 | | 1 | WDC WD6004FRYZ-01CBJB0 | AQ01LV7M | 6tb | 2024.09.26 | | 2 | WDC WD60EFRX-68L0BN1 | WD-WX11D3678XTL | 6tb | 2018.12.09 | | 3 | HGST HUS726T6TALE6L4 | V70PUZ0K | 6tb | 2025.12.01 | ### Removed | LUN | Model | Serial | Capacity | Installed | Replaced | | ---- | ---------------------- | --------------- | -------- | ---------- | -------- | | 1 | WDC WD60EFRX-68L0BN1 | WD-WX11D363T2Y5 | 6tb | 2018.12.09 | 2024.07.10 | | 1 | WDC WD6004FRYZ-01CBJB0 | AQ00WHDM | 6tb | 2024.07.10 | 2024.09.26 | | 3 | WDC WD60EFRX-68L0BN1 | WD-WX41D75LN9KC | 6tb | 2018.12.09 | died 2025.11.28 ## Switches | name | mfr | model | ip sddress | | -------------- | ----- | -------------------- | ------------ | | sw0.sea.rg.net | Cisco | WS-C3750G-48PS | 147.28.0.253 | | sw3.sea.rg.net | Cisco | Nexus3064 48x10GE +4 | 147.28.0.239 | | sw4.sea.rg.net | Cisco | Nexus3064 48x10GE +4 | 147.28.0.238 | ### Removed | sw1.sea.rg.net | SMC | SMC8024L2 | 147.28.0.252 | | -------------- | ----- | -------------- | ------------ | | sw2.sea.rg.net | Cisco | WS-C3750G-24PS | 147.28.0.246 | ## Miscelaneous Data ### Spare Drives | | | | | | ---------------- | ------------ | -------- | ---- | | spares in westin | | | | | | | | | | HGST | H3D30003254S | YNG1E3ZC | 3TB | | Seagate | ST31000528AS | 6VPCVN1Y | 1TB | | Seagate | ST3750640A8 | 3QD06D5B | 750G | | HGST | 118032816 | YFJLBZ5A | 2TB | ### r1.sea gigether pic left to right | port | to | medium | | -------- | ------ | --------- | | ge-0/0/0 | LAN | copper | | ge-0/0/1 | six | fiber sfp | | | unused | copper sfp| | | unused | | ## New Switching ![180802.arrcus-sea.jpg](../pics/180802.arrcus-sea.jpg) ## Decommmissioned ``` SIX 1G to r1.sea.rg.net (decomissioned) A.OF.12.02 OCXS2.A06 MR5A.04.A06 MR5D.09.C06 (Patch Panel in meet-me-room) ``` ## Old Lunavi Info Lunavi 2001 6th Avenue, Suite 2402 Seattle, WA 98121 Lunavi Support 206 777 9988 24x7@ccom.net 206-854-3444 and 206-353-5558 --- 2025.12.01
